Product Description

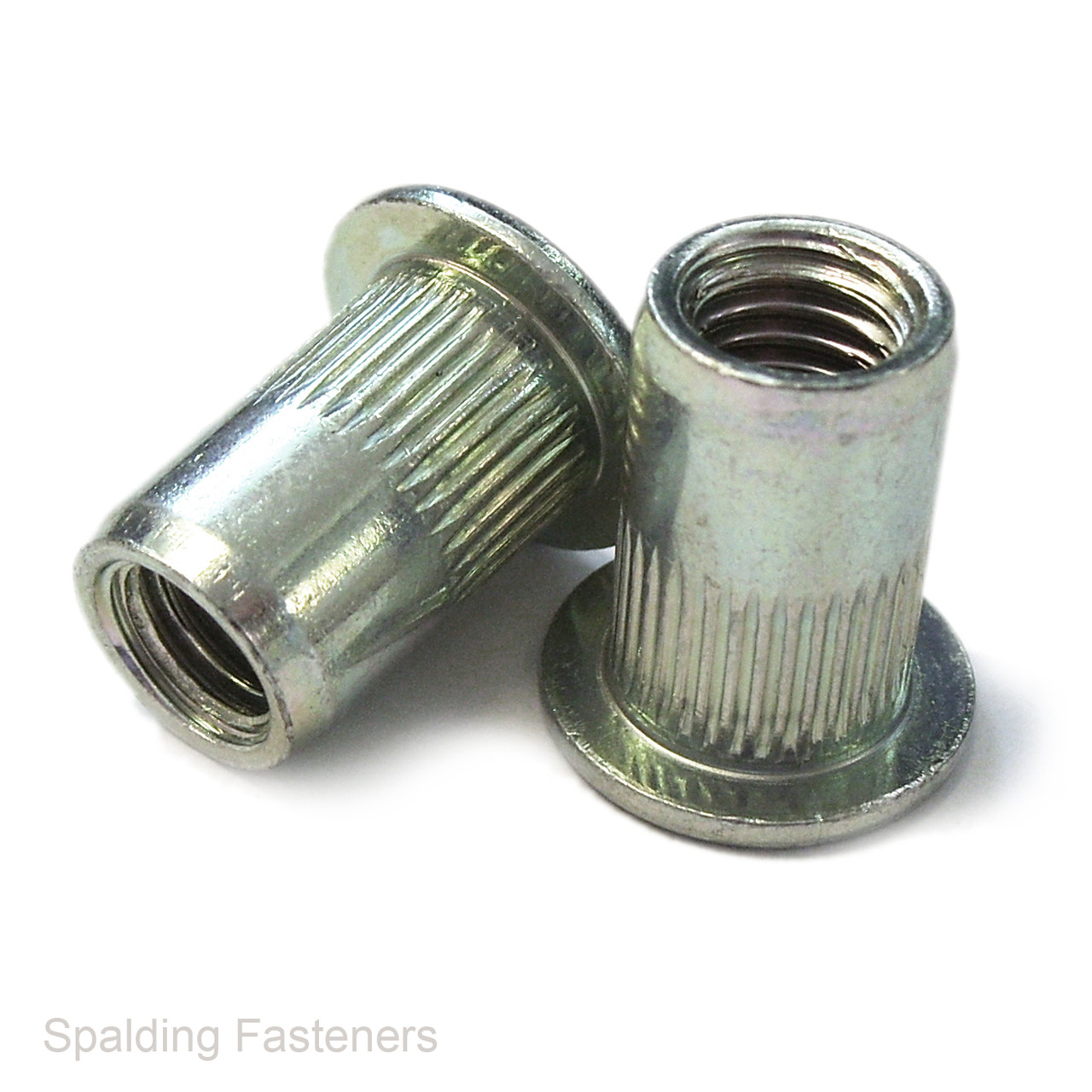

Metric zinc plated steel rivnut rivet nuts for creating strong internal threads in thin sheet materials where access is only available from one side. These nut rivets are ideal for adding a reusable threaded fixing point in sheet metal, panels, box section and other thin materials.
Suitable for automotive, fabrication, electrical and general engineering applications, these steel rivet nuts are available in a range of metric coarse thread sizes for workshop, trade and bulk use. Ideal for repairs, new installations and applications where a strong threaded insert is needed in thin material.
Please select the required thread size and pack quantity from the dropdown options. Specifications are intended as a guide only, so if dimensions are critical it is best to check before ordering.
Material: Zinc Plated Steel
Thread Type: Metric Coarse
Application: Automotive / Fabrication / Electrical / Engineering
| A | B | C | D | E | F |
| 3mm | 10mm | 6.8mm | 0.8mm | 0.5mm | 0.5 - 3mm |
| 4mm | 10mm | 8.7mm | 0.8mm | 0.7mm | 0.3 - 3mm |
| 5mm | 11mm | 9.8mm | 0.8mm | 0.8mm | 0.3 - 3mm |
| 6mm | 14mm | 12.4mm | 1.2mm | 1.0mm | 0.5 - 3mm |
| 8mm | 16mm | 15.8mm | 1.4mm | 1.25mm | 0.5 - 3mm |
| 10mm | 17mm | 18.8mm | 1.9mm | 1.5mm | 0.5 - 3mm |
| 12mm | 23mm | 22.8mm | 2mm | 1.75 | 1 - 4mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
