Product Description

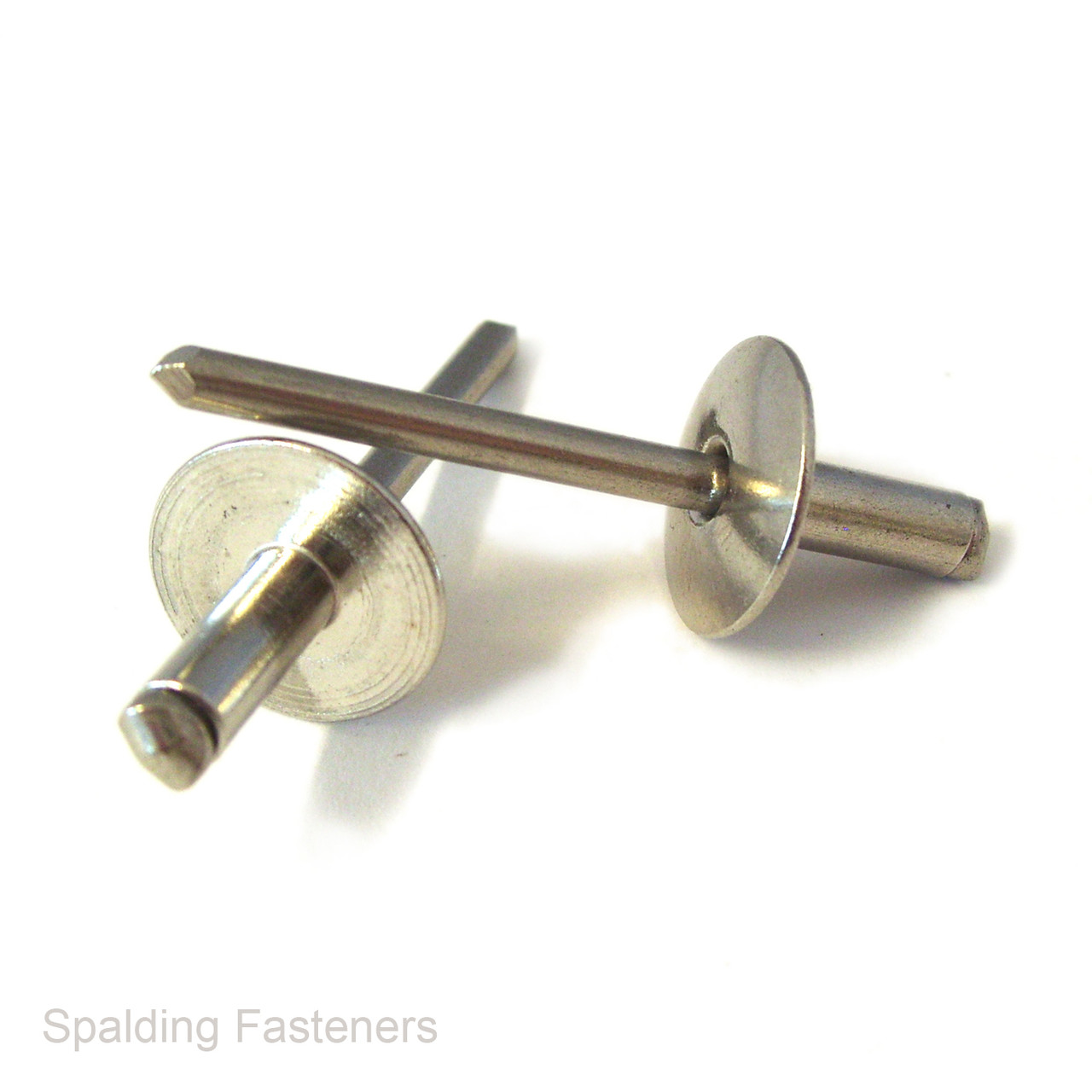

3.2mm A2 Stainless Steel Large Flange Pop Rivets
These 3.2mm large flange pop rivets feature an A2 stainless steel body and steel pin for permanent blind fastening. The wide head spreads the clamping load over a larger surface area, helping to reduce pull-through on thin panels and softer facing materials.
Blind rivets are installed from one side of the joint, making them useful where access behind the assembly is restricted. During setting, the riveting tool pulls the pin to deform the body behind the materials and clamp them together.
Key Features
- Large flange head: provides a broad bearing surface against the accessible face of the joint.
- A2 stainless steel body: offers corrosion resistance for general fastening applications. **PARENT2688 — 3.2mm Stainless Steel Large Flange Pop Rivets** The listing specifies an **A2 stainless steel body with a steel pin**. The rewrite below retains that material distinction and the listed dimensions. :chatgpt-content-reference{index="1"} **Page Title / Product Name** 3.2mm Stainless Steel Large Flange Pop Rivets **SEO / Meta Title** 3.2mm Stainless Large Flange Rivets | Spalding **Meta Description** Shop 3.2mm stainless steel large flange pop rivets with steel mandrels. 10mm body length, 9.5mm flange and 5–7mm grip range. Buy from Spalding Fasteners. **Search Keywords** 3.2mm rivets, stainless steel pop rivets, large flange rivets, blind rivets, 3.2 x 10mm rivets, A2 stainless rivets, steel mandrel, panel rivets **Meta Keywords** 3.2mm stainless steel rivets, large flange pop rivets, A2 blind rivets, 3.2 x 10mm rivets, stainless body steel mandrel **Product Description — HTML** ```html
3.2mm Stainless Steel Large Flange Pop Rivets
These 3.2mm large flange pop rivets have an A2 stainless steel body and steel mandrel for permanent blind fastening. The wide head spreads the clamping load across a larger area, helping to reduce pull-through on thin or softer panels.
Blind rivets are installed from one side of the assembly, making them useful where access behind the joint is restricted. During setting, the tool pulls the mandrel to form the rivet body against the rear of the materials before the mandrel breaks.
Key Features
- Large flange head: provides a broad bearing surface on the accessible side of the joint.
- A2 stainless steel body: offers corrosion resistance for general fastening applications.
- Steel mandrel: draws the rivet body into shape during installation.
- Single-sided installation: allows fixing where the rear of the assembly cannot be reached with a tool.
- Permanent fastening: joins components without a separate nut or threaded hole.
Product Specifications
Fastener Type Blind pop rivet Head Style Large flange Body Material A2 stainless steel Mandrel Material Steel Size and Dimensions
Body Diameter 3.2mm Body Length 10mm Flange Diameter 9.5mm Grip Range 5–7mm Hole Diameter 3.3mm Grip range is the combined thickness of the materials being joined. Body length is measured beneath the head and is not the same as grip range. Dimensions are provided as a guide; please contact us before ordering if a measurement is critical.
Typical Applications
- Sheet metal panels and enclosure assembly.
- Panel fastening where a wider head bearing area is required.
- General fabrication, maintenance and repair.
- Assemblies with restricted access behind the joint.
Choosing and Installing Your Rivets
Measure the total thickness of the joint and check that it falls within the specified grip range. Ensure there is enough space for the flange to sit flat and sufficient clearance behind the joint for the rivet to form.
Prepare aligned, deburred holes and hold the components firmly together. Use a riveting tool rated for stainless steel rivets of this diameter, fitted with the correct nosepiece.
When assessing suitability for damp or corrosive environments, consider both the stainless steel body and the steel mandrel, along with the materials being joined. For more information about stainless materials, read our A2 and A4 stainless steel guide.
Select your required options and pack quantity above to order from Spalding Fasteners.
