Product Description

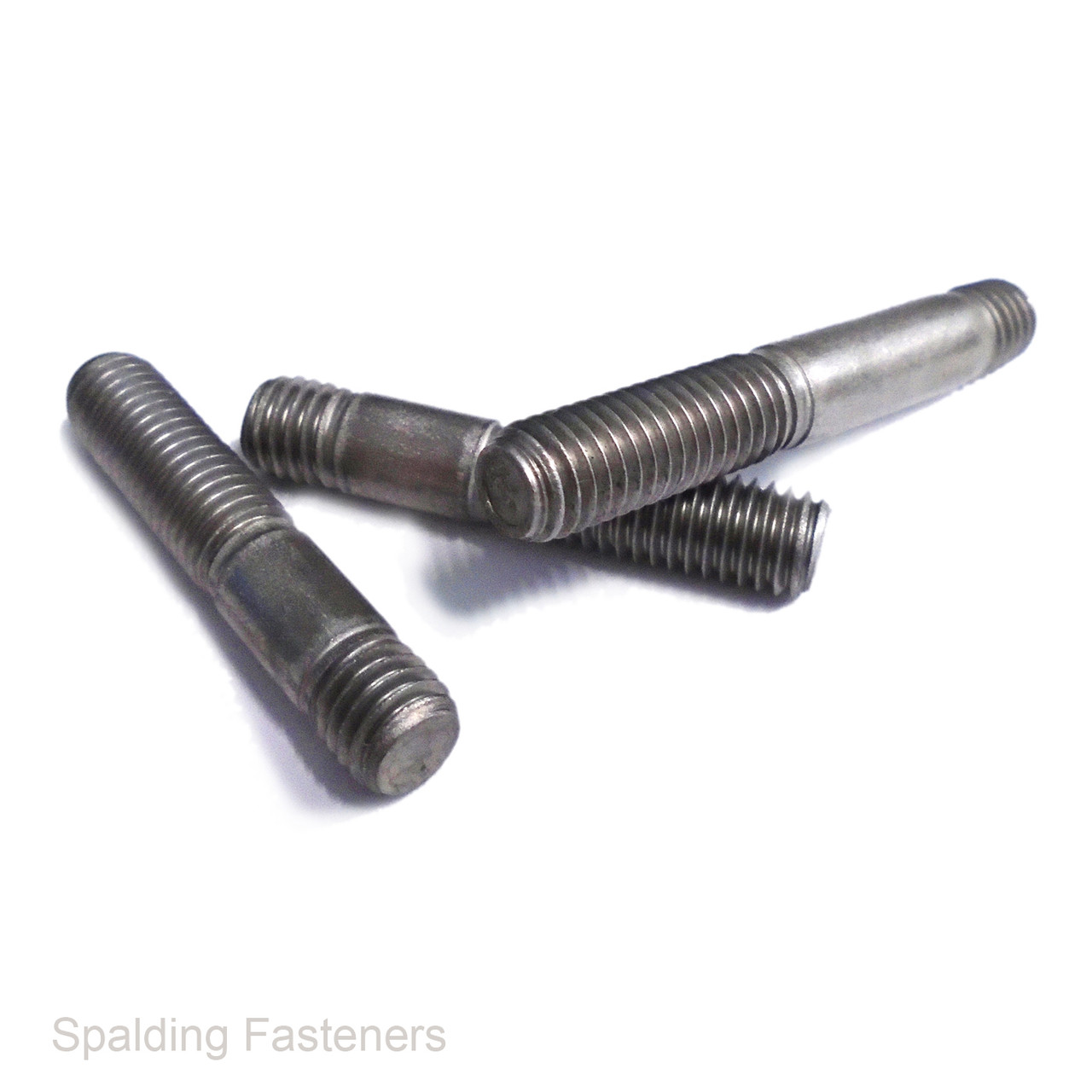

M6 A2 Stainless Steel Double End Studs – DIN 938
Please note small threaded end is not measured in length (6mm)
M6 double end studs manufactured from A2 stainless steel to DIN 938, featuring a metric coarse thread with a 1mm pitch. Each stud has a threaded section at both ends, separated by a plain central shank.
The short threaded end screws into a matching tapped component, leaving the opposite end available for securing a part with a nut. This arrangement allows the fitted component to be removed while the stud remains in place.
Key Features
- A2 stainless steel: corrosion resistance for general engineering, equipment assembly and maintenance.
- DIN 938 design: double end stud with a nominal screw-in thread length equal to the thread diameter.
- M6 metric coarse thread: 6mm nominal diameter with a 1mm pitch.
- 6mm screw-in end: short threaded section for fitting into a tapped component.
- Plain central shank: unthreaded section between the two threaded ends.
- Choice of lengths: 20mm, 25mm, 30mm, 35mm, 40mm and 50mm nominal lengths.
Technical Specifications
| Product Type | Double end threaded stud |
|---|---|
| Standard | DIN 938 |
| Material | A2 stainless steel |
| Thread Size | M6 |
| Thread Pitch | 1.00mm – metric coarse |
| Nominal Screw-in Thread Length | 6mm |
Length Guide
The selected length does not include the short 6mm screw-in end. It covers the plain shank and the threaded section used for the nut. Add 6mm to the selected length to calculate the nominal overall length.
| Selected Size | Screw-in End | Nominal Overall Length |
|---|---|---|
| M6 x 20mm | 6mm | 26mm |
| M6 x 25mm | 6mm | 31mm |
| M6 x 30mm | 6mm | 36mm |
| M6 x 35mm | 6mm | 41mm |
| M6 x 40mm | 6mm | 46mm |
| M6 x 50mm | 6mm | 56mm |
Typical Applications
Used for securing covers, brackets, machine housings and other removable components to tapped parts where an M6 DIN 938 stud is specified.
Choosing the Correct Stud
Check that the tapped hole and mating nut both have an M6 x 1mm thread. Choose a length that accommodates the component thickness, any washer and sufficient nut engagement.
Browse our nuts and washers to complete your assembly. For help identifying thread sizes, visit our Thread Data Guide.
Ordering: select your required stud length and pack quantity from the available options.
