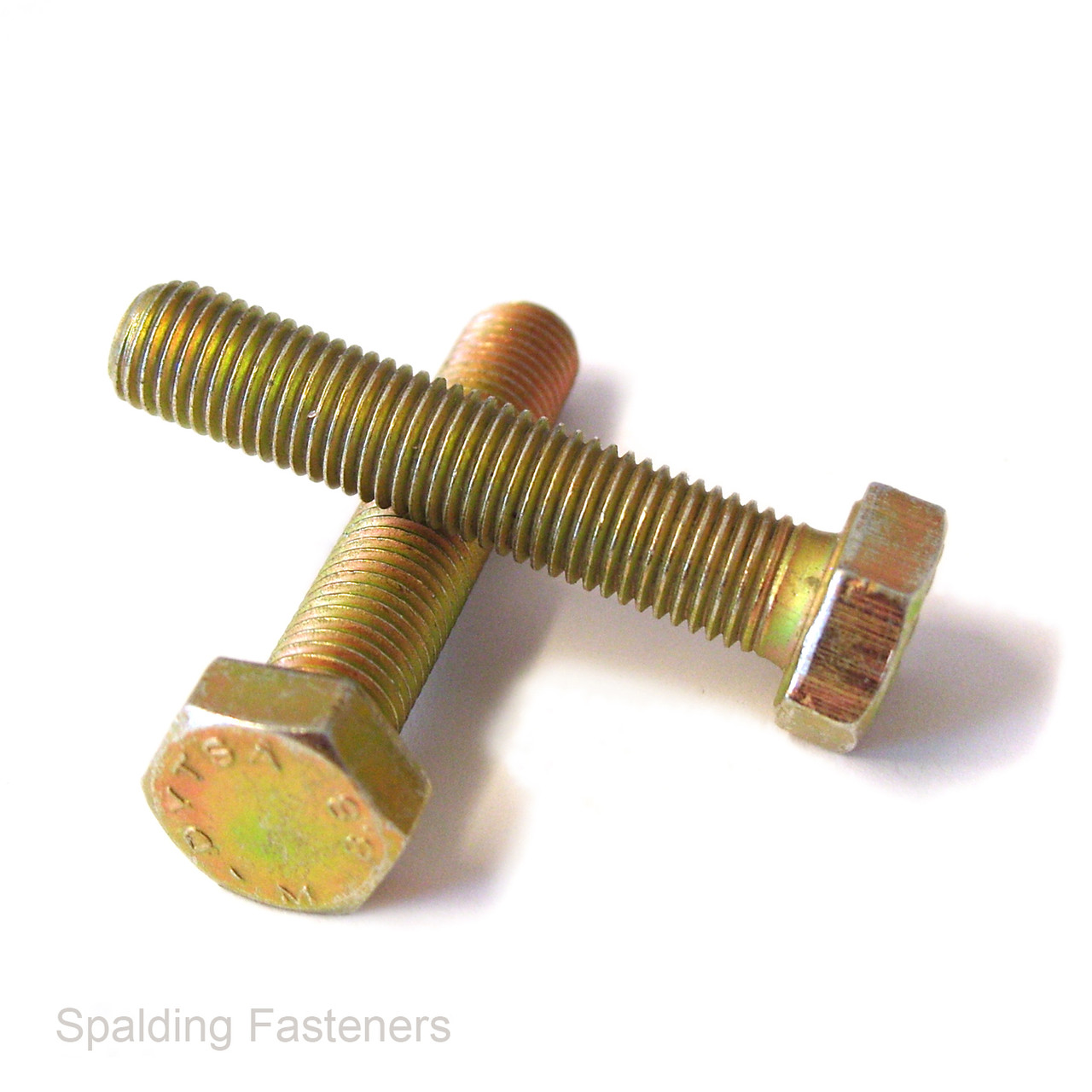

5/16" UNF Grade 8 Hex Head Set Screws – Yellow Zinc
These 5/16" UNF Grade 8 hex head set screws are made from high tensile steel with a yellow zinc plated finish. The fully threaded shank provides thread engagement along the screw length, and the external hexagon head can be tightened with a 1/2" spanner or socket.
Each set screw has a 5/16"-24 UNF fine thread, with 24 threads per inch. Choose the required imperial length and pack size from the product options.
Key Features
- SAE Grade 8 strength: for applications specifying this imperial fastener grade.
- Yellow zinc plated steel: a protective plated finish.
- UNF fine thread: 5/16" nominal diameter with 24 threads per inch.
- Fully threaded: thread runs along the shank.
- Hexagon head: accepts a 1/2" spanner or socket.
- Imperial options: select the required length and pack quantity.
Technical Specifications
| Specification | Details |
|---|---|
| Product type | Fully threaded hexagon head set screw |
| Material | High tensile steel |
| Strength grade | SAE Grade 8 |
| Dimensional standard | ASME B18.2.1 |
| Finish | Yellow zinc plated |
| Thread size | 5/16"-24 UNF |
| Threads per inch | 24 TPI |
| Thread pitch equivalent | Approximately 1.058 mm |
| Nominal thread diameter | 5/16" / 7.94 mm |
| Thread coverage | Fully threaded |
| Spanner or socket size | 1/2" across flats |
| Length measurement | From the underside of the head to the tip |
Applications
Suitable for machinery maintenance, equipment assembly, brackets, housings and vehicle restoration where a 5/16"-24 UNF Grade 8 fully threaded fastener is specified. Confirm the required length, thread engagement and joint specification before fitting.
