Product Description

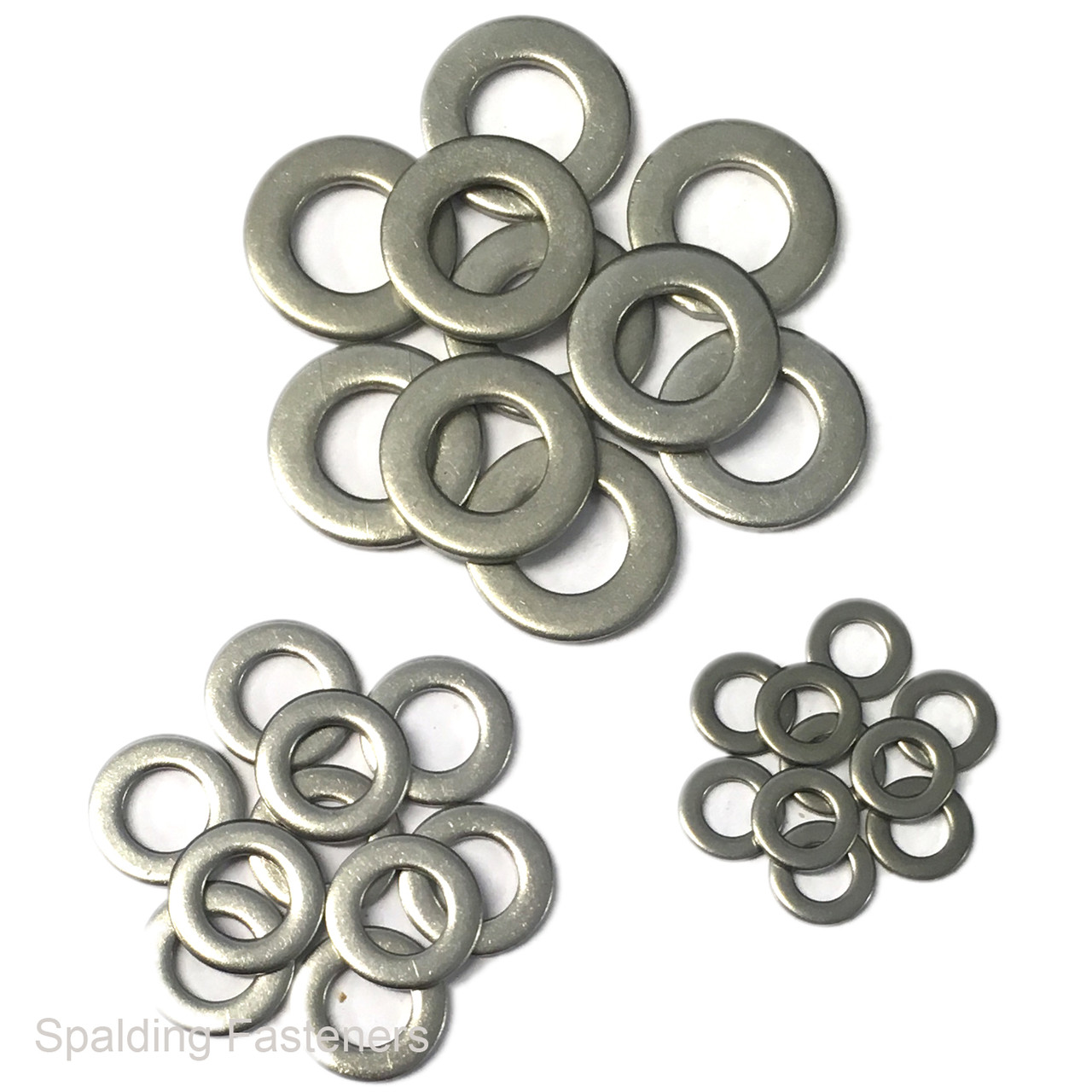

288 Piece A4 Stainless Steel Metric Flat Washer Kit
This assorted kit contains 288 metric flat washers in A4 stainless steel across seven sizes, from M4 to M14. A4 stainless steel offers good corrosion resistance for outdoor, coastal and marine applications. Choose the complete compartment box or a refill pack without the box.
Kit Contents
| Washer size | Quantity |
|---|---|
| M4 | 70 |
| M5 | 70 |
| M6 | 50 |
| M8 | 40 |
| M10 | 30 |
| M12 | 20 |
| M14 | 8 |
| Total | 288 |
Washer Dimensions
Dimensions for the A4 stainless steel standard-series washers:
| Size | Inside diameter (mm) | Outside diameter (mm) | Thickness (mm) |
|---|---|---|---|
| M4 | 4.30–4.48 | 8.64–9.00 | 0.70–0.90 |
| M5 | 5.30–5.48 | 9.64–10.00 | 0.90–1.10 |
| M6 | 6.40–6.62 | 11.57–12.00 | 1.40–1.80 |
| M8 | 8.40–8.62 | 15.57–16.00 | 1.40–1.80 |
| M10 | 10.50–10.77 | 19.48–20.00 | 1.80–2.20 |
| M12 | 13.00–13.27 | 23.48–24.00 | 2.30–2.70 |
| M14 | 15.00–15.27 | 27.48–28.00 | 2.30–2.70 |
Product Details
- Type: Metric flat washers, DIN 125A type
- Material: A4 stainless steel
- Washer series: Standard, 200HV
- Sizes included: M4, M5, M6, M8, M10, M12 and M14
- Total quantity: 288 washers

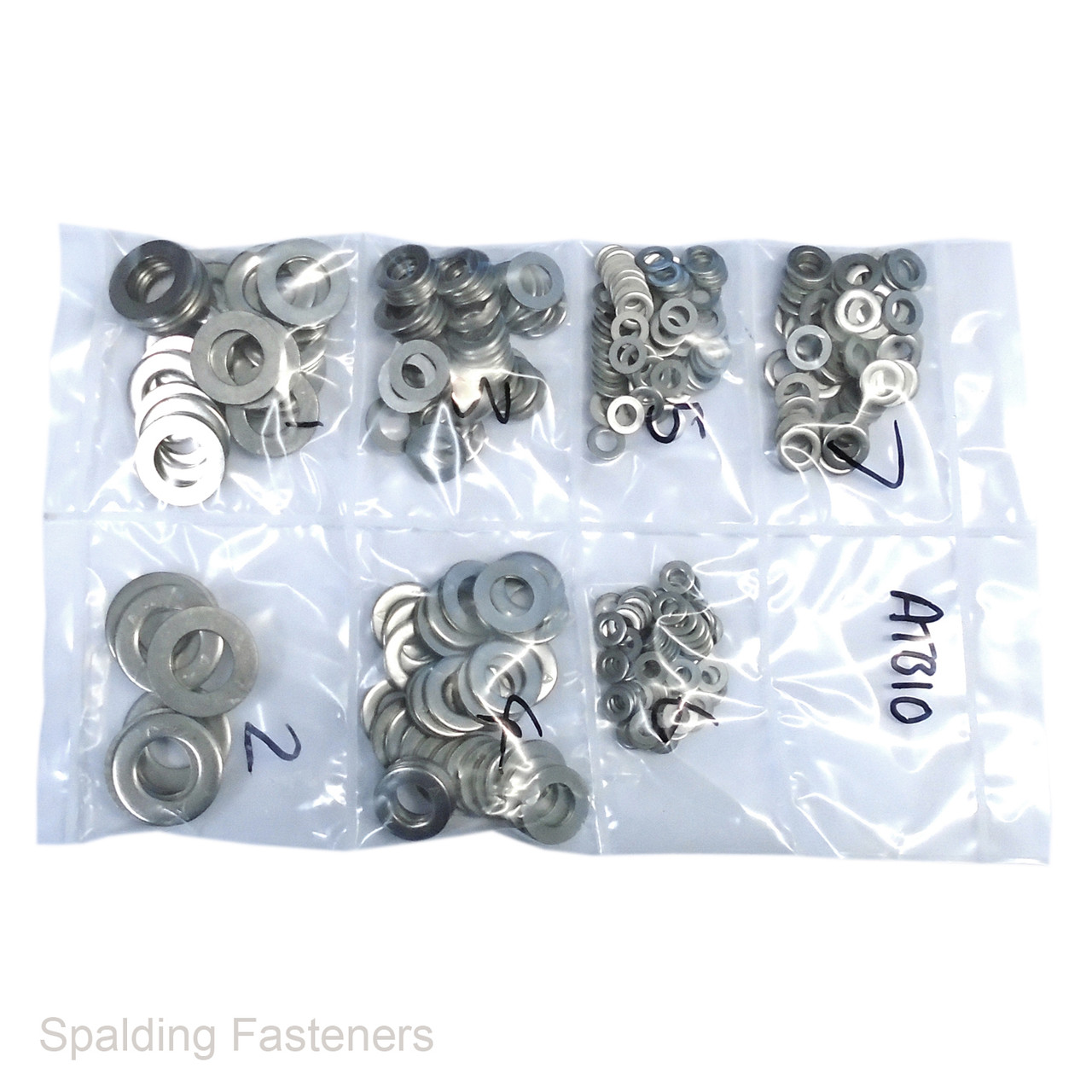

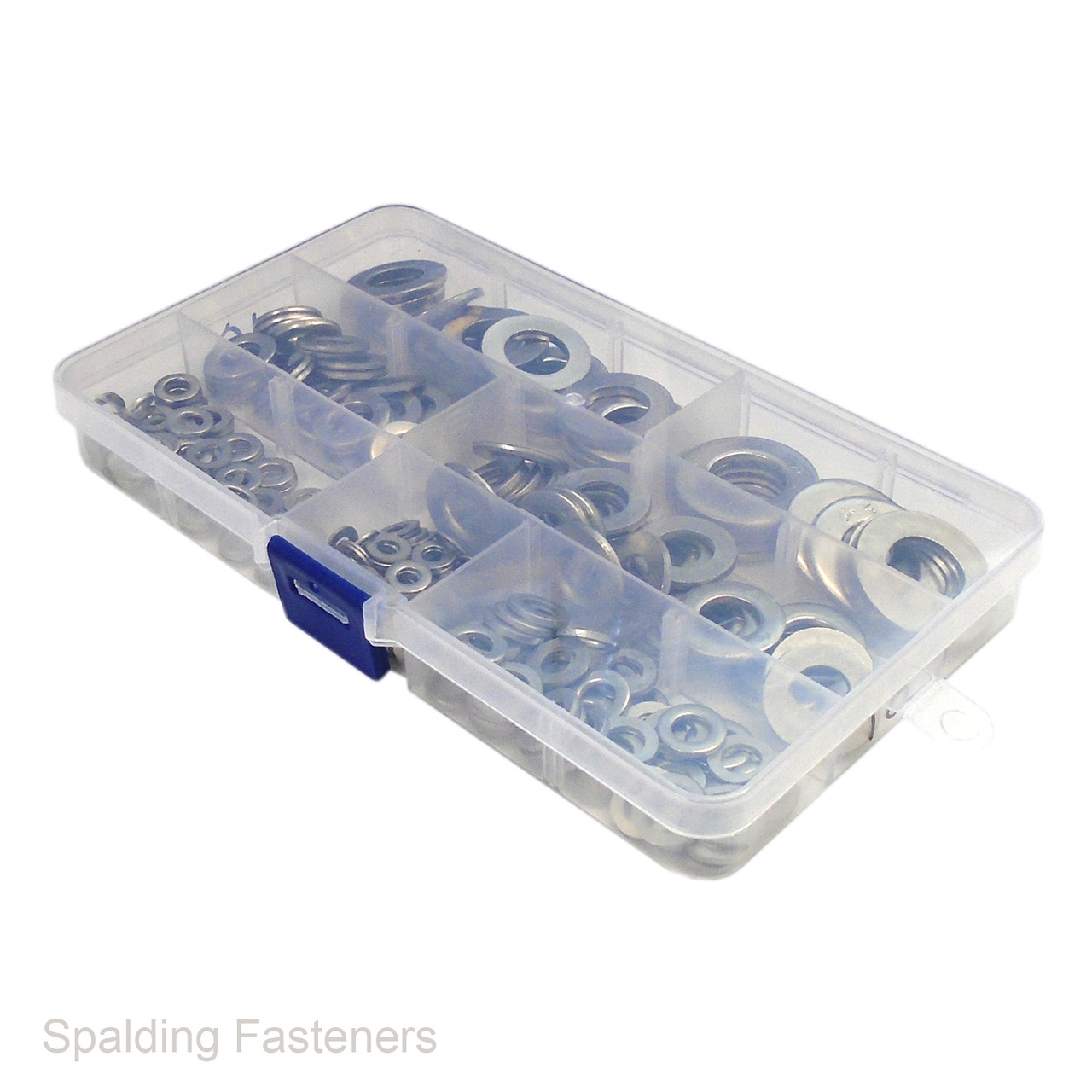

- Pack options: Compartment storage box or refill pack without the box
Flat washers spread the clamping load beneath a nut or bolt head and help protect the surface being fastened. Select a washer size to suit the fastener diameter.
