800 Piece A2 Stainless Flat & Spring Washer Kit – M3 to M10
A practical metric washer assortment for repairs, maintenance and assembly. Includes DIN 125 Form A flat washers and DIN 7980 square section split spring washers in six sizes.

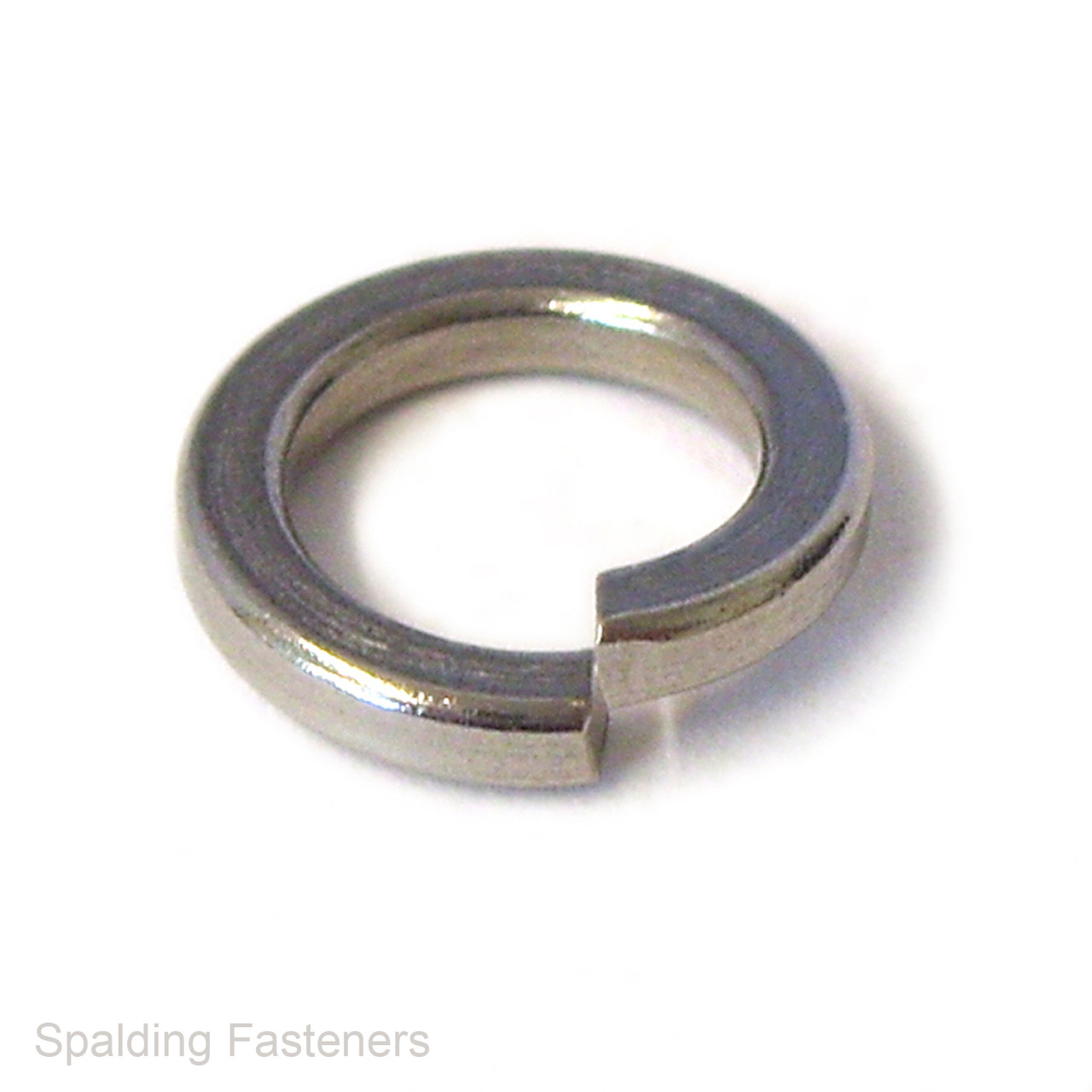

Flat washers spread the load beneath a bolt head or nut and help protect the mating surface. The spring washers have a split design with a square section.
Specifications
- Material: A2 stainless steel
- Flat washers: DIN 125 Form A
- Spring washers: DIN 7980 square section
- Sizes: M3, M4, M5, M6, M8 and M10
- Total contents: 800 washers
Kit Contents
| Nominal Size | Flat Washers | Spring Washers |
|---|---|---|
| M3 | 100 | 100 |
| M4 | 100 | 100 |
| M5 | 75 | 75 |
| M6 | 75 | 75 |
| M8 | 25 | 25 |
| M10 | 25 | 25 |
DIN 125 Flat Washer Dimensions
Nominal dimensions in millimetres; manufacturing tolerances apply.
| Size | Internal Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| M3 | 3.2 | 7 | 0.5 |
| M4 | 4.3 | 9 | 0.8 |
| M5 | 5.3 | 10 | 1.0 |
| M6 | 6.4 | 12 | 1.6 |
| M8 | 8.4 | 16 | 1.6 |
| M10 | 10.5 | 20 | 2.0 |
DIN 7980 Spring Washer Dimensions
Dimensions in millimetres. Section thickness is the thickness of the washer material, rather than its overall free height.
| Size | Internal Diameter Range | Maximum Outside Diameter | Section Thickness |
|---|---|---|---|
| M3 | 3.1–3.4 | 5.6 | 1.0 |
| M4 | 4.1–4.4 | 7.0 | 1.2 |
| M5 | 5.1–5.4 | 8.8 | 1.6 |
| M6 | 6.1–6.5 | 9.9 | 1.6 |
| M8 | 8.1–8.5 | 12.7 | 2.0 |
| M10 | 10.2–10.7 | 16.0 | 2.5 |
Packaging Options

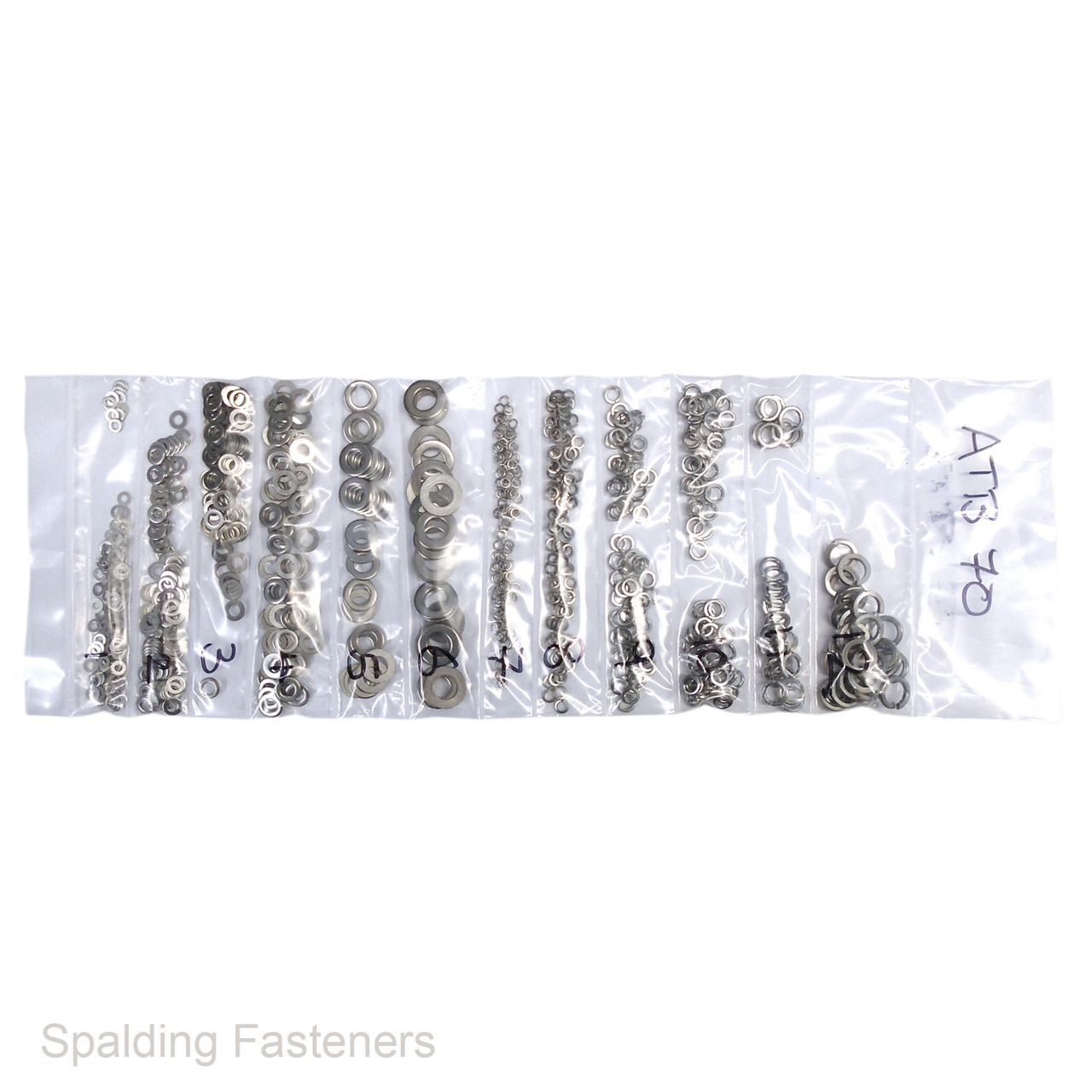

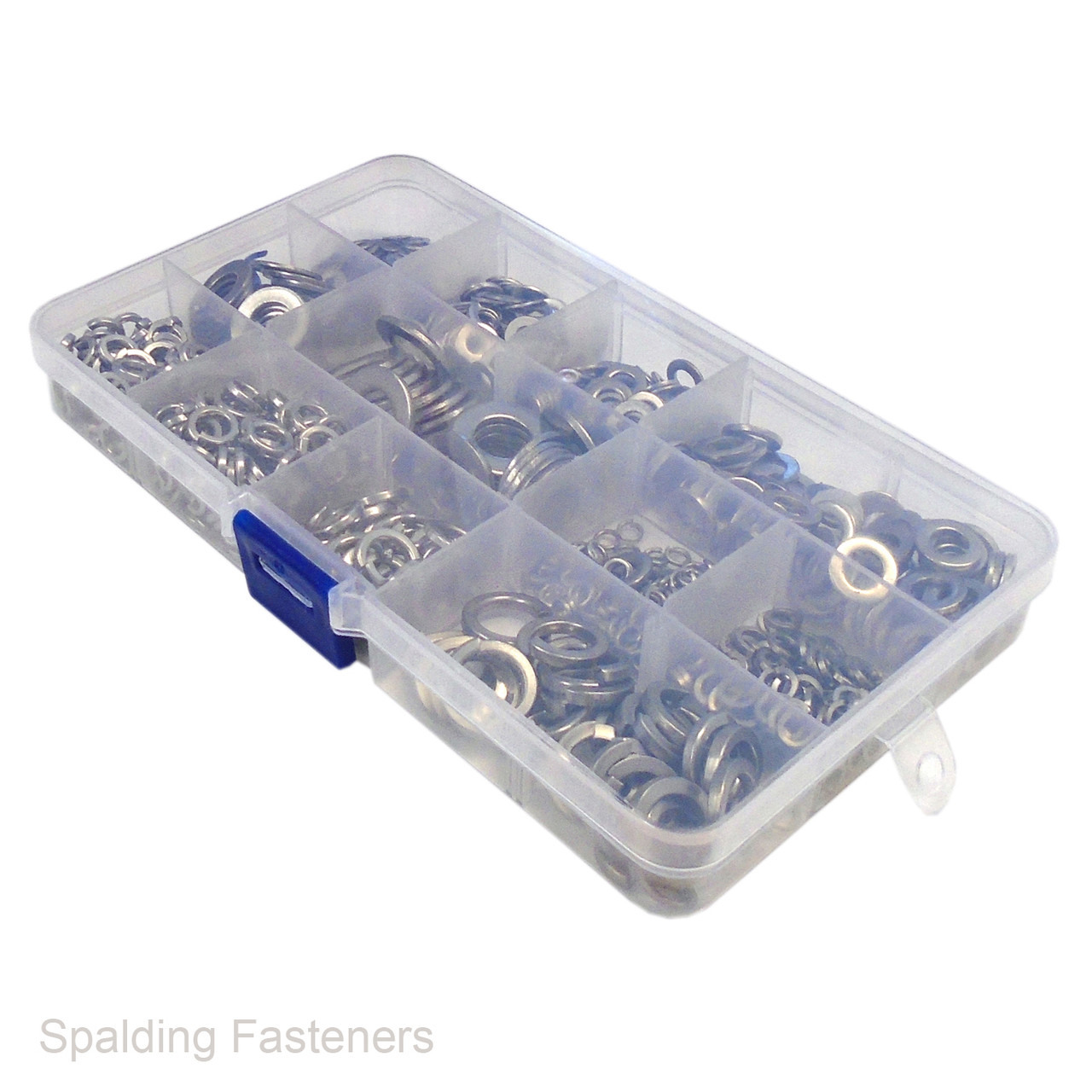

Choose a plastic storage box with dividers and a clip-down lid, or a refill pack supplied without a box.
