Product Description
A2 Stainless Steel Pan Pozi Self Tapping Screw Assortment
An assortment of A2 stainless steel pan head Pozi self tapping screws in No.10, No.12 and No.14 sizes. Includes eight size combinations, available as a boxed kit or refill pack.
Technical Specifications
- Material: A2 stainless steel
- Head style: Pan head
- Drive: Pozi
- Thread and point: Type AB self tapping
- Standard: DIN 7981CZ
- Length measurement: Beneath the head to the tip
Assortment Contents
| Screw Size | Nominal Diameter x Length | Quantity |
|---|---|---|
| No.10 x 1/2 inch | 4.8 x 13mm | 16 |
| No.10 x 1 inch | 4.8 x 25mm | 18 |
| No.10 x 1 1/2 inch | 4.8 x 38mm | 16 |
| No.12 x 1/2 inch | 5.5 x 13mm | 18 |
| No.12 x 1 inch | 5.5 x 25mm | 18 |
| No.12 x 1 1/2 inch | 5.5 x 38mm | 12 |
| No.14 x 1/2 inch | 6.3 x 13mm | 25 |
| No.14 x 1 inch | 6.3 x 25mm | 10 |
Head Dimensions and Drive Sizes
| Size | Head Diameter | Head Height | Pozi Bit |
|---|---|---|---|
| No.10 – 4.8mm | 9.14–9.50mm | 3.25–3.55mm | PZ2 |
| No.12 – 5.5mm | 10.37–10.80mm | 3.65–3.95mm | PZ3 |
| No.14 – 6.3mm | 12.07–12.50mm | 4.25–4.55mm | PZ3 |
Packaging Options

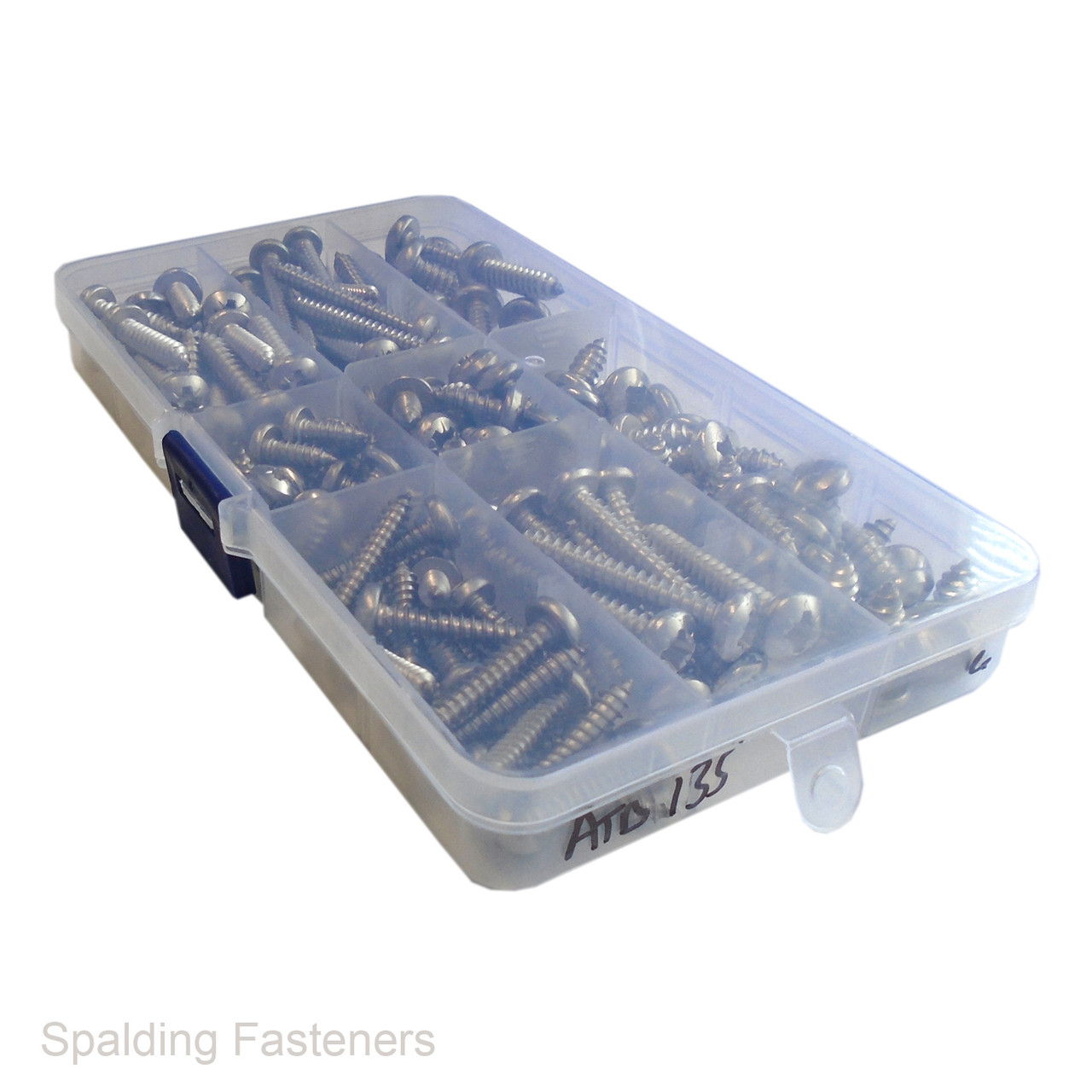

- Boxed kit: Plastic storage box with dividers and a clip-down lid.

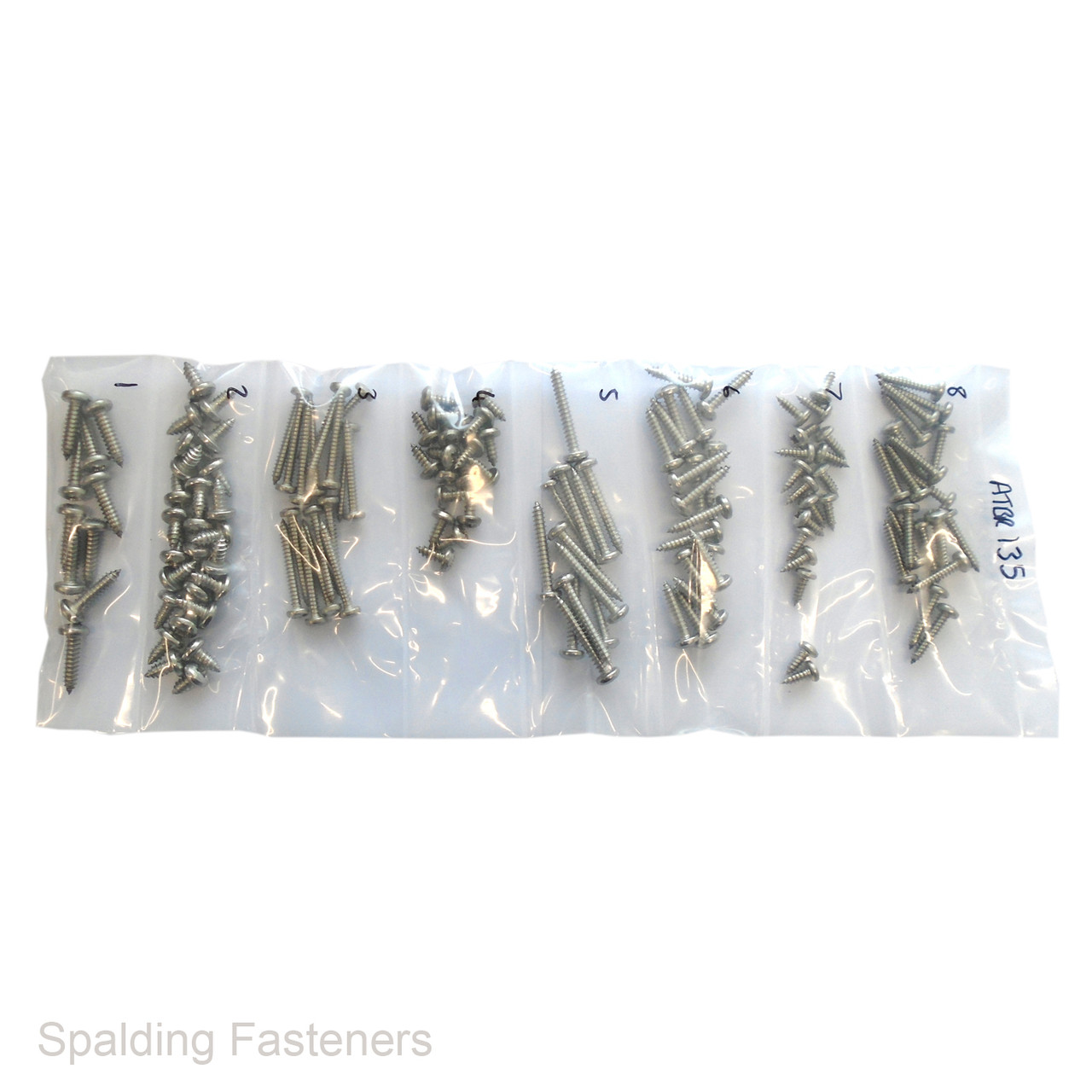

- Refill pack: Supplied without a box.
Use a suitably sized pilot hole for the material and select the correct Pozi bit before installation.
