Product Description

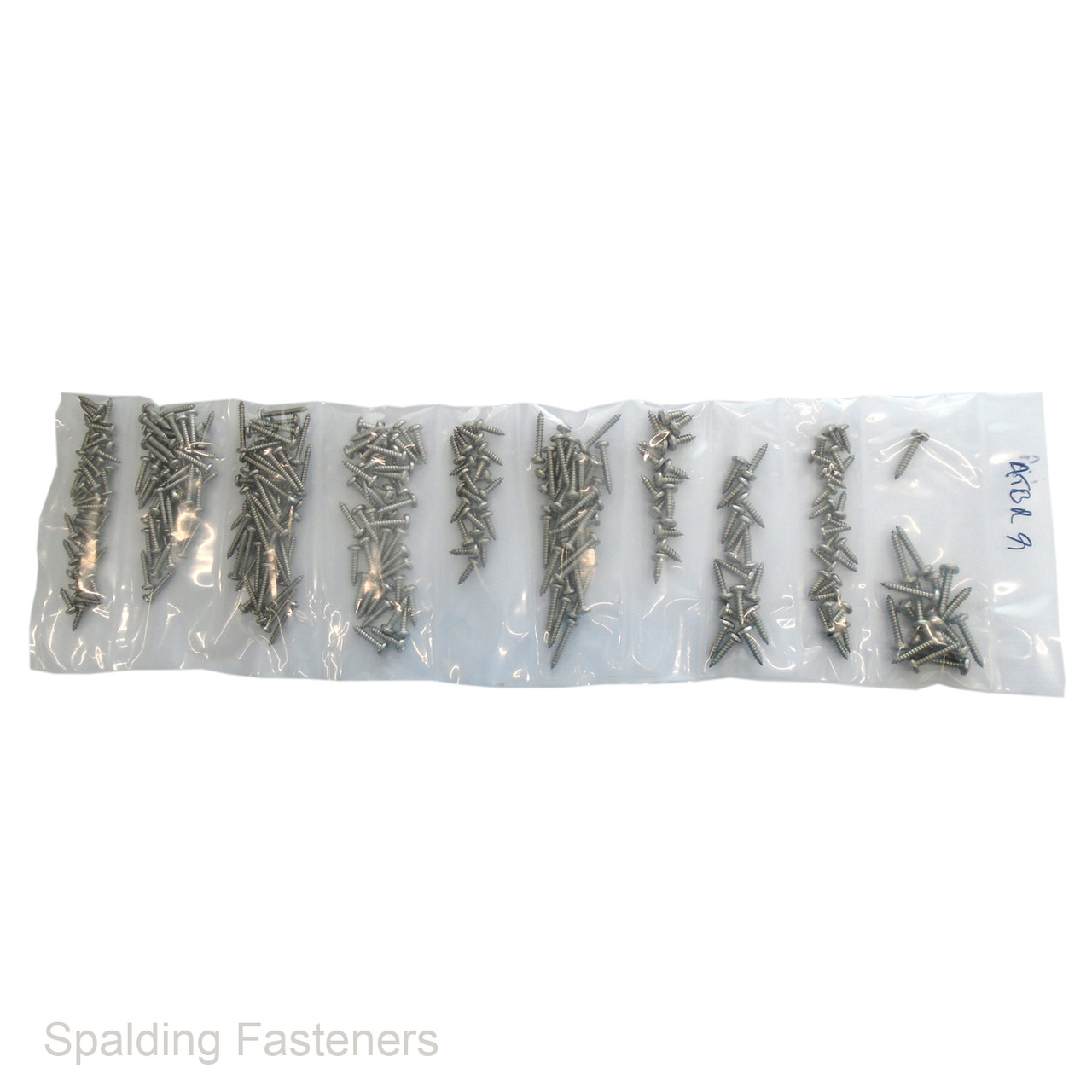

A2 Stainless Pan Pozi Self Tapping Screw Kit – No.6 to No.10
A practical assortment of A2 stainless steel pan head self tapping screws for repairs, panel fixing and general assembly. Includes nine sizes across No.6, No.8 and No.10 diameters.
The pan heads provide a raised bearing surface, while the PZ2 Pozi drives allow installation with a matching screwdriver or bit.
Specifications
- Material: A2 stainless steel
- Type: Self tapping screws
- Standard: DIN 7981

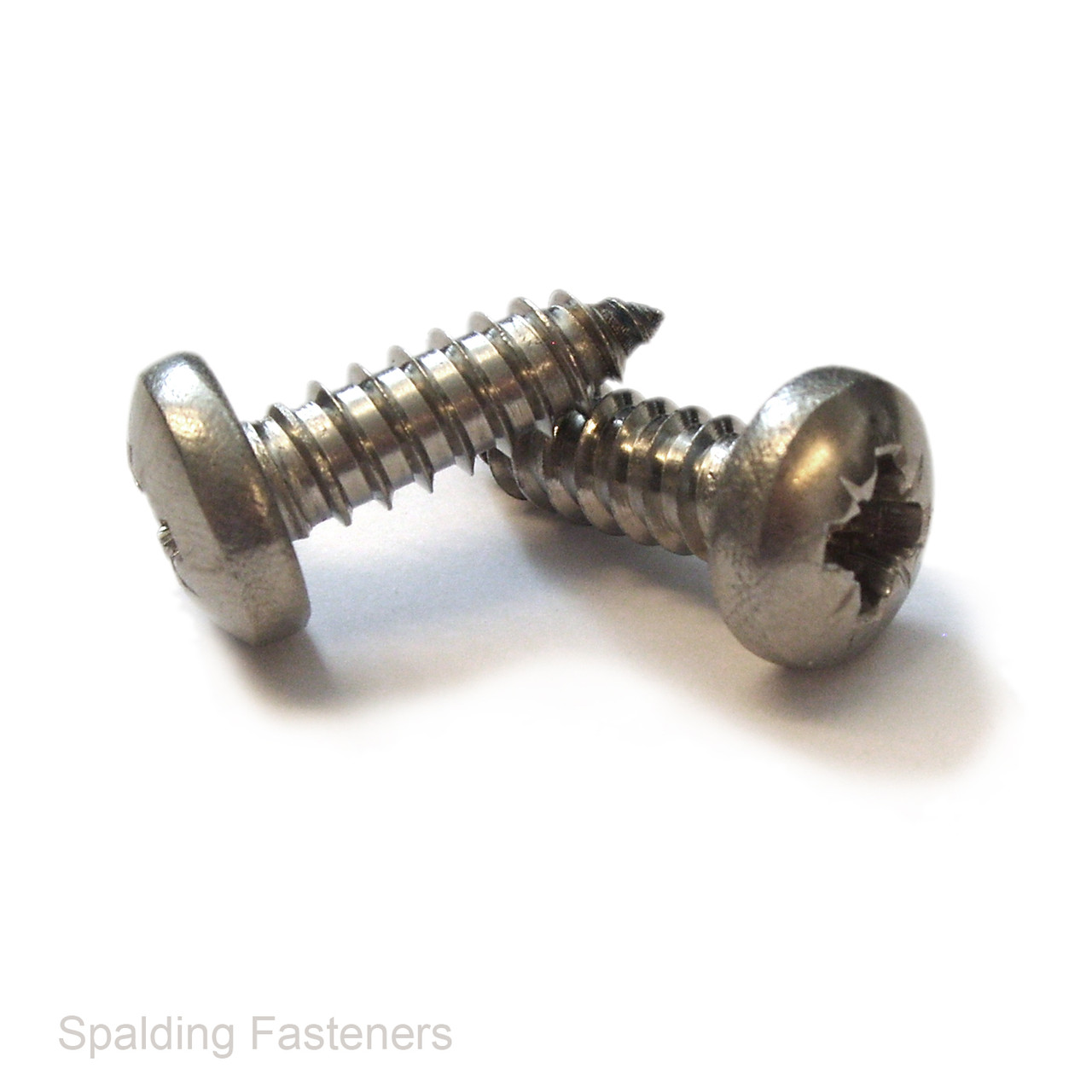

- Head style: Pan
- Drive: PZ2 Pozi
- Diameters: No.6 / 3.5mm, No.8 / 4.2mm and No.10 / 4.8mm
- Lengths: 13mm, 19mm and 25mm
Kit Contents
| Imperial Size | Metric Size | Quantity |
|---|---|---|
| No.6 x 1/2" | 3.5 x 13mm | 50 |
| No.6 x 3/4" | 3.5 x 19mm | 50 |
| No.6 x 1" | 3.5 x 25mm | 40 |
| No.8 x 1/2" | 4.2 x 13mm | 40 |
| No.8 x 3/4" | 4.2 x 19mm | 40 |
| No.8 x 1" | 4.2 x 25mm | 35 |
| No.10 x 1/2" | 4.8 x 13mm | 15 |
| No.10 x 3/4" | 4.8 x 19mm | 15 |
| No.10 x 1" | 4.8 x 25mm | 15 |
Head Dimensions
| Size | Head Diameter | Head Height |
|---|---|---|
| No.6 / 3.5mm | 6.54–6.90mm | 2.35–2.60mm |
| No.8 / 4.2mm | 7.84–8.20mm | 2.75–3.05mm |
| No.10 / 4.8mm | 9.14–9.50mm | 3.25–3.55mm |
Installation
Use a suitable pilot hole for the screw diameter, material and thickness. Screw lengths are measured from beneath the head to the tip. Imperial lengths are conventional size descriptions; the corresponding metric lengths are shown above.
Packaging Options
Choose a plastic storage box with dividers and a clip-down lid, or a refill pack supplied without a box.
