Product Description

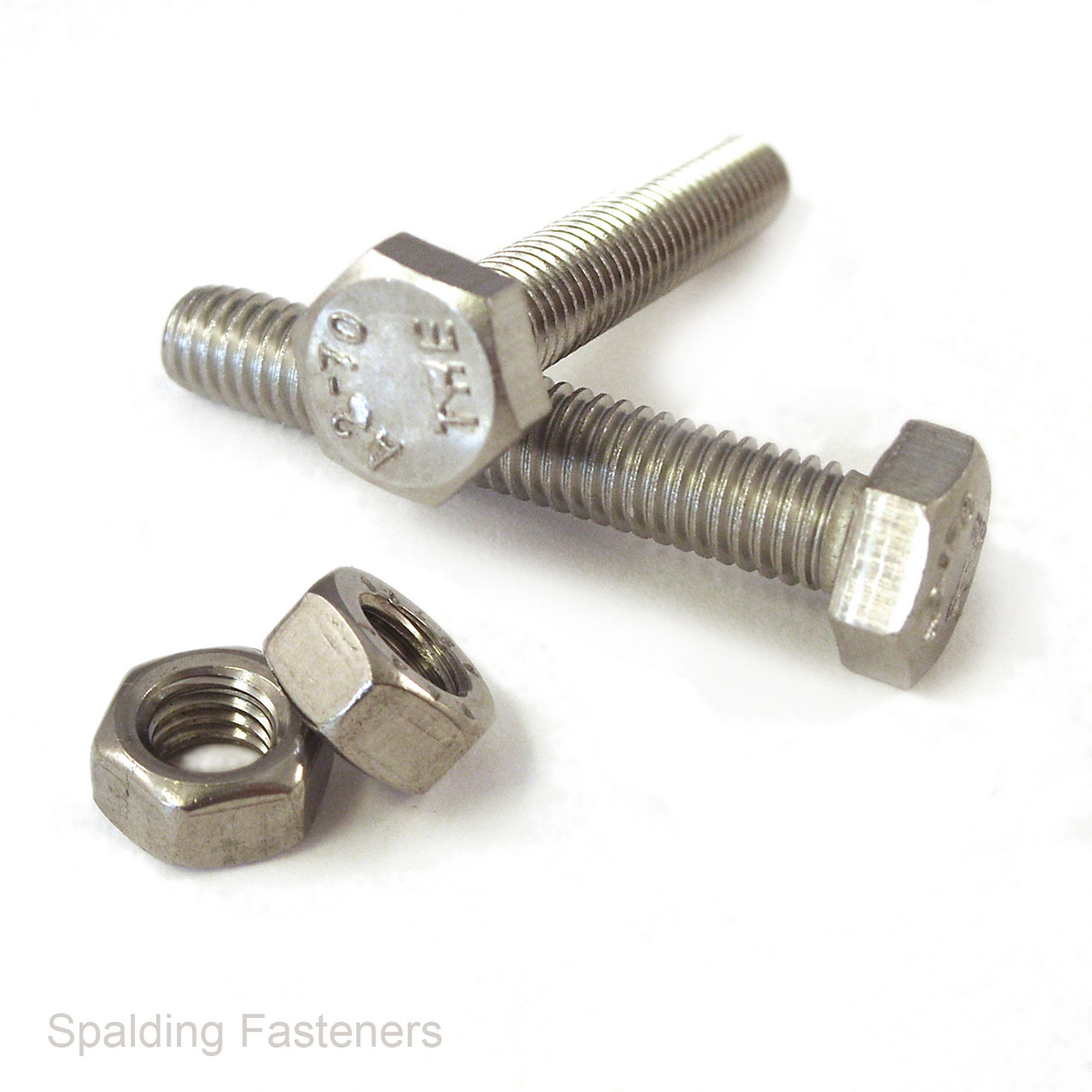

A2 Stainless Steel Hexagon Set Screw & Full Nut Assortment – 180 Pieces
A 180-piece assortment of A2 stainless steel hexagon set screws and matching full nuts in M4, M5 and M6 sizes. Includes 90 fully threaded DIN 933 screws and 90 DIN 934 hexagon full nuts.
Technical Specifications
- Material: A2 stainless steel
- Thread: Metric coarse
- Set screw standard: DIN 933
- Nut standard: DIN 934
- Thread coverage: Fully threaded screws
- Total quantity: 180 pieces

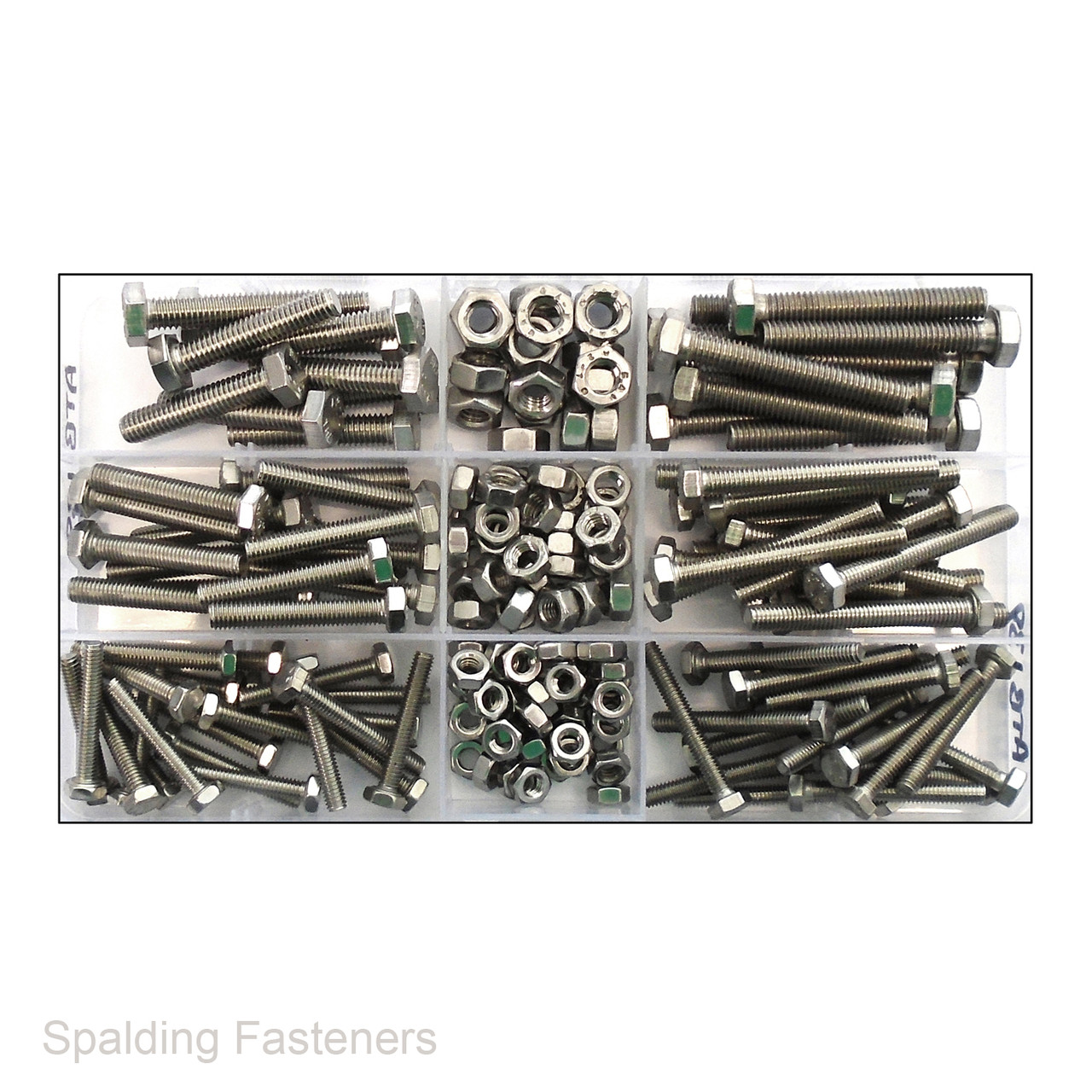

Assortment Contents
| Component | Size | Quantity |
|---|---|---|
| Hexagon set screw | M4 x 25mm | 20 |
| Hexagon set screw | M4 x 30mm | 20 |
| Hexagon full nut | M4 | 40 |
| Hexagon set screw | M5 x 30mm | 15 |
| Hexagon set screw | M5 x 40mm | 15 |
| Hexagon full nut | M5 | 30 |
| Hexagon set screw | M6 x 30mm | 10 |
| Hexagon set screw | M6 x 40mm | 10 |
| Hexagon full nut | M6 | 20 |
Thread Pitches and Nut Spanner Sizes
| Thread Size | Thread Pitch | Nut Spanner Size |
|---|---|---|
| M4 | 0.7mm | 7mm |
| M5 | 0.8mm | 8mm |
| M6 | 1.0mm | 10mm |
Packaging Options

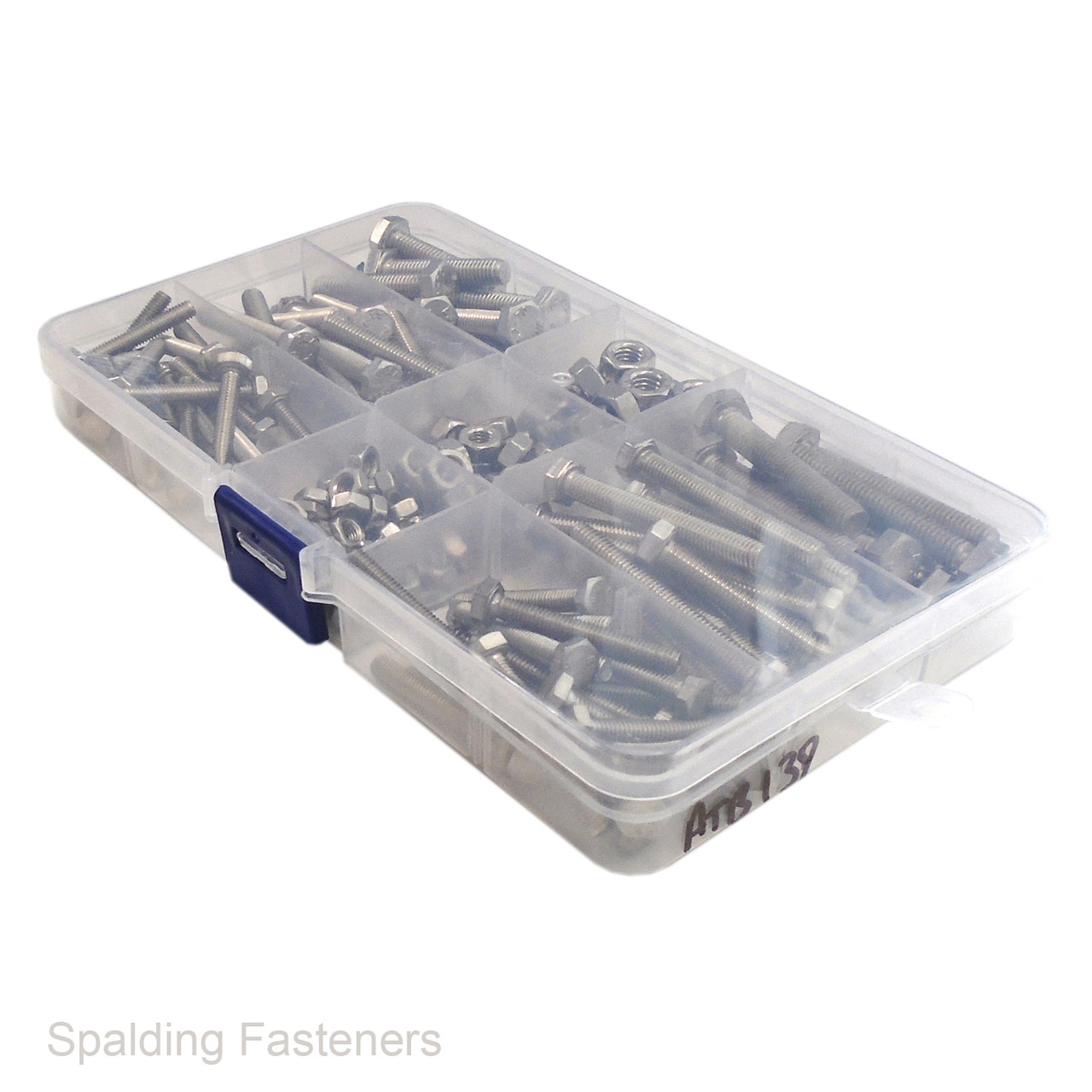

- Boxed kit: Plastic storage box with dividers and a clip-down lid.
- Refill pack: Supplied without a box.
Select the required packaging option before ordering.
