Product Description

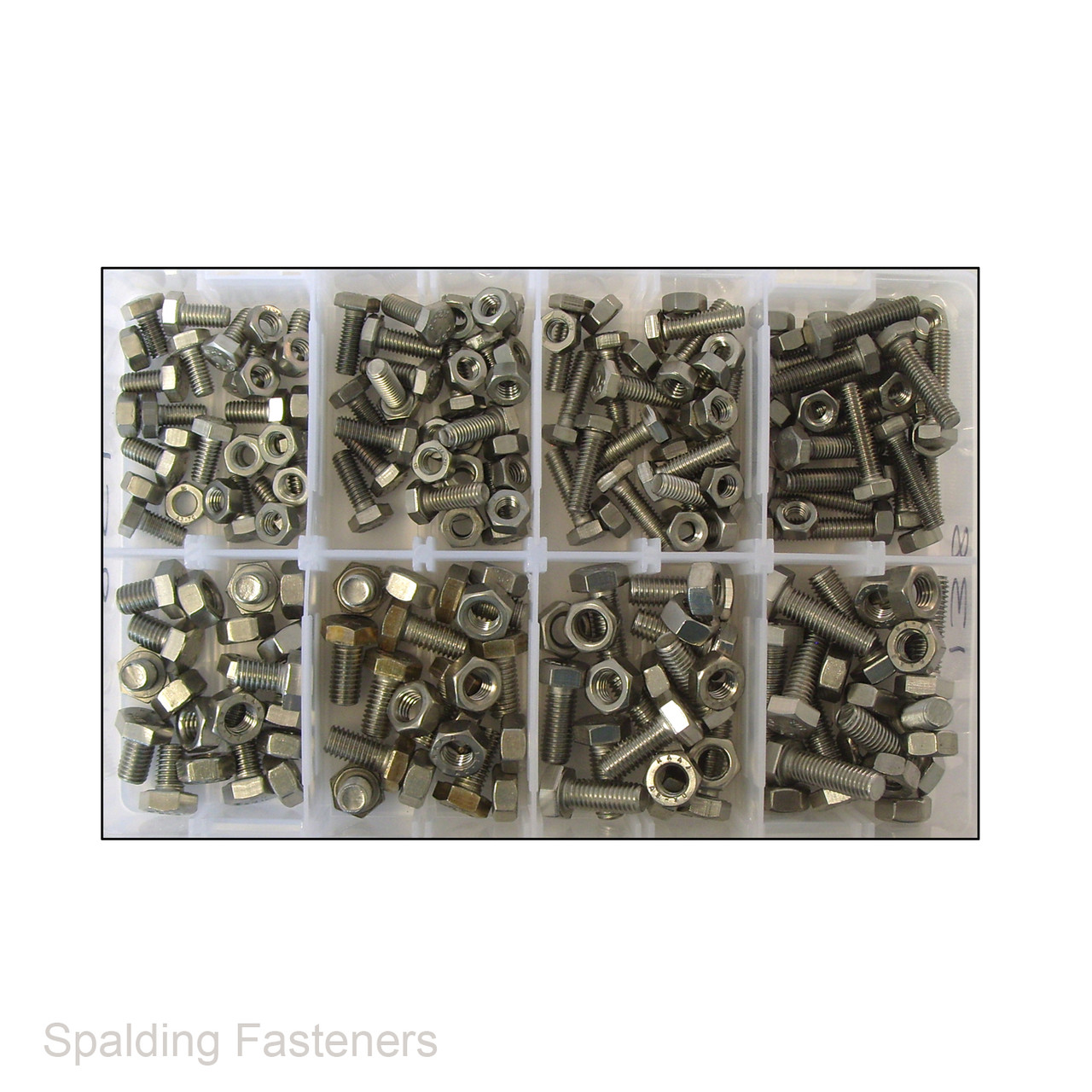

M6 & M8 A2 Stainless Steel Hex Head Set Screw & Full Nut Assortment
An assortment of fully threaded hexagon head set screws with matching plain full nuts. Includes 100 screw-and-nut pairs in eight sizes for assembly, maintenance and repairs.
Product Specifications
- Material: A2 stainless steel.
- Thread: Metric coarse.
- Screw type: Fully threaded hexagon head set screw.
- Nut type: Plain hexagon full nut.
Thread and Head Dimensions
Reference head dimensions for the DIN 933 hexagon set screw pattern.
| Thread Size | Thread Pitch | Spanner Size | Screw Head Height |
|---|---|---|---|
| M6 | 1.0mm | 10mm | 3.76–4.24mm |
| M8 | 1.25mm | 13mm | 5.06–5.54mm |
Contents
Each pair consists of one screw and one matching full nut.
| Screw Size | Screw-and-Nut Pairs |
|---|---|
| M6 × 12mm | 15 |
| M6 × 16mm | 15 |
| M6 × 20mm | 15 |
| M6 × 25mm | 15 |
| M8 × 12mm | 10 |
| M8 × 16mm | 10 |
| M8 × 20mm | 10 |
| M8 × 25mm | 10 |
| Total Pairs | 100 |
Packaging Options
- Boxed set: Divided plastic storage box with a clip-down lid.
- Refill pack: Supplied without a storage box.
Fitting and Measuring
Screw lengths are measured from underneath the head to the tip. Select a length that allows adequate thread engagement through the nut after allowing for the thickness of the components being joined.
Start the nut by hand and tighten with a correctly fitting spanner or socket.
