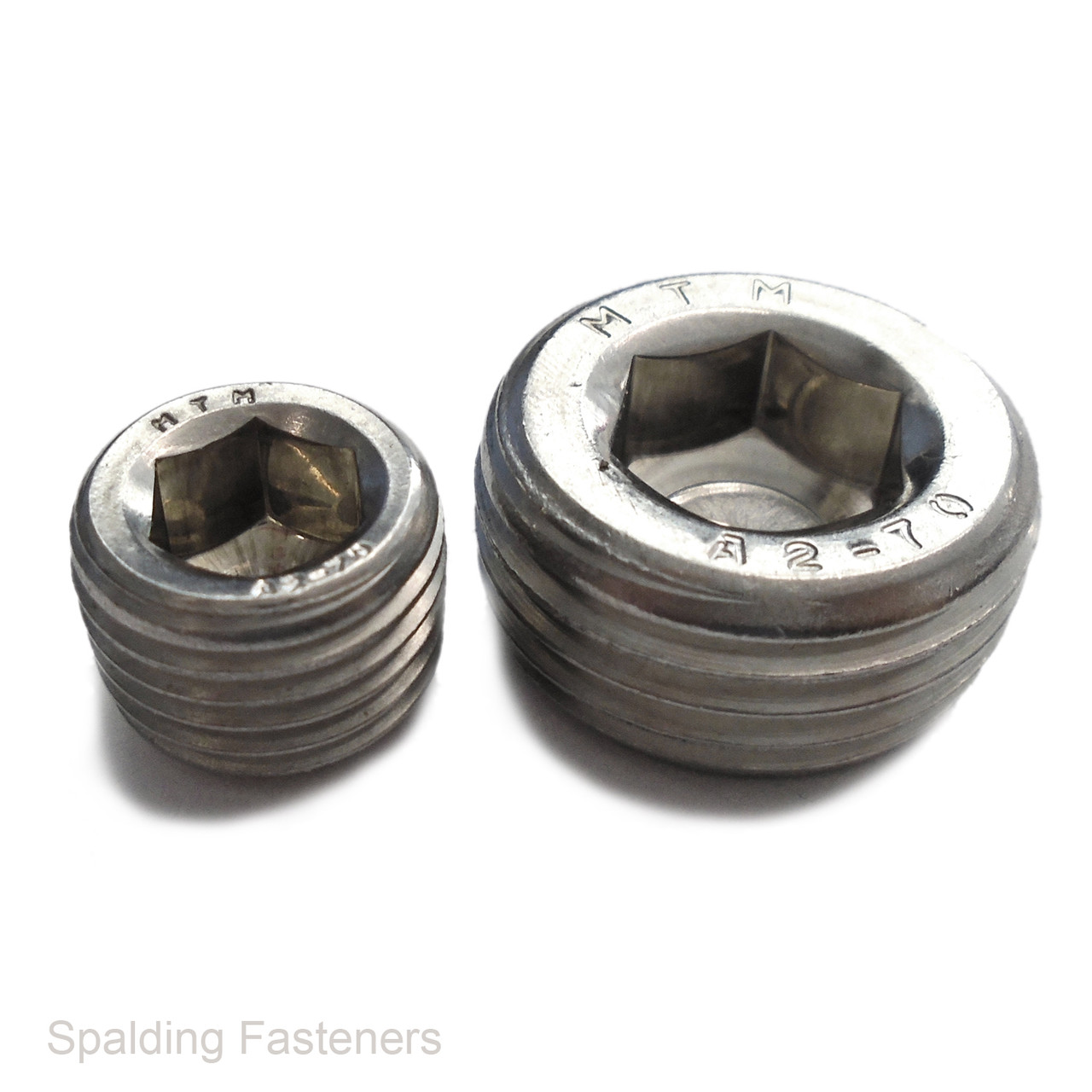

BSPT A2 Stainless Steel Socket Tapered Pipe Plugs – DIN 906
These DIN 906 socket pipe plugs are manufactured from A2 stainless steel and feature BSPT tapered external threads. Designed for blanking compatible threaded ports, they have an internal hexagon socket for installation and removal.
Technical Specifications
- Material: A2 stainless steel
- Standard: DIN 906
- Thread: BSPT – British Standard Pipe Taper
- Thread designation: R tapered external thread
- Drive: Internal hexagon socket
- Available sizes: 1/8, 1/4, 3/8, 1/2 and 3/4 inch
Thread Sizes and Dimensions
| Nominal BSPT Size | Threads Per Inch | Plug Length | Hex Key Size |
|---|---|---|---|
| 1/8 inch | 28 TPI | 8mm | 5mm |
| 1/4 inch | 19 TPI | 10mm | 7mm |
| 3/8 inch | 19 TPI | 10mm | 8mm |
| 1/2 inch | 14 TPI | 10mm | 10mm |
| 3/4 inch | 14 TPI | 12mm | 12mm |
BSPT sizes are nominal pipe sizes, not measured thread diameters. Select the required thread size and pack quantity from the available options.
Use a sealing method suitable for the mating thread, system fluid and operating conditions.
