Product Description

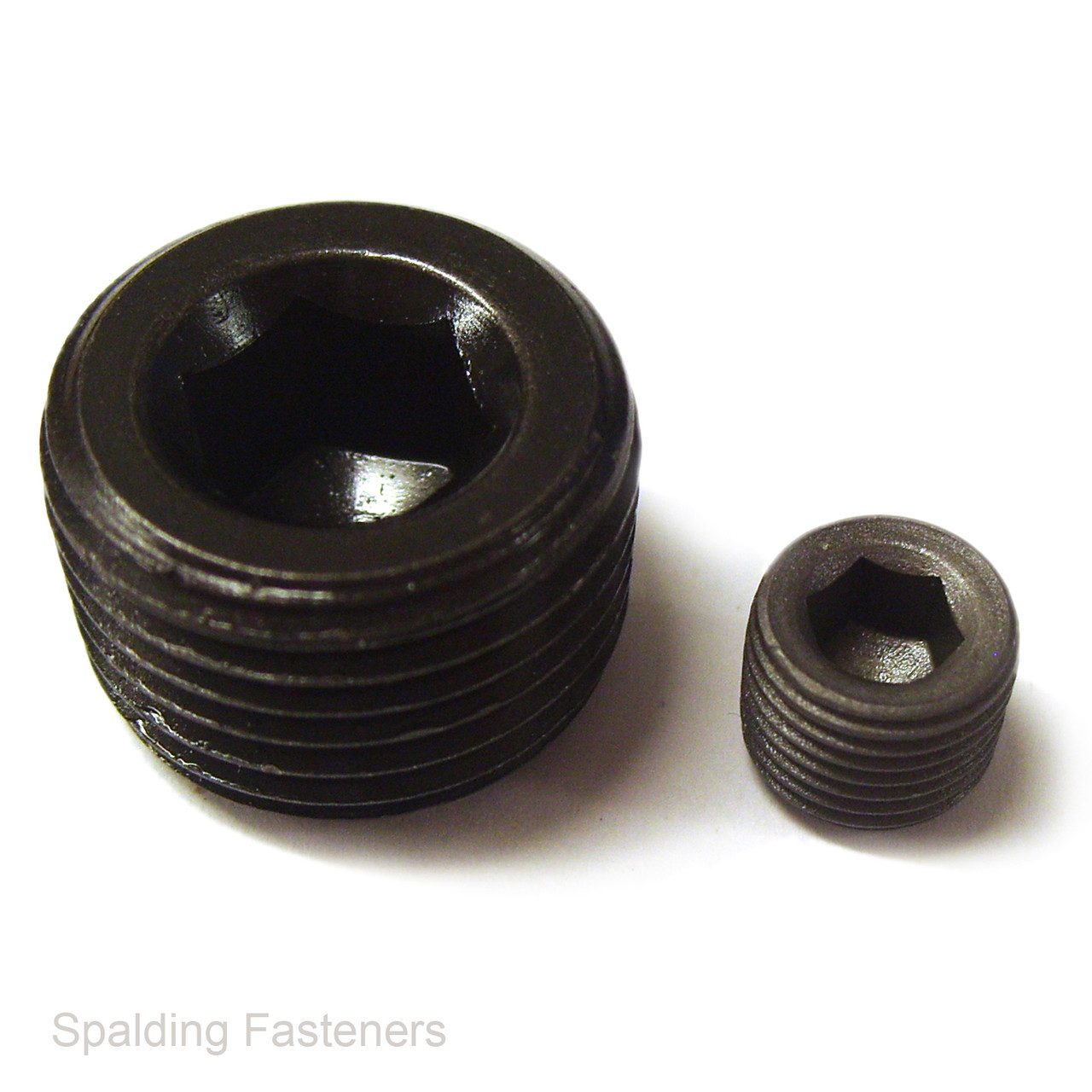

Metric Fine Tapered Socket Pipe Plugs – Self Colour Steel DIN 906
These DIN 906 pipe plugs are manufactured from high tensile steel with a self colour finish. Their tapered external thread and non-shouldered design provide a compact closure for compatible threaded ports and passages.
An internal hexagon socket allows installation with an Allen key or hex driver. The range includes eight metric thread sizes, with a 1mm pitch on M10 and a 1.5mm pitch on the remaining listed sizes.
Specifications
| Product type | Tapered threaded pipe plug |
|---|---|
| Standard | DIN 906 |
| Material | High tensile steel |
| Finish | Self colour / plain steel |
| Thread | Metric fine, tapered external thread |
| Style | Non-shouldered |
| Drive | Internal hexagon socket |
Thread Sizes and Dimensions
| Thread Size | Pitch | Allen Key Size | Plug Height |
|---|---|---|---|
| M10 x 1 | 1mm | 5mm | 8mm |
| M12 x 1.5 | 1.5mm | 6mm | 10mm |
| M16 x 1.5 | 1.5mm | 8mm | 10mm |
| M18 x 1.5 | 1.5mm | 8mm | 10mm |
| M20 x 1.5 | 1.5mm | 10mm | 10mm |
| M22 x 1.5 | 1.5mm | 10mm | 10mm |
| M24 x 1.5 | 1.5mm | 12mm | 12mm |
| M26 x 1.5 | 1.5mm | 12mm | 12mm |
Dimensions are provided as a guide. Plug height is the component length, not the installed depth. Manufacturing tolerances apply.
Key Features
- DIN 906 tapered pipe plug design.
- High tensile steel with a self colour finish.
- Internal hexagon drive for installation in restricted spaces.
- Non-shouldered profile.
- Eight metric thread sizes with pitches shown above.
Typical Applications
Suitable for closing compatible ports in machinery, housings, manifolds and fluid passages where a DIN 906 metric tapered plug is specified.
Installation
Confirm the port thread diameter, pitch and suitability for a tapered plug before installation. Use the correct hex driver and follow the equipment manufacturer's tightening and sealing instructions. Apply a compatible thread sealant where specified, accounting for the fluid, temperature and service conditions.
Avoid overtightening, as excessive wedging force can damage the port. Permissible pressure depends on the complete assembly and operating conditions.
Ordering
Select the required thread size, pitch and pack quantity from the available options. Check the thread designation carefully before ordering.
Standards
DIN 906 – tapered threaded plugs with internal hexagon socket.
