Product Description

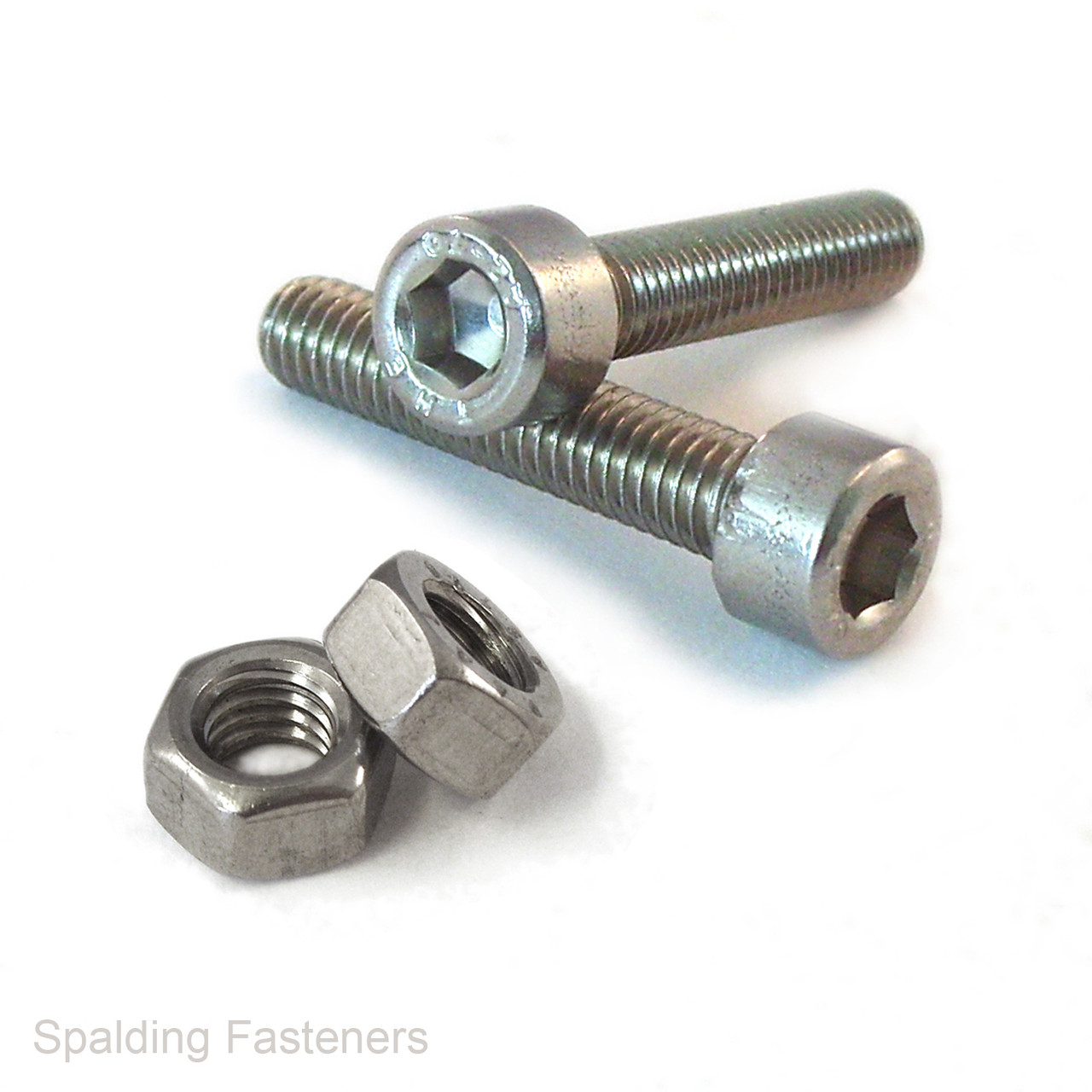

M5 A2 Stainless Steel Socket Cap Screw, Nut & Washer Kit – 184 Pieces
A 184-piece assortment of M5 A2 stainless steel socket cap screws, plain nuts, nyloc nuts and flat washers. Includes six screw lengths from 20mm to 50mm, available as a boxed kit or refill pack.
Technical Specifications
- Material: A2 stainless steel
- Thread: M5 x 0.8mm metric coarse
- Socket cap screw standard: DIN 912 / ISO 4762
- Hex key size: 4mm
- Screw head diameter: 8.28–8.50mm
- Screw head height: 4.82–5.00mm
- Total quantity: 184 pieces
Assortment Contents
| Component | Size | Quantity |
|---|---|---|
| Socket cap screw | M5 x 20mm | 10 |
| Socket cap screw | M5 x 25mm | 10 |
| Socket cap screw | M5 x 30mm | 8 |
| Socket cap screw | M5 x 35mm | 8 |
| Socket cap screw | M5 x 40mm | 5 |
| Socket cap screw | M5 x 50mm | 5 |
| Plain nut | M5 | 23 |
| Nyloc nut | M5 | 23 |

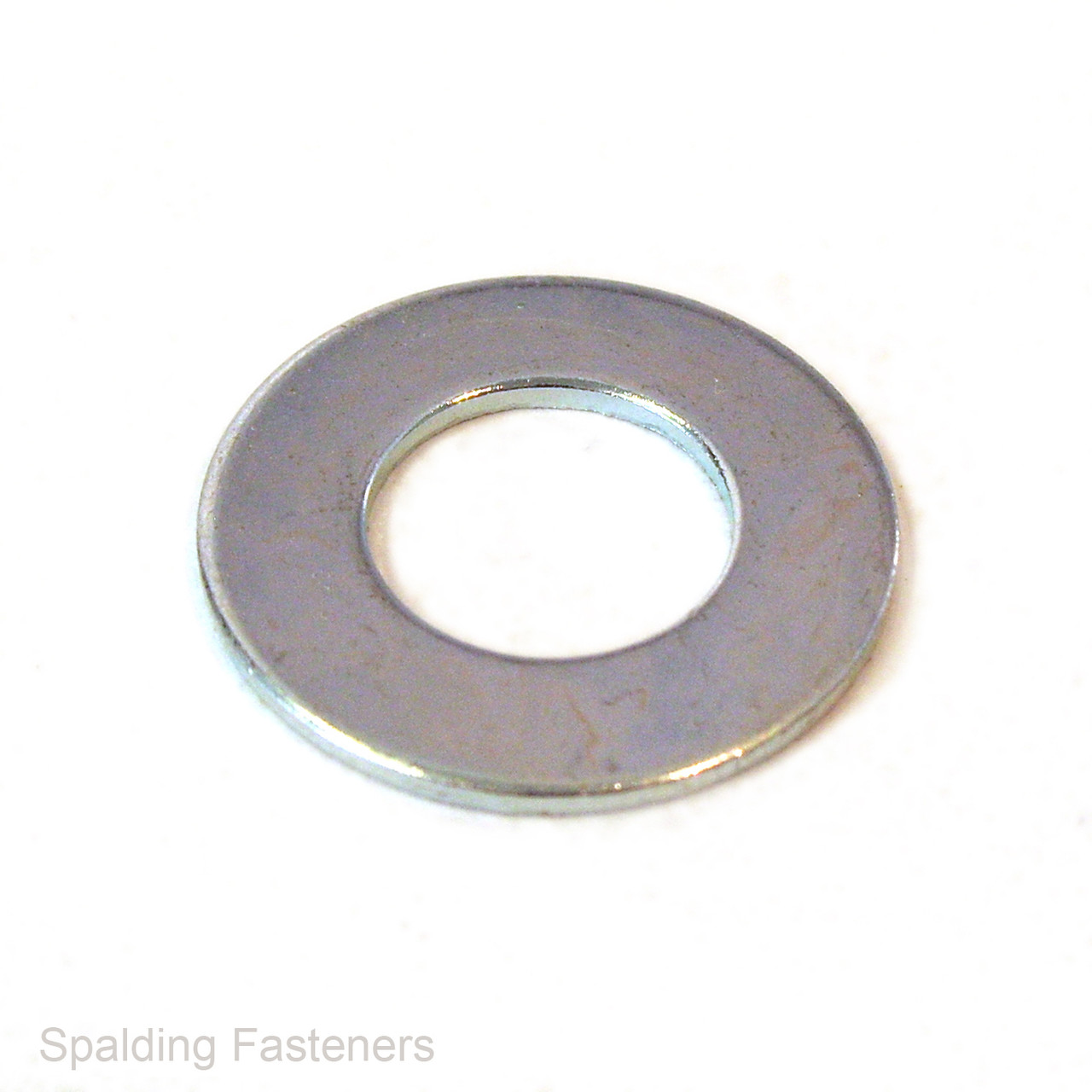

| Flat washer | M5 | 92 |
Packaging Options

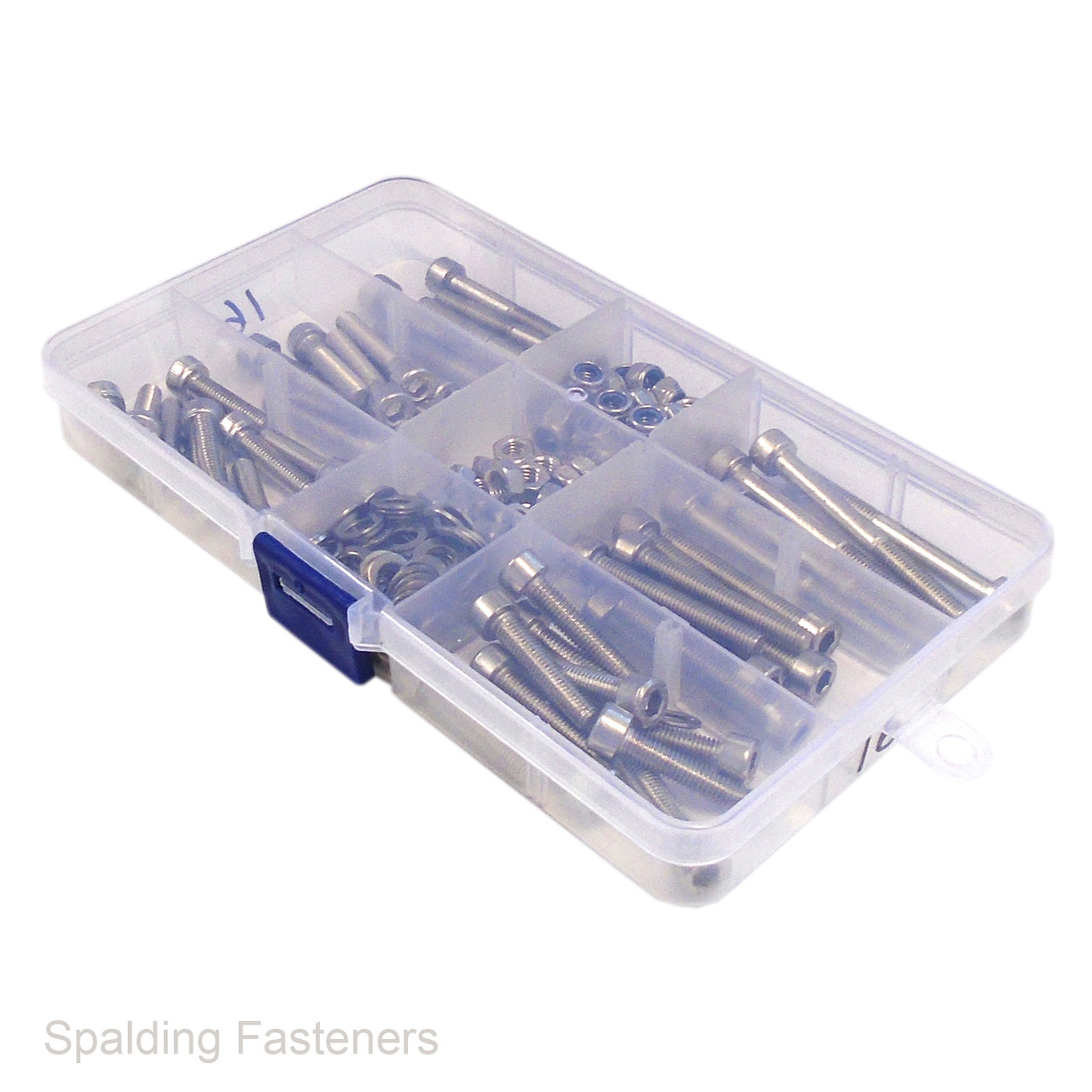

- Boxed kit: Plastic storage box with dividers and a clip-down lid.

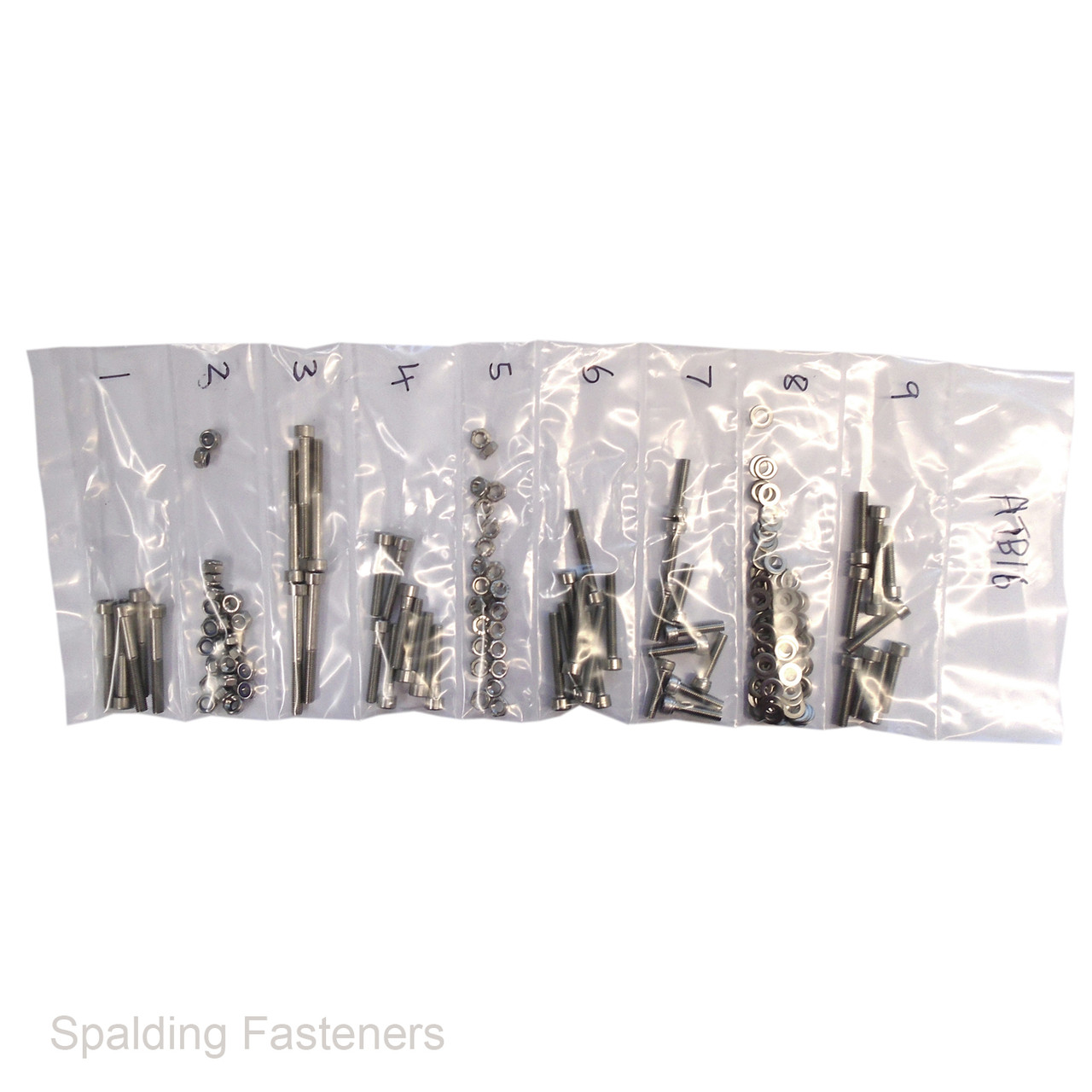

- Refill pack: Supplied without a box.
Select the required packaging option before ordering.
