Product Description
250 Assorted M5 A2 Stainless Steel Hex Flange Set Screws, Nuts & Washers
An M5 fastener assortment containing five lengths of fully threaded hexagon flange set screws, matching flange nuts and repair washers. The 250-piece selection provides components for workshop assembly, maintenance and repairs.
Specifications
- Material: A2 stainless steel.
- Thread size: M5.
- Thread type: standard metric coarse.
- Thread pitch: 0.8mm.
- Screws: fully threaded hexagon flange head.

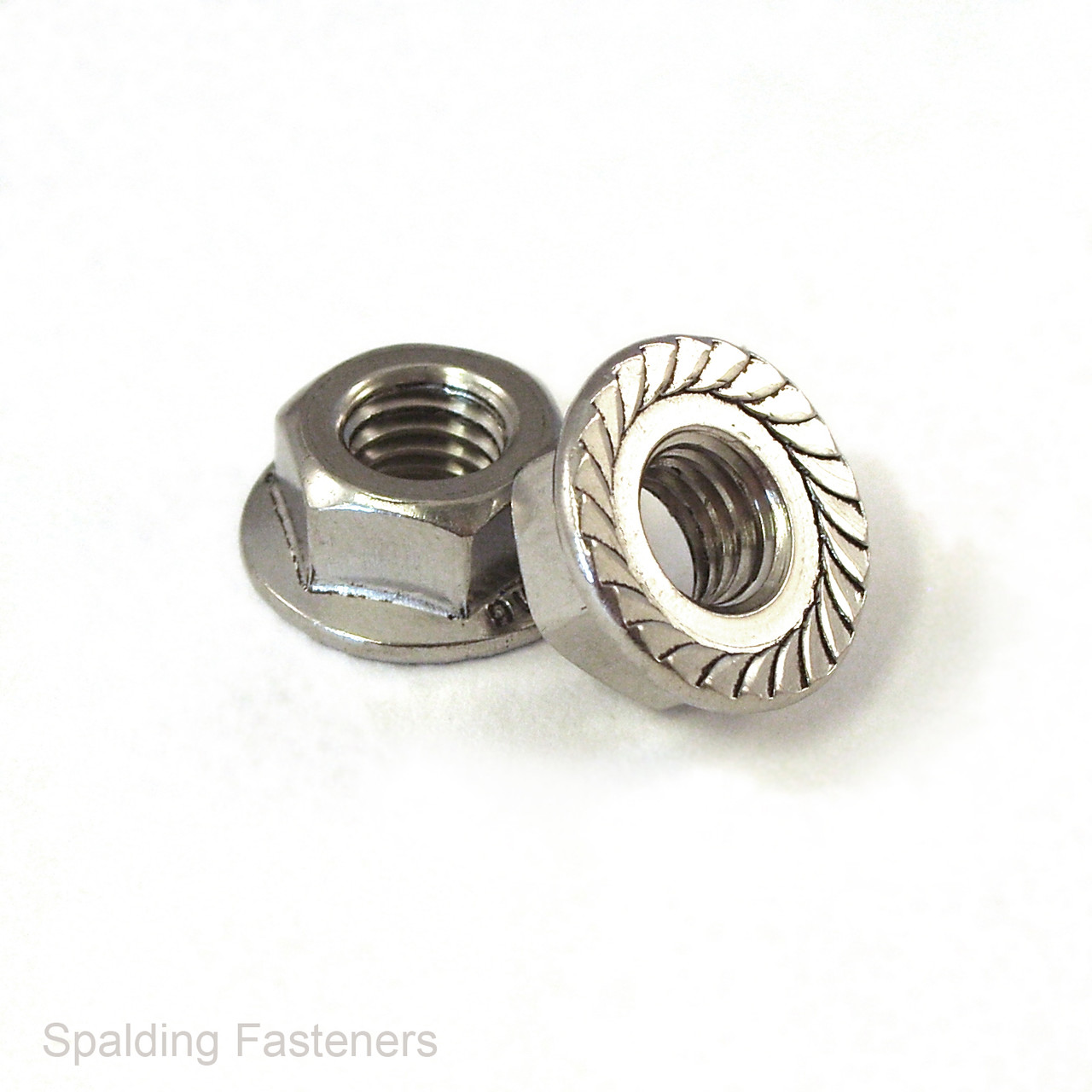

- Nuts: hexagon flange full nuts.
- Washers: M5 repair washers with a 20mm outside diameter.
- Total quantity: 250 components.
Dimensions
Reference screw head dimensions for the DIN 6921 pattern. Measurements are in millimetres.
| Measurement | Size |
|---|---|
| Screw spanner size | 8 |
| Maximum screw head height | 5.4 |
| Nut spanner size | 8 |
| Nut height | 5 |
| Nut flange diameter | 11.8 |
| Repair washer outside diameter | 20 |
Assortment Contents
| Component | Size | Quantity |
|---|---|---|
| Hex flange set screws | M5 × 10mm | 20 |
| Hex flange set screws | M5 × 16mm | 20 |
| Hex flange set screws | M5 × 20mm | 20 |
| Hex flange set screws | M5 × 25mm | 20 |
| Hex flange set screws | M5 × 30mm | 20 |
| Flange full nuts | M5 | 100 |
| Repair washers | M5 × 20mm outside diameter | 50 |
| Total | 250 | |
Packaging Options
- Boxed set: supplied in a plastic storage case with a clip-down lid.
- Refill pack: supplied without a storage box.
Selecting and Fitting
Screw length is measured from beneath the flange to the end of the screw. Choose a length that accommodates the joined parts and any washer, allowing full engagement through the nut. Start the nut by hand before tightening with a correctly fitting spanner or socket.
