Product Description
M3 A2 Stainless Steel Socket Button Screw, Nut & Washer Kit
An assortment of M3 A2 stainless steel socket button head screws in six lengths, supplied with matching plain nuts, nyloc nuts and flat washers. A practical selection for small assemblies, maintenance and workshop repairs.
The rounded button heads provide a low profile finish, with an internal hexagon drive for a 2mm hex key. The screws and nuts have an M3 x 0.5mm metric coarse thread.
Specifications
- Material: A2 stainless steel for corrosion resistance.
- Thread size: M3.
- Thread pitch: 0.5mm metric coarse.
- Screw type: Hexagon socket button head, ISO 7380-1.
- Hex key size: 2mm.
- Head diameter: 5.40–5.70mm.
- Head height: 1.40–1.65mm.
- Screw lengths: 6mm to 50mm, measured from beneath the head.
- Nut types: Plain hexagon nuts and nylon insert locking nuts.
- Washer type: Flat washers.

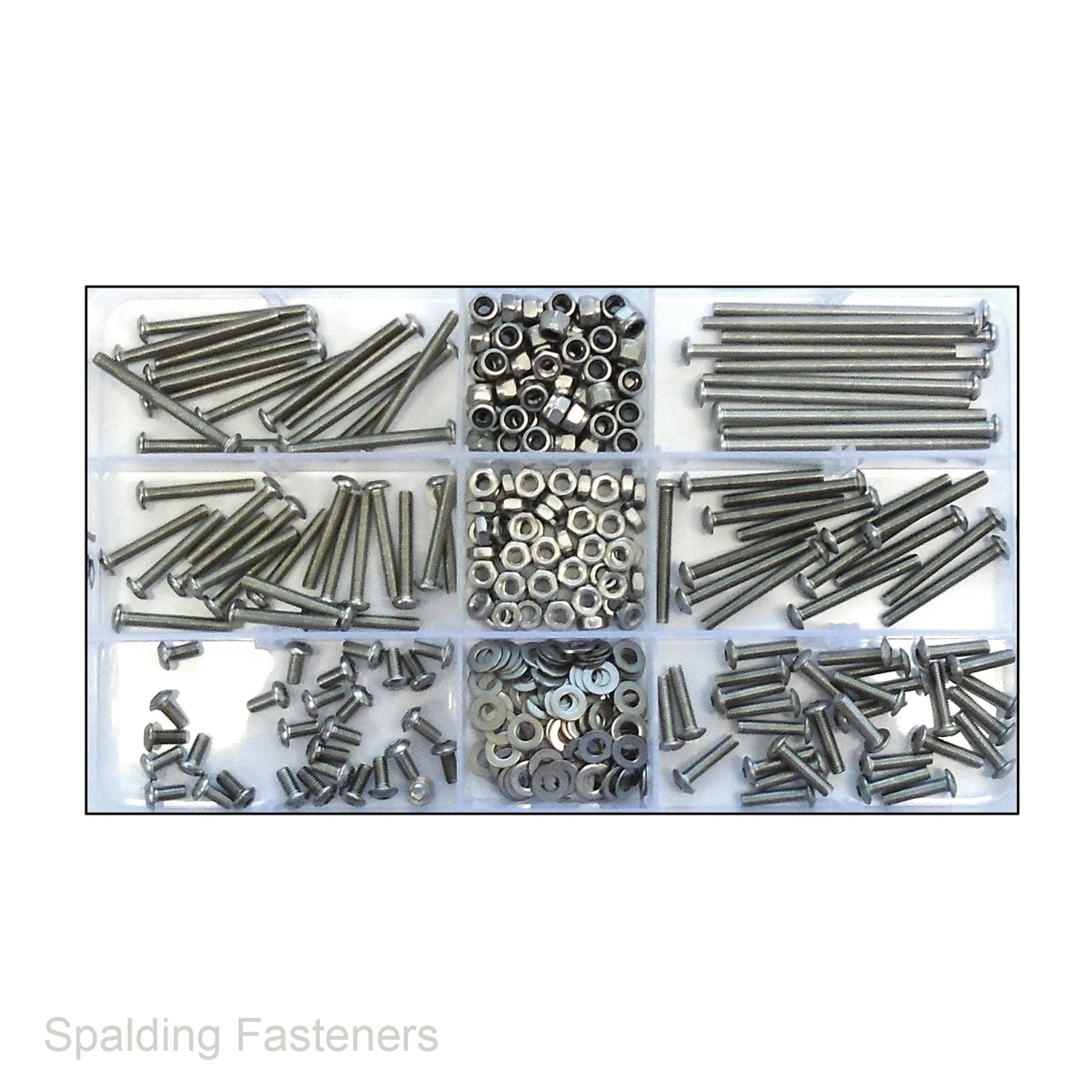

Kit Contents
| Component | Size | Quantity |
|---|---|---|
| Socket button head screws | M3 x 6mm | 30 |
| Socket button head screws | M3 x 12mm | 30 |
| Socket button head screws | M3 x 20mm | 20 |
| Socket button head screws | M3 x 25mm | 15 |
| Socket button head screws | M3 x 30mm | 15 |
| Socket button head screws | M3 x 50mm | 10 |
| Plain hexagon nuts | M3 x 0.5mm | 60 |
| Nyloc nuts | M3 x 0.5mm | 60 |
| Flat washers | M3 | 120 |
Packaging Options

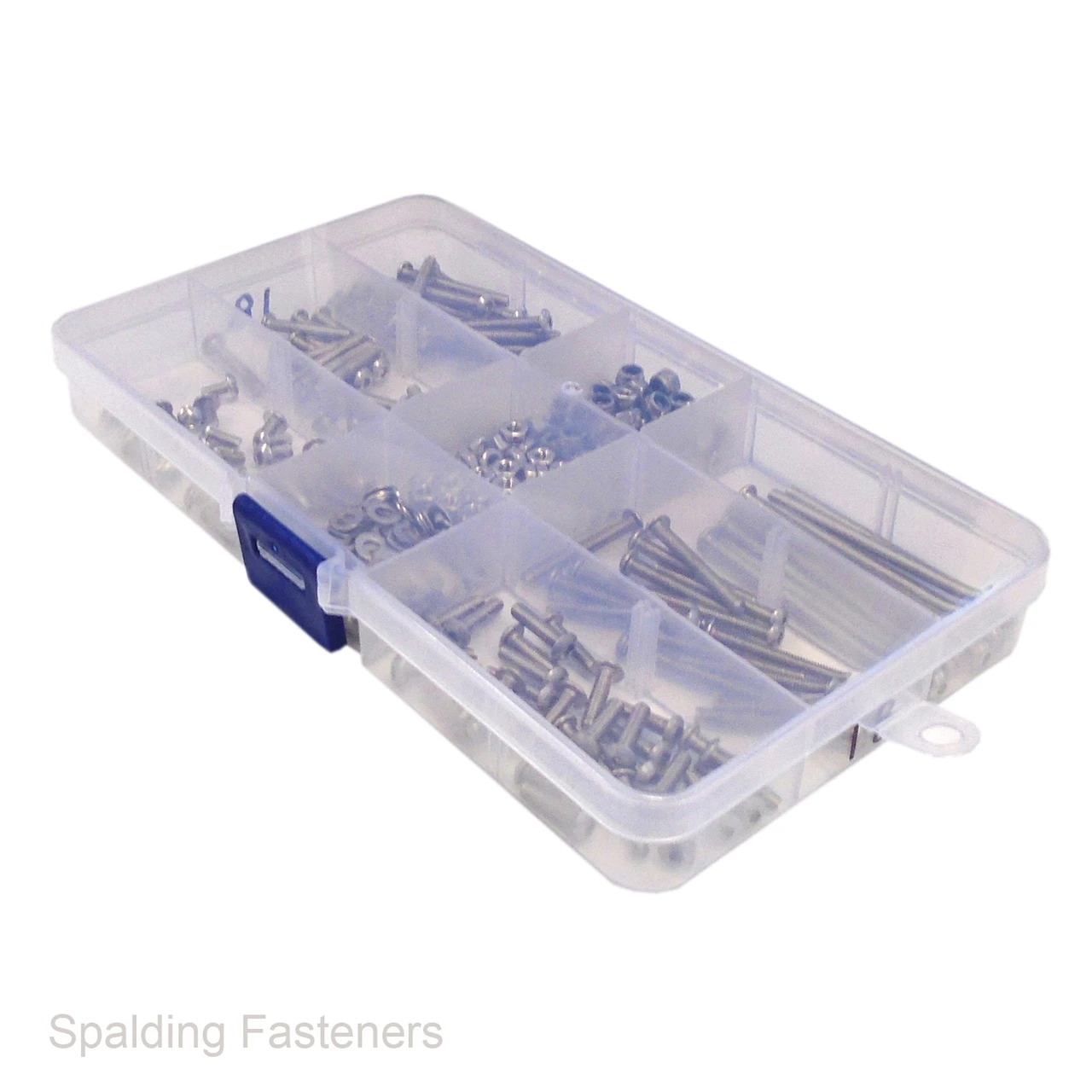

- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.

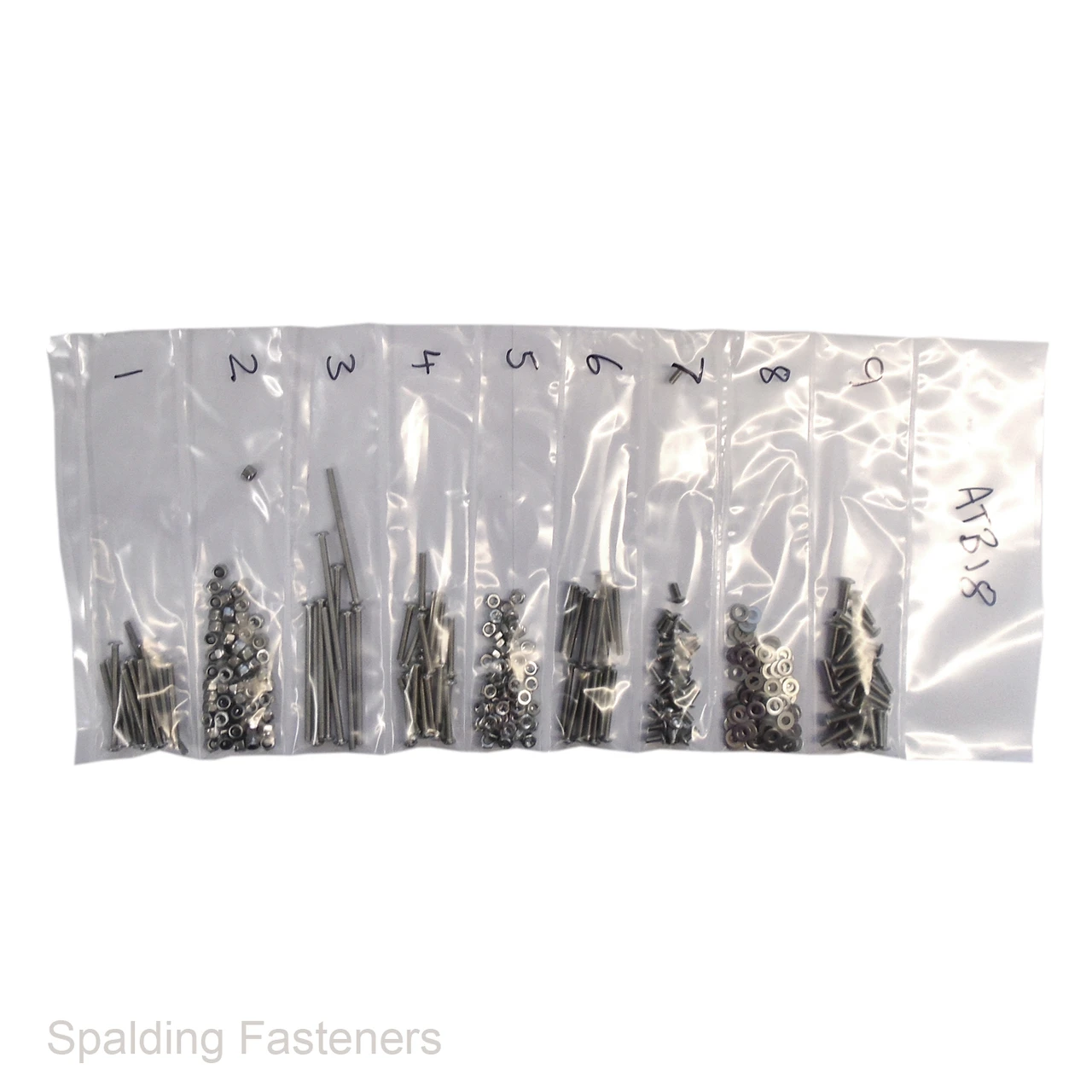

- Refill pack: Supplied without a storage box.
Select the boxed kit or refill pack when ordering.
