Product Description
A2 Stainless Steel Hex Head Self Tapping Screw Kit – 230 Pieces
A 230-piece assortment of A2 stainless steel hexagon head self tapping screws in No.6, No.8 and No.10 sizes. Includes nine diameter and length combinations, providing a practical selection for assembly, maintenance and repairs.
The pointed self tapping threads form a mating thread in a suitably sized pilot hole. The external hexagon heads can be driven using a matching socket or nut driver.
Specifications
- Material: A2 stainless steel for corrosion resistance.
- Standard: DIN 7976.
- Head type: Hexagon.
- Point type: AB pointed self tapping.
- Diameters: 3.5mm, 4.2mm and 4.8mm.
- Lengths: 13mm to 38mm, measured from beneath the head.
- Total quantity: 230 screws.

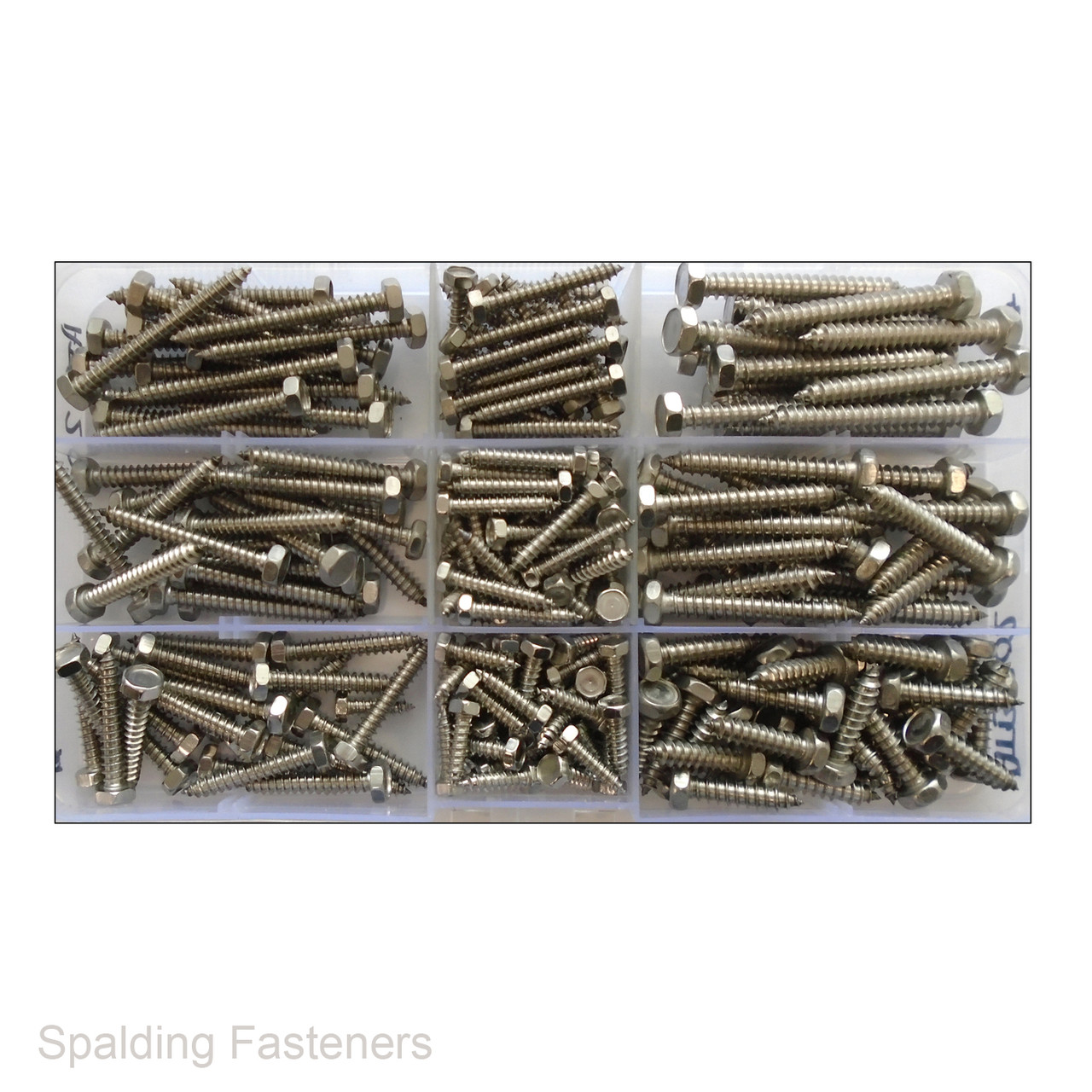

Kit Contents
| Gauge | Diameter | Length | Quantity |
|---|---|---|---|
| No.6 | 3.5mm | 13mm | 40 |
| No.6 | 3.5mm | 19mm | 30 |
| No.6 | 3.5mm | 25mm | 25 |
| No.8 | 4.2mm | 25mm | 20 |
| No.8 | 4.2mm | 32mm | 20 |
| No.8 | 4.2mm | 38mm | 20 |
| No.10 | 4.8mm | 19mm | 35 |
| No.10 | 4.8mm | 32mm | 20 |
| No.10 | 4.8mm | 38mm | 20 |
Hex Drive and Head Dimensions
| Gauge | Socket / Nut Driver Size | Maximum Head Height |
|---|---|---|
| No.6 | 5.5mm | 2.6mm |
| No.8 | 7mm | 3.0mm |
| No.10 | 8mm | 3.8mm |
Packaging Options

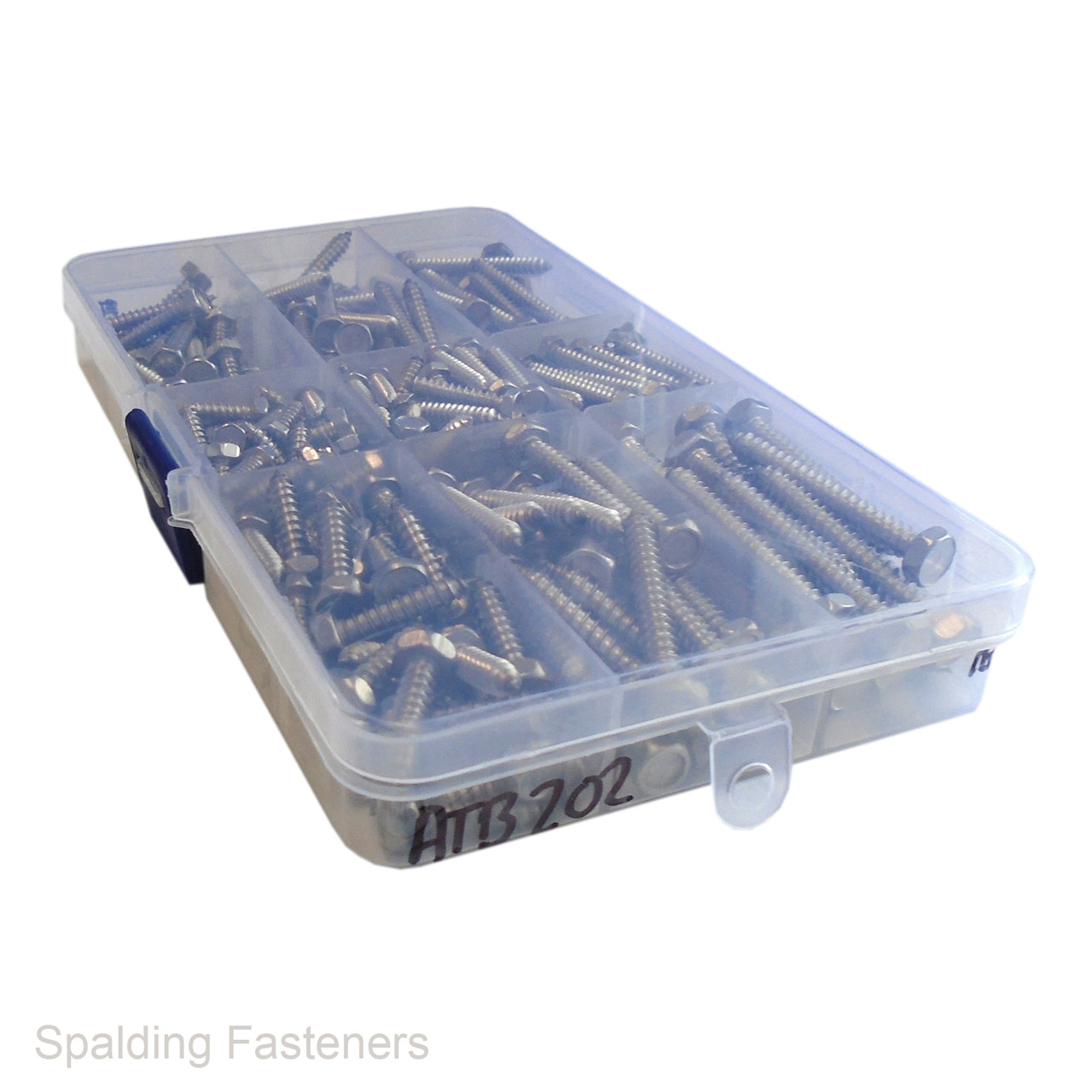

- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.

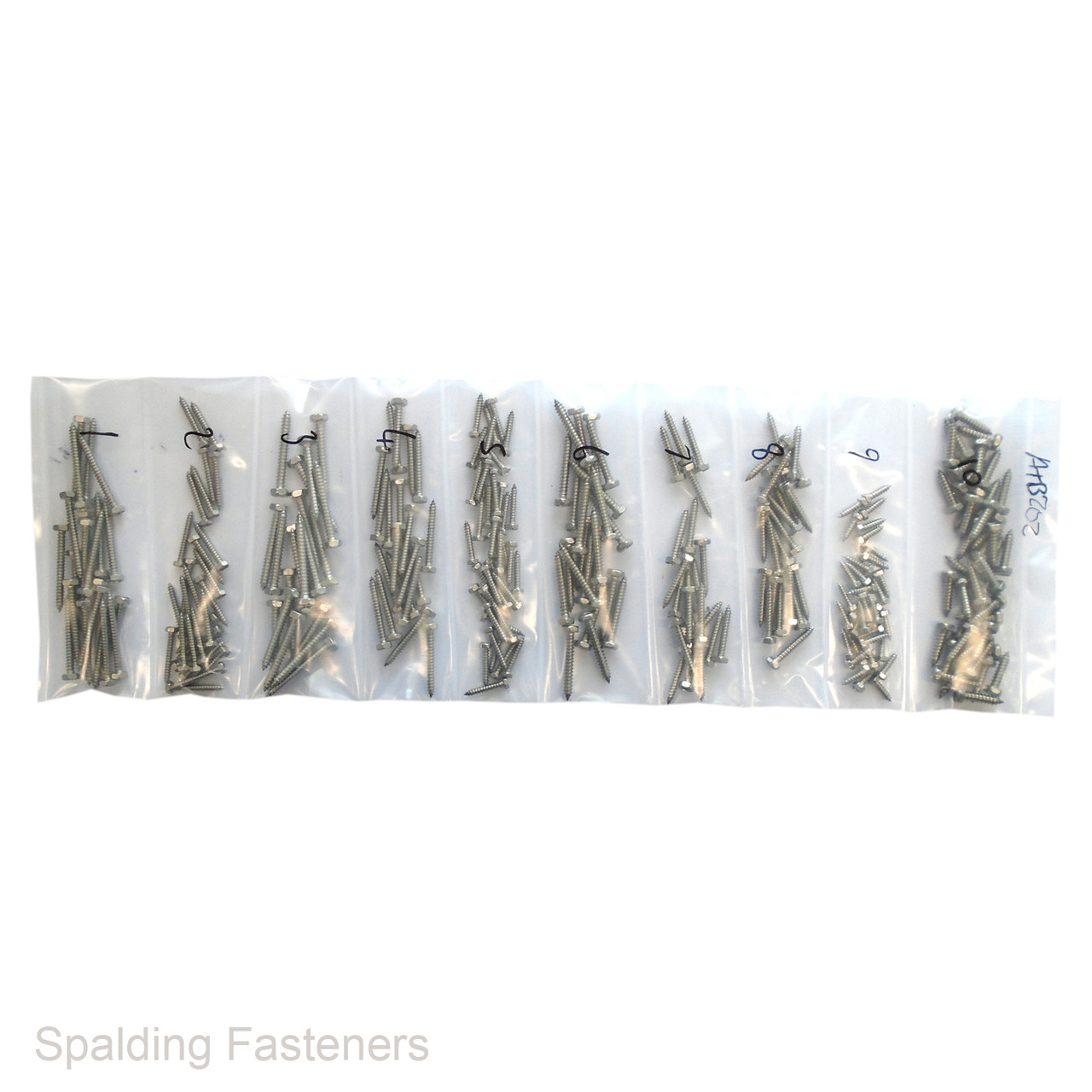

- Refill pack: Supplied without a storage box.
Choose a pilot hole suitable for the screw diameter, material and material thickness. Select the boxed kit or refill pack when ordering.
