Product Description
A2 Stainless Steel Dome Nut Assortment – 101 Pieces, M3–M12
A 101-piece assortment of A2 stainless steel hexagon dome nuts to DIN 1587. Includes seven metric sizes from M3 to M12, providing a practical selection for assembly, maintenance and repairs.

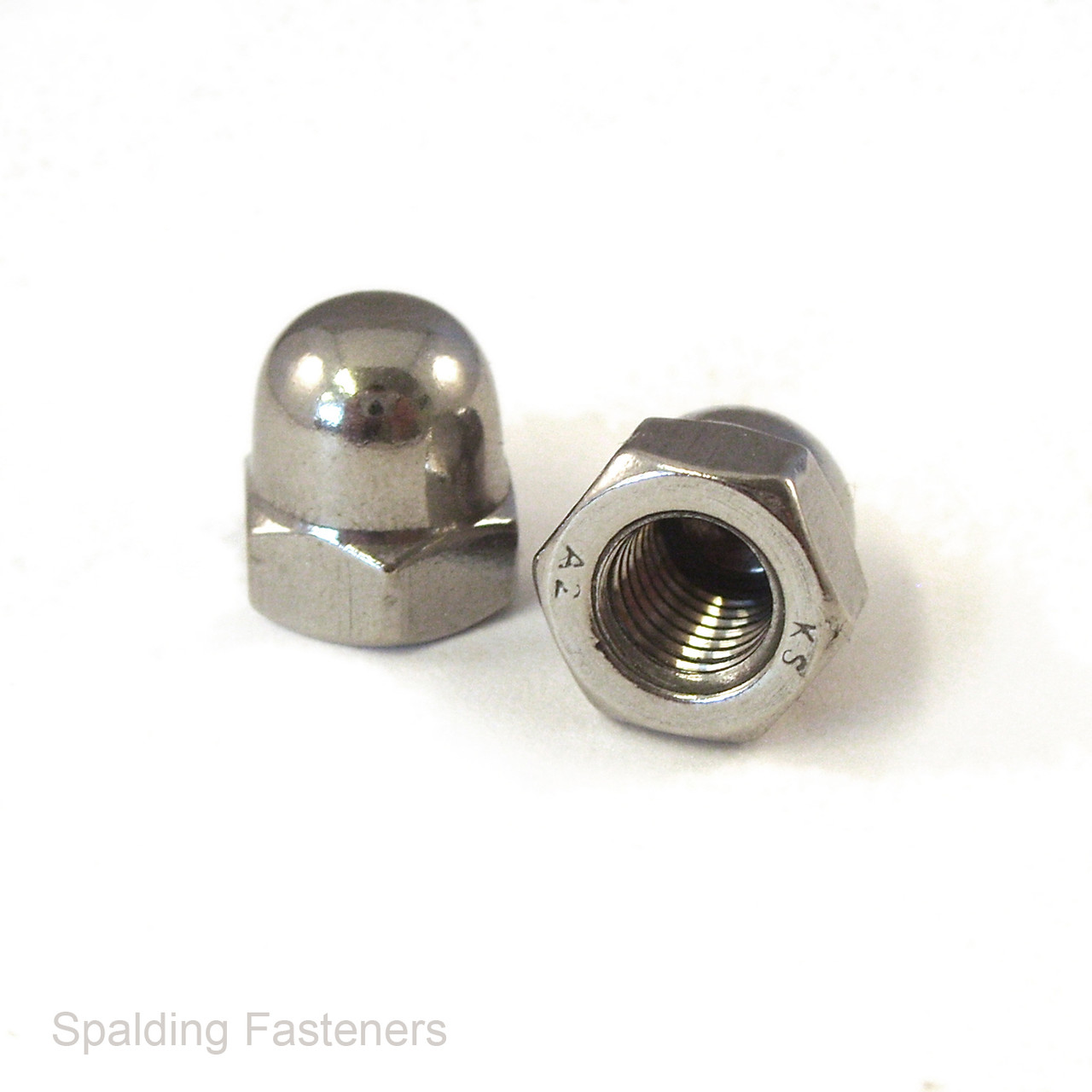

Also known as cap nuts or acorn nuts, dome nuts cover the exposed end of a mating bolt or threaded stud to provide a neat, rounded finish. The hexagon base allows tightening with a matching spanner or socket.
Specifications
- Material: A2 stainless steel for corrosion resistance.
- Standard: DIN 1587.
- Type: Hexagon dome nuts with a closed end.
- Thread: Metric coarse.
- Sizes: M3, M4, M5, M6, M8, M10 and M12.
- Total quantity: 101 nuts.

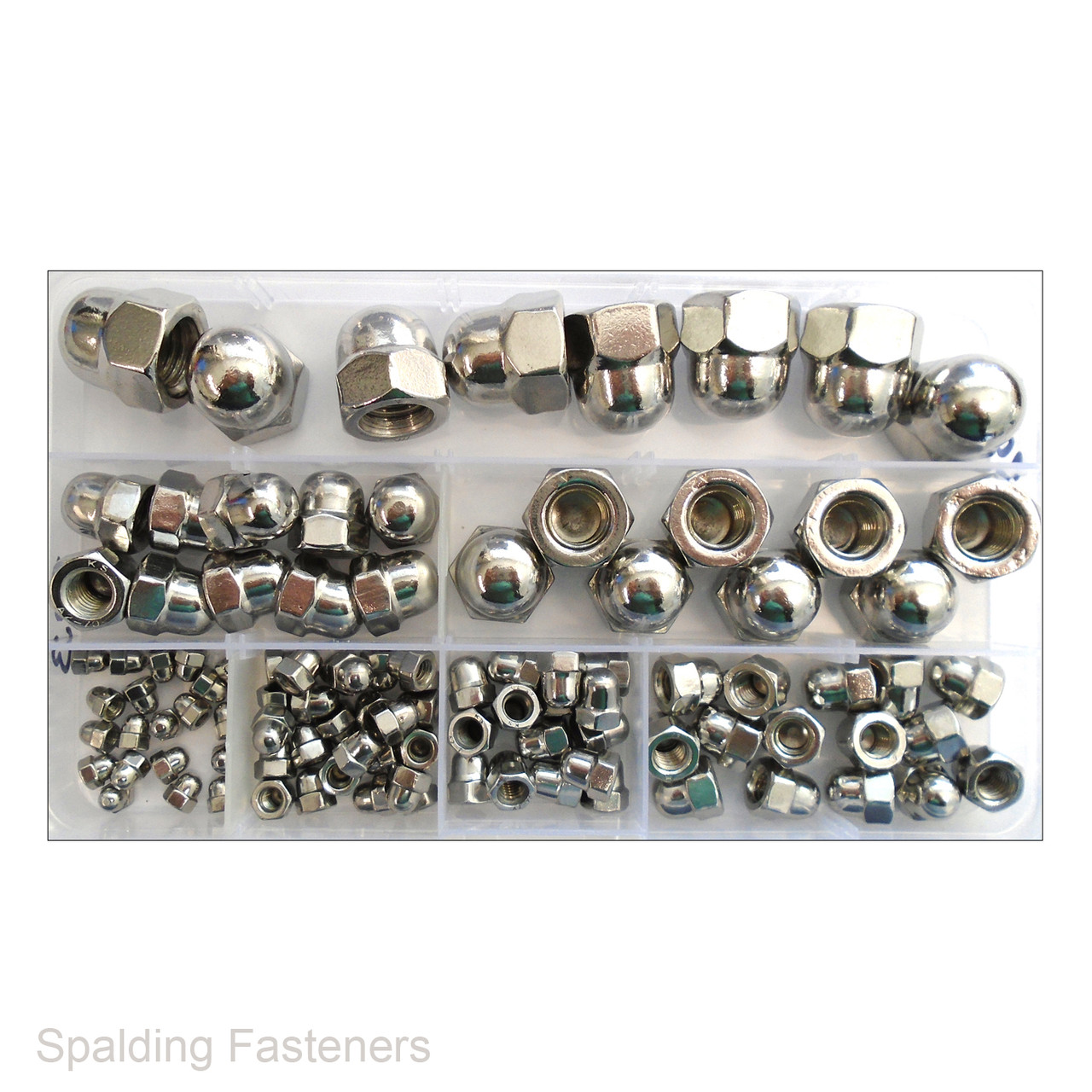

Contents and Dimensions
All dimensions are in millimetres. Overall height includes the domed top.
| Thread Size | Thread Pitch | Spanner Size | Maximum Overall Height | Quantity |
|---|---|---|---|---|
| M3 | 0.5mm | 5.5mm | 6mm | 20 |
| M4 | 0.7mm | 7mm | 8mm | 25 |
| M5 | 0.8mm | 8mm | 10mm | 15 |
| M6 | 1.0mm | 10mm | 12mm | 15 |
| M8 | 1.25mm | 13mm | 15mm | 10 |
| M10 | 1.5mm | 17mm | 18mm | 8 |
| M12 | 1.75mm | 19mm | 22mm | 8 |
Packaging Options

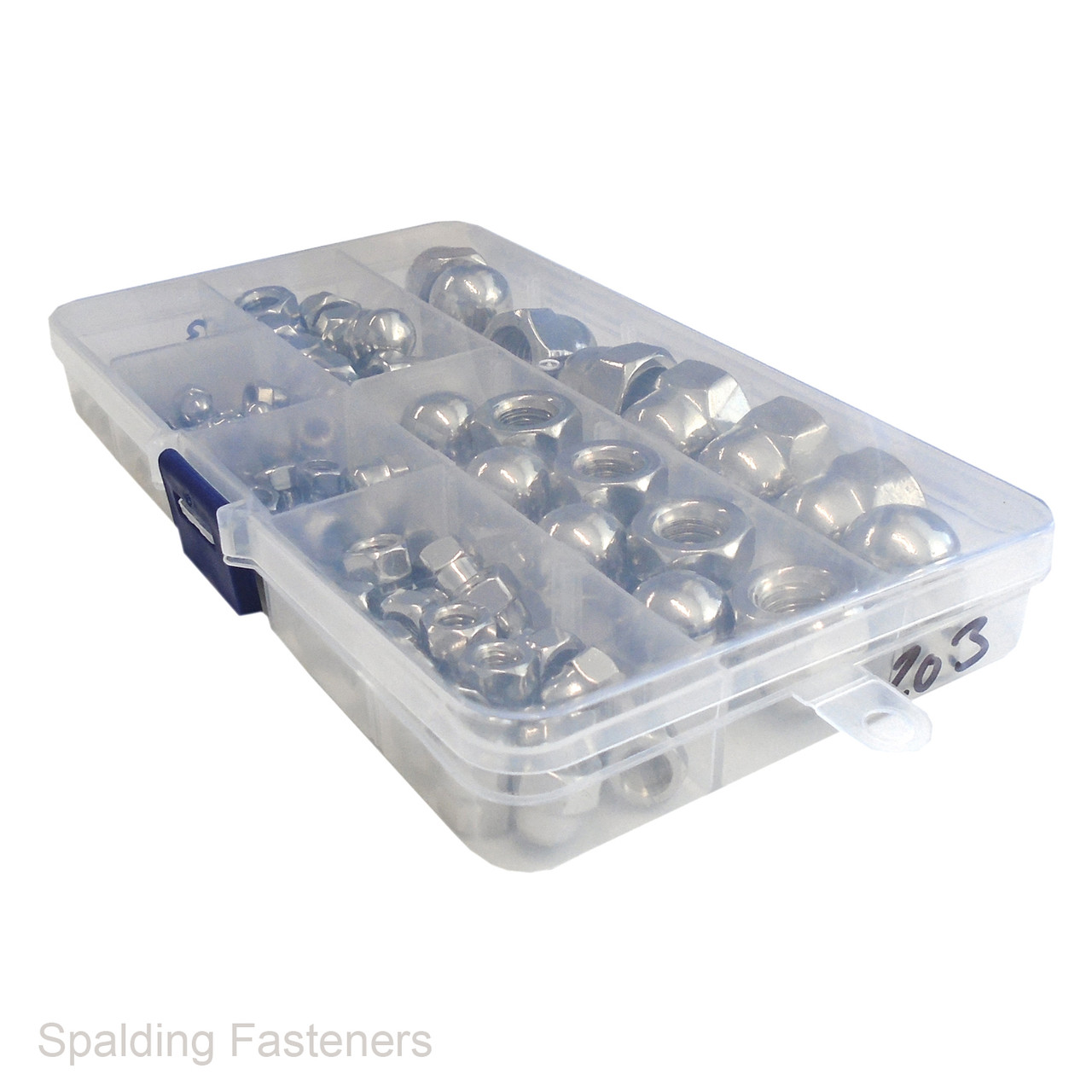

- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.
- Refill pack: Supplied without a storage box.
Use with fasteners of the matching thread size and pitch. Ensure the bolt or stud does not bottom out inside the dome before the nut clamps the joint. Select the boxed kit or refill pack when ordering.
