Product Description
A2 Stainless Steel Spring Roll Pin Assortment – 211 Pieces
A 211-piece assortment of stainless steel spring roll pins in 20 metric diameter and length combinations. Covers nominal diameters from 1.5mm to 6mm and lengths from 6mm to 30mm, providing a practical selection for assembly, maintenance and repairs.
Slotted spring pins compress during installation and exert outward pressure against the hole to retain their position. They are commonly used for locating and securing components in mechanical assemblies.
Specifications
- Material: A2 stainless steel.
- Type: Slotted spring roll pins.
- Standard: DIN 1481 / ISO 8752.
- Nominal diameters: 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm and 6mm.
- Length range: 6mm to 30mm.
- Total quantity: 211 pins.
Kit Contents
Sizes are shown as nominal diameter x length. The uncompressed outside diameter is larger than the nominal diameter, allowing the pin to compress during fitting.
| Nominal Diameter | Length | Quantity |
|---|---|---|
| 1.5mm | 6mm | 10 |
| 1.5mm | 10mm | 10 |
| 2mm | 8mm | 10 |
| 2mm | 12mm | 10 |
| 2mm | 18mm | 15 |
| 2.5mm | 6mm | 10 |
| 2.5mm | 8mm | 10 |
| 2.5mm | 10mm | 15 |
| 3mm | 12mm | 10 |
| 3mm | 14mm | 10 |
| 3mm | 16mm | 15 |
| 3mm | 25mm | 10 |
| 4mm | 6mm | 10 |
| 4mm | 10mm | 10 |
| 4mm | 20mm | 10 |
| 5mm | 10mm | 10 |
| 5mm | 20mm | 10 |
| 5mm | 30mm | 8 |
| 6mm | 10mm | 8 |
| 6mm | 30mm | 10 |
Packaging Options

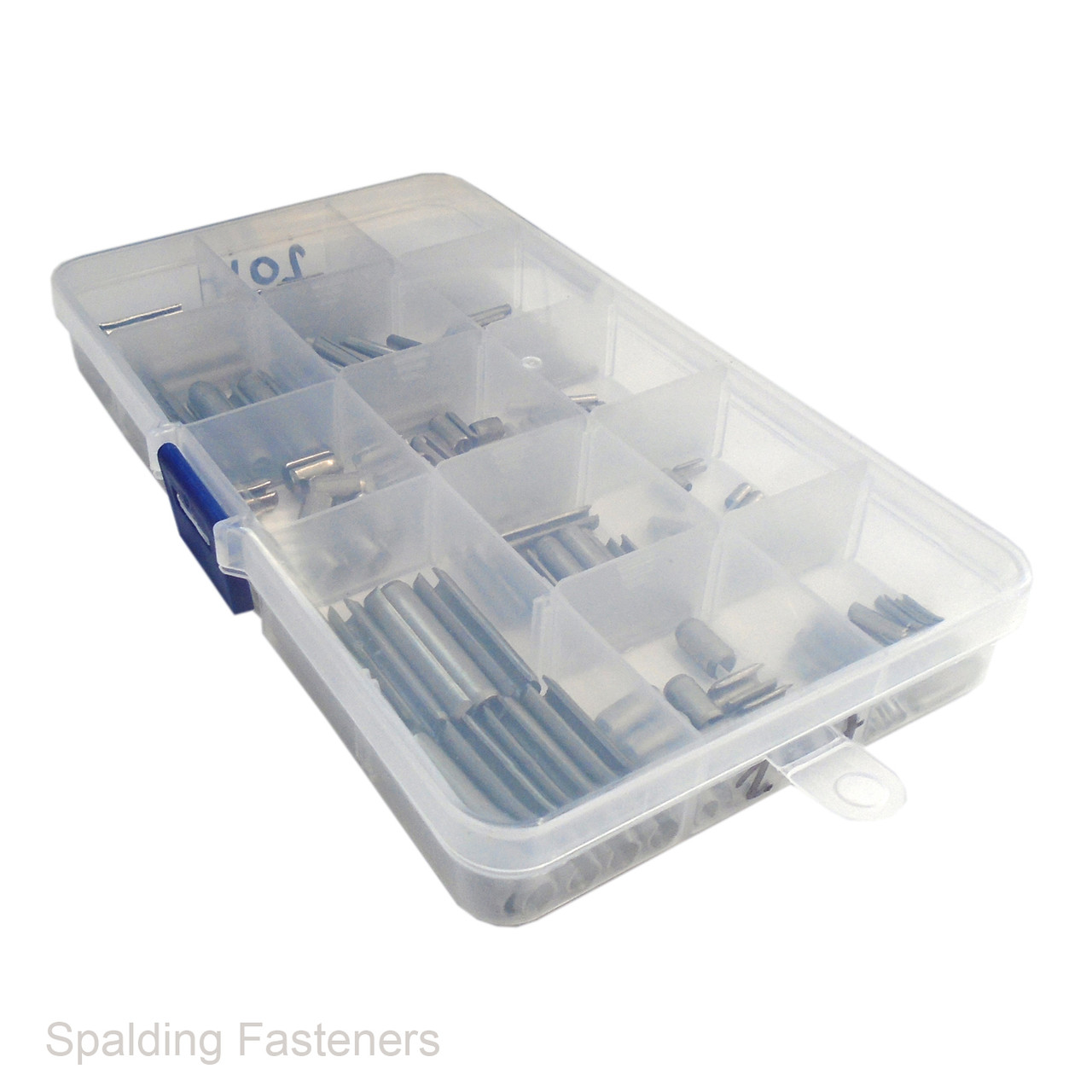

- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.
- Refill pack: Supplied without a storage box.
Select the nominal pin diameter and length to suit your assembly. Use an appropriate installation tool and a correctly prepared hole. Choose the boxed kit or refill pack when ordering.
