Product Description
Metric Stainless Steel E Clip Assortment – DIN 6799
An assortment of stainless steel E clips in ten metric sizes, providing a practical selection for assembly, maintenance and repairs. Available in a divided storage box or as a refill pack.

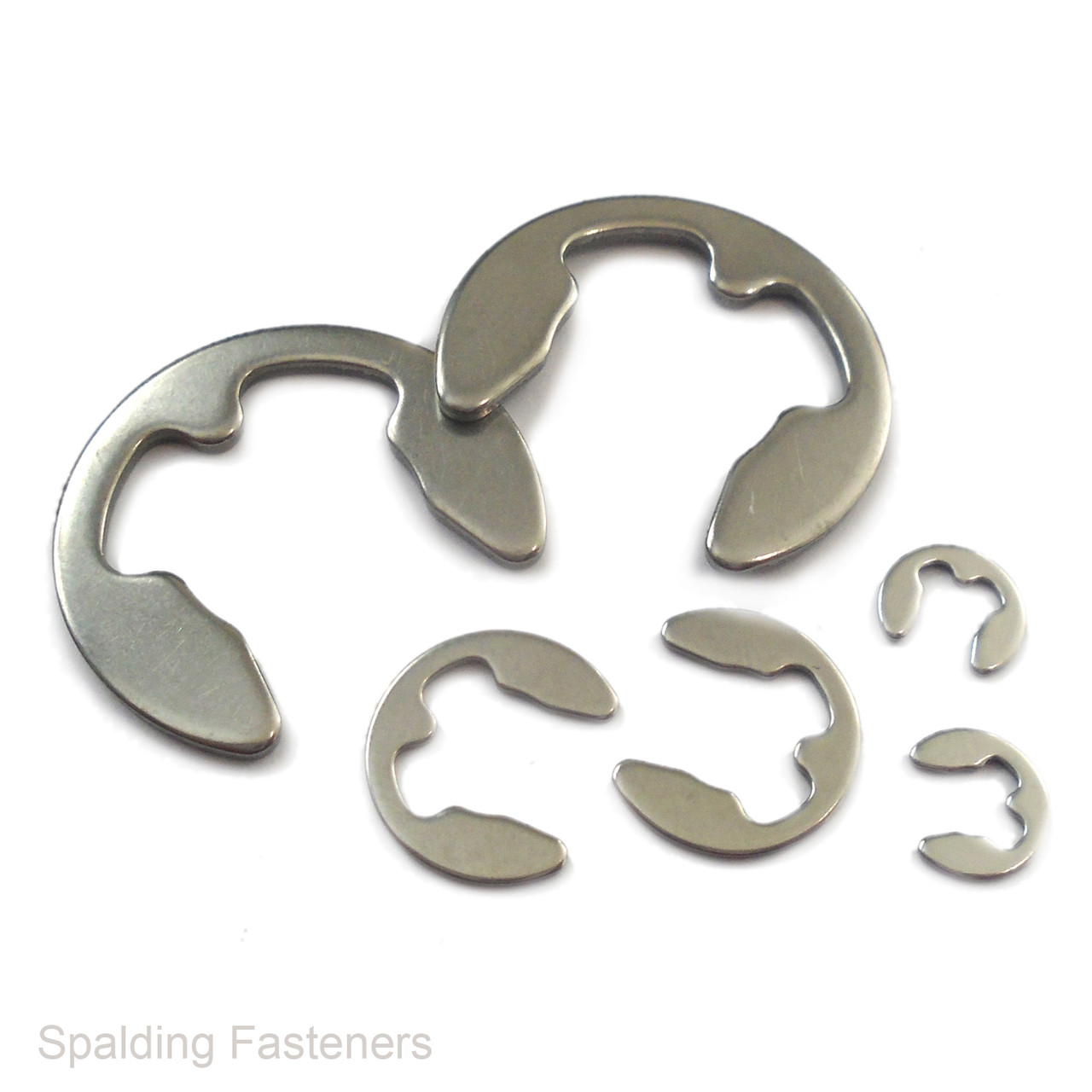

These E-shaped retaining rings fit radially into a machined shaft groove to help secure components against movement along the shaft.
Specifications
- Material: Stainless steel.
- Standard: DIN 6799.
- Type: External E-shaped retaining rings.
- Clip sizes: 1.2mm to 8mm.
- Installation: Radial fitting into a suitable shaft groove.
Contents and Dimensions
All dimensions are in millimetres. Clip size refers to the nominal groove diameter, not the shaft outside diameter. Shaft ranges are a selection guide; groove dimensions must also match the clip.
| Clip Size | Shaft Diameter Range | Maximum Outside Diameter | Thickness | Quantity |
|---|---|---|---|---|
| 1.2mm | 1.4–2.0mm | 3.25mm | 0.30mm | 15 |
| 1.5mm | 2.0–2.5mm | 4.25mm | 0.40mm | 20 |
| 1.9mm | 2.5–3.0mm | 4.80mm | 0.50mm | 25 |
| 2.3mm | 3.0–4.0mm | 6.30mm | 0.60mm | 25 |
| 3.2mm | 4.0–5.0mm | 7.30mm | 0.60mm | 25 |
| 4mm | 5.0–7.0mm | 9.30mm | 0.70mm | 30 |
| 5mm | 6.0–8.0mm | 11.30mm | 0.70mm | 30 |
| 6mm | 7.0–9.0mm | 12.30mm | 0.70mm | 30 |
| 7mm | 8.0–11.0mm | 14.30mm | 0.90mm | 30 |
| 8mm | 9.0–12.0mm | 16.30mm | 1.00mm | 30 |
Packaging Options

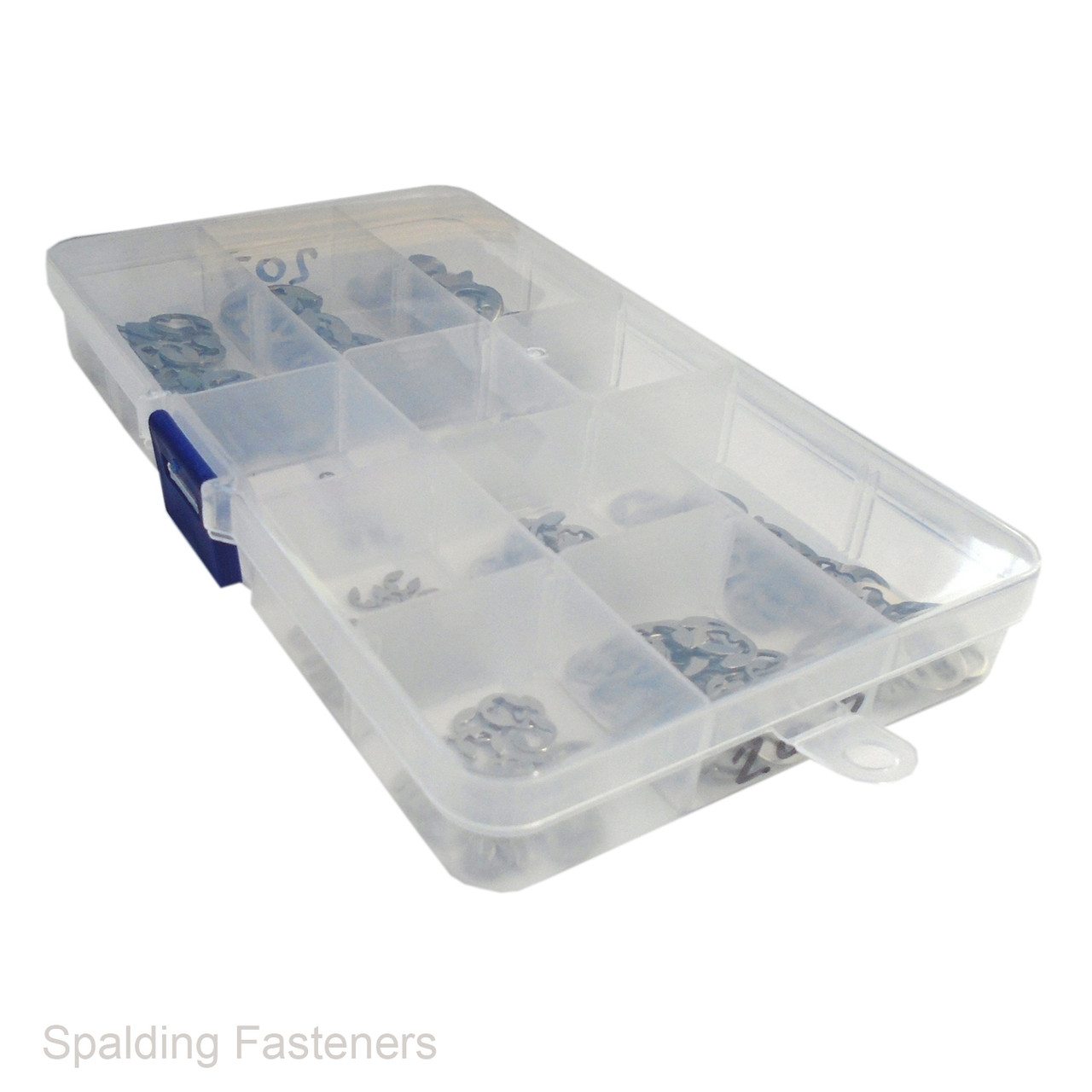

- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.
- Refill pack: Supplied without a storage box.
Match the retaining clip to the shaft and groove dimensions. Select the boxed kit or refill pack when ordering.
