Product Description
Zinc Plated Square Section Spring Washer Kit – 1,000 Pieces, DIN 7980
A 1,000-piece assortment of zinc plated steel square section spring washers to DIN 7980. Includes seven metric sizes from M3 to M12, providing a useful selection for assembly, maintenance and workshop repairs.

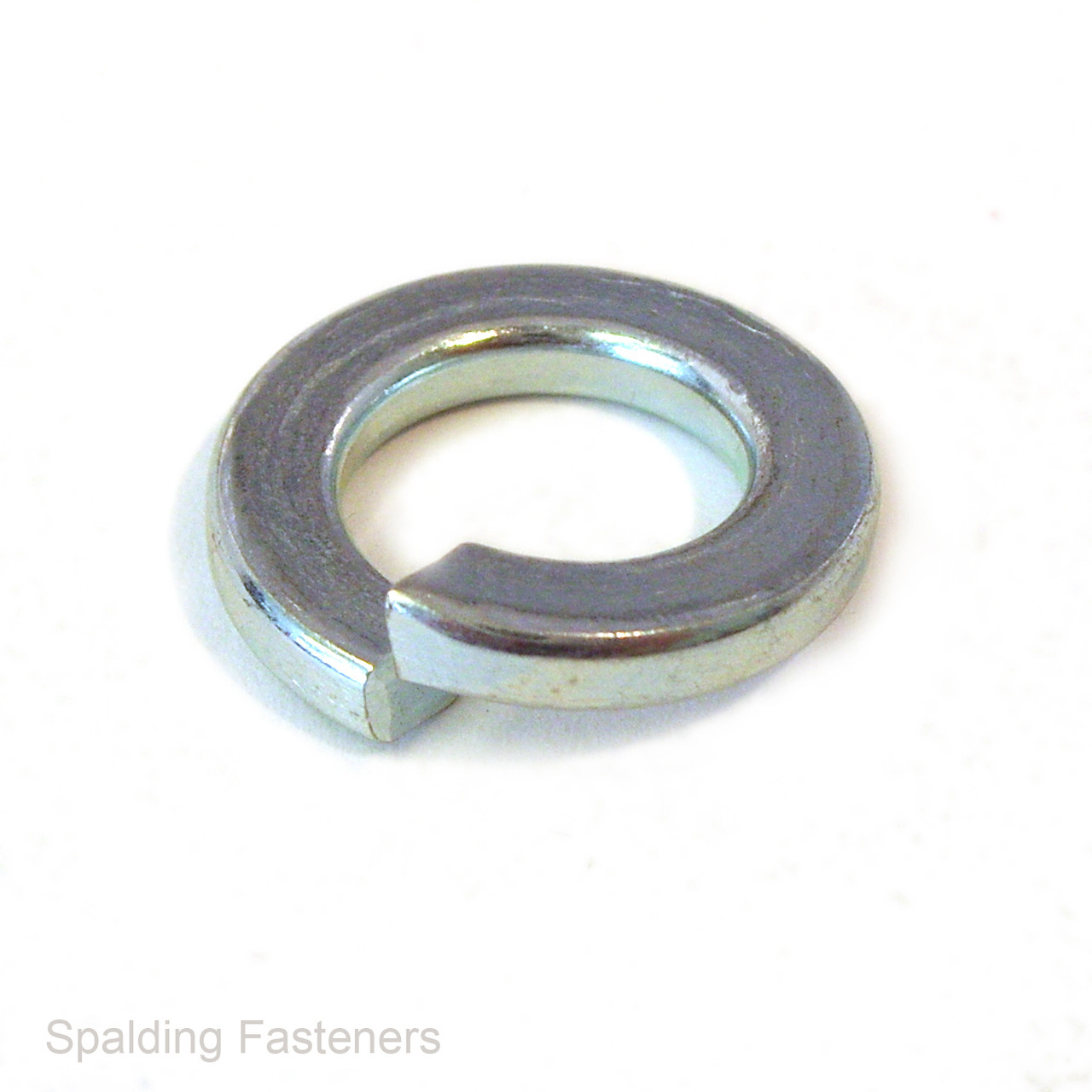

These split spring washers have a square section profile. Select the washer size to match the nominal diameter of the bolt or screw.
Specifications
- Material: Steel.
- Finish: Zinc plated for corrosion resistance.
- Standard: DIN 7980.
- Type: Square section split spring washers.
- Sizes: M3, M4, M5, M6, M8, M10 and M12.
- Total quantity: 1,000 washers.
Contents and Dimensions
All dimensions are in millimetres. Section thickness is the material thickness, not the overall height of the uncompressed washer. Manufacturing tolerances apply.
| Nominal Size | Internal Diameter Range | Outside Diameter | Section Thickness | Quantity |
|---|---|---|---|---|
| M3 | 3.1–3.4mm | 5.6mm | 1.0mm | 200 |
| M4 | 4.1–4.4mm | 7.0mm | 1.2mm | 200 |
| M5 | 5.1–5.4mm | 8.8mm | 1.6mm | 200 |
| M6 | 6.1–6.5mm | 9.9mm | 1.6mm | 200 |
| M8 | 8.1–8.5mm | 12.7mm | 2.0mm | 100 |
| M10 | 10.2–10.7mm | 16.0mm | 2.5mm | 50 |
| M12 | 12.2–12.7mm | 18.0mm | 2.5mm | 50 |
Packaging Options

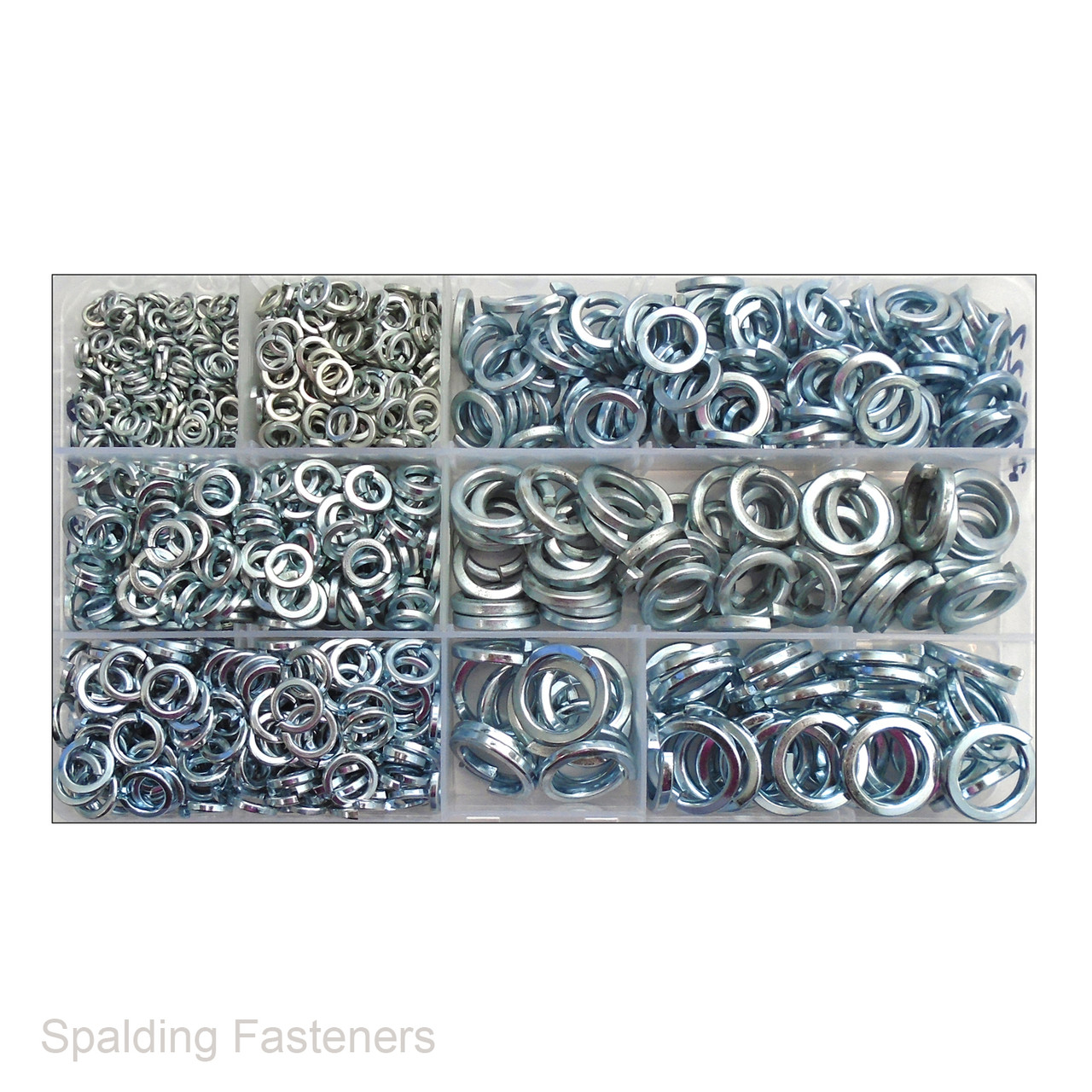

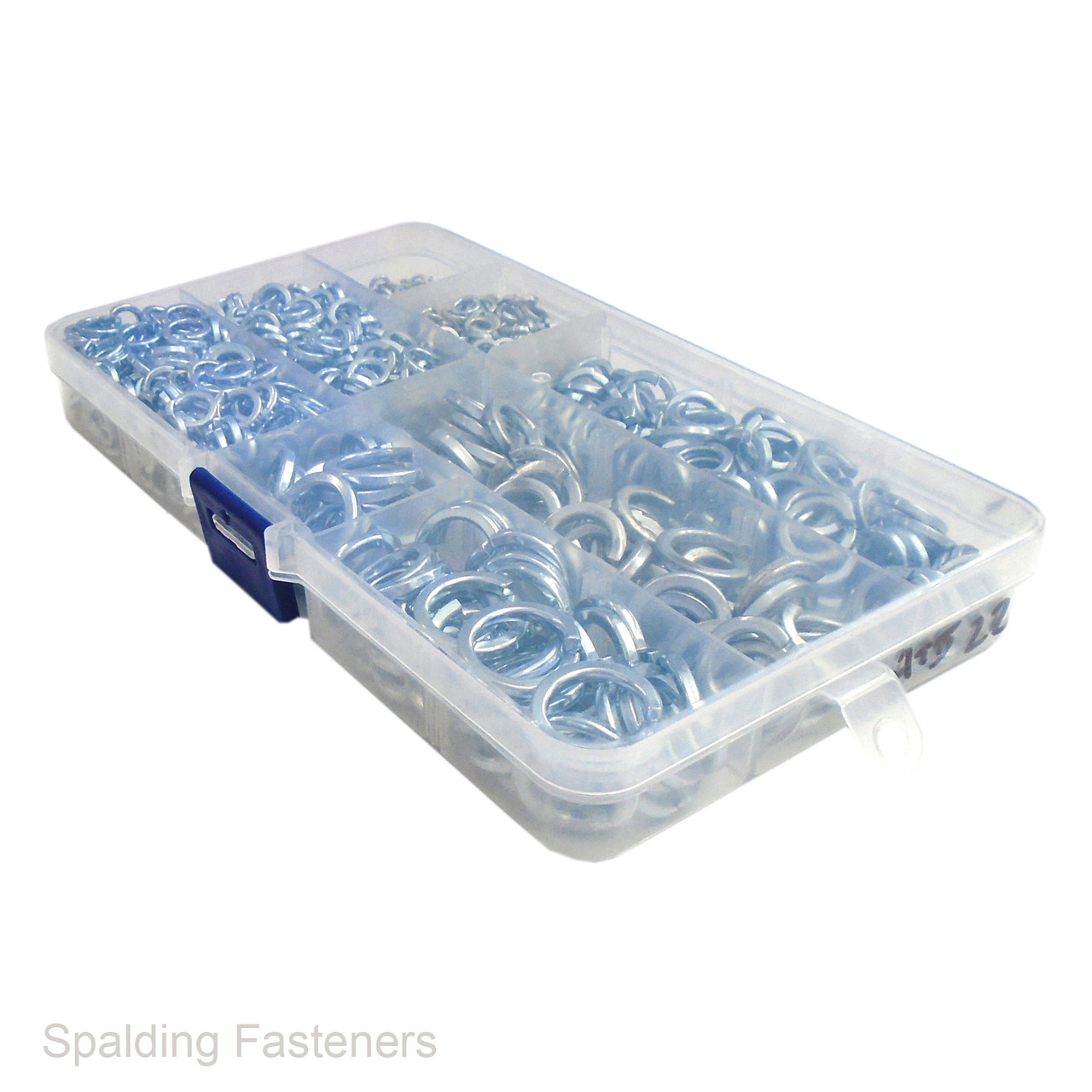

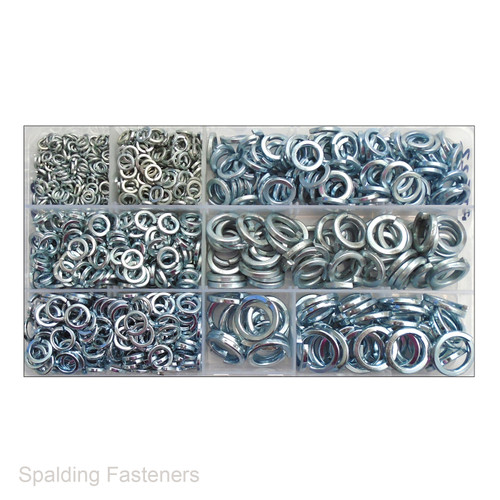

- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.

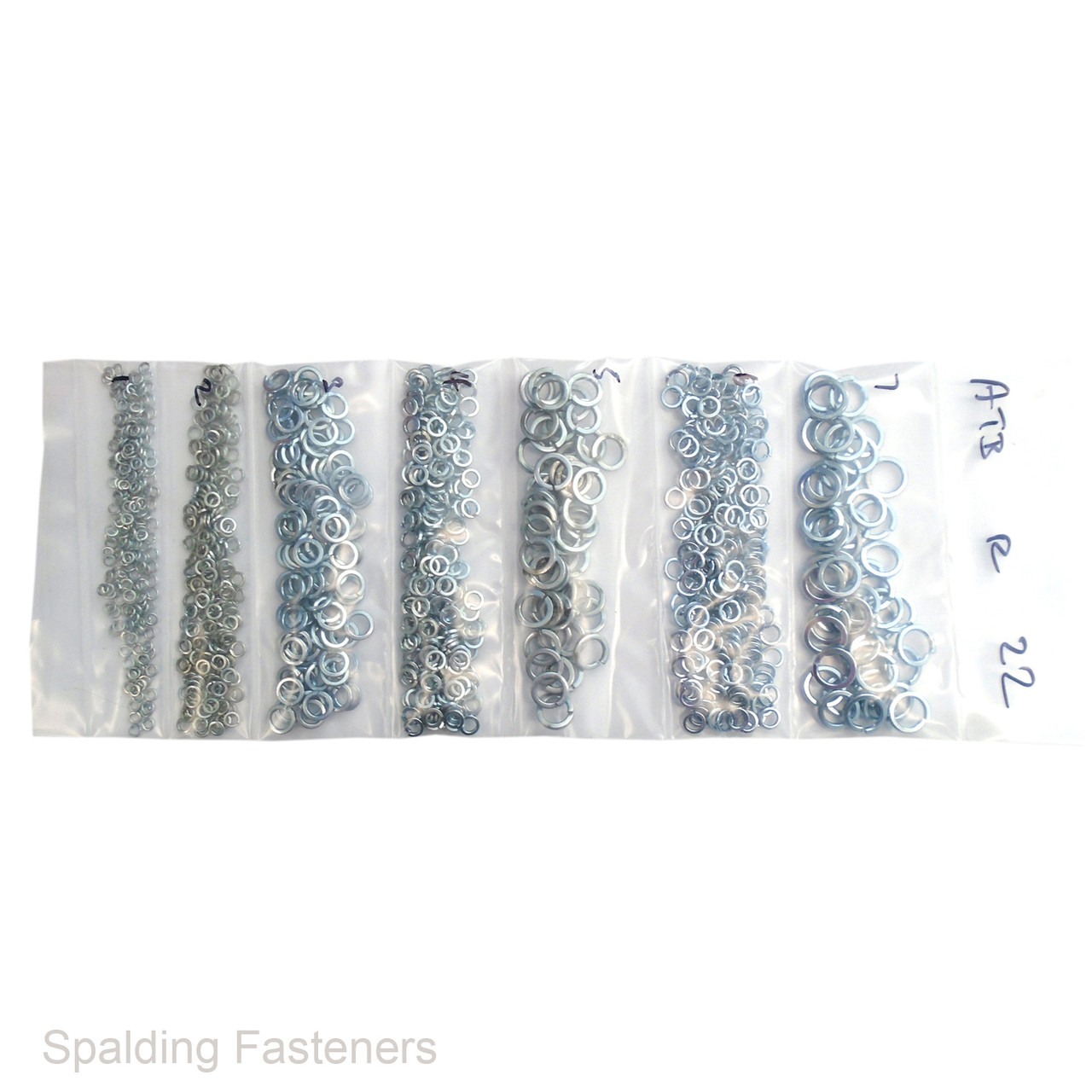

- Refill pack: Supplied without a storage box.
Select the boxed kit or refill pack when ordering.
