Product Description
A2 Stainless Steel Rivet Nut Assortment – 120 Pieces, M4–M8
A 120-piece assortment of A2 stainless steel large head grooved rivet nuts in M4, M5, M6 and M8 sizes. Also known as rivnuts or nutserts, these inserts provide an internal thread in suitable thin sheet materials where access is available from one side.
The grooved body helps resist rotation once correctly installed, while the large head provides a bearing surface against the panel. Use a compatible rivet nut setting tool with the correct threaded mandrel.
Specifications
- Material: A2 stainless steel for corrosion resistance.
- Type: Large head grooved body rivet nuts.
- Thread: Metric coarse.
- Sizes: M4, M5, M6 and M8.
- Total quantity: 120 inserts.
Kit Contents and Grip Ranges
Grip range is the material thickness that the rivet nut is designed to clamp during installation. All measurements are in millimetres.
| Thread Size | Thread Pitch | Grip Range | Quantity |
|---|---|---|---|
| M4 | 0.7mm | 0.5–2.0mm | 20 |
| M5 | 0.8mm | 0.3–3.0mm | 50 |
| M6 | 1.0mm | 0.5–3.0mm | 30 |
| M8 | 1.25mm | 0.5–3.0mm | 20 |
Installation
Select the insert to suit the required screw thread and panel thickness. The M-size identifies the internal thread, not the installation hole diameter. Prepare the correct hole for the insert and set it using a compatible rivet nut tool.
Packaging Options

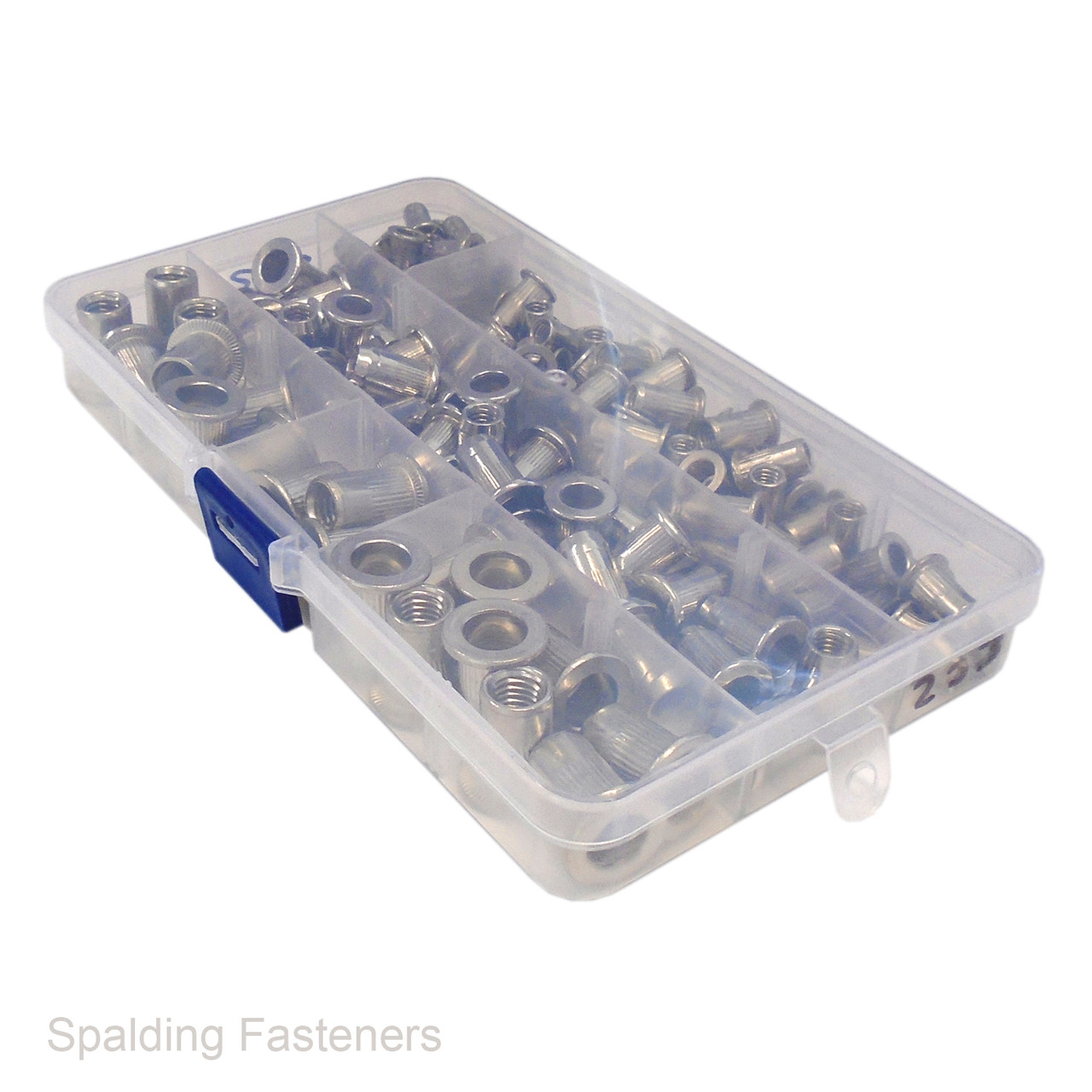

- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.

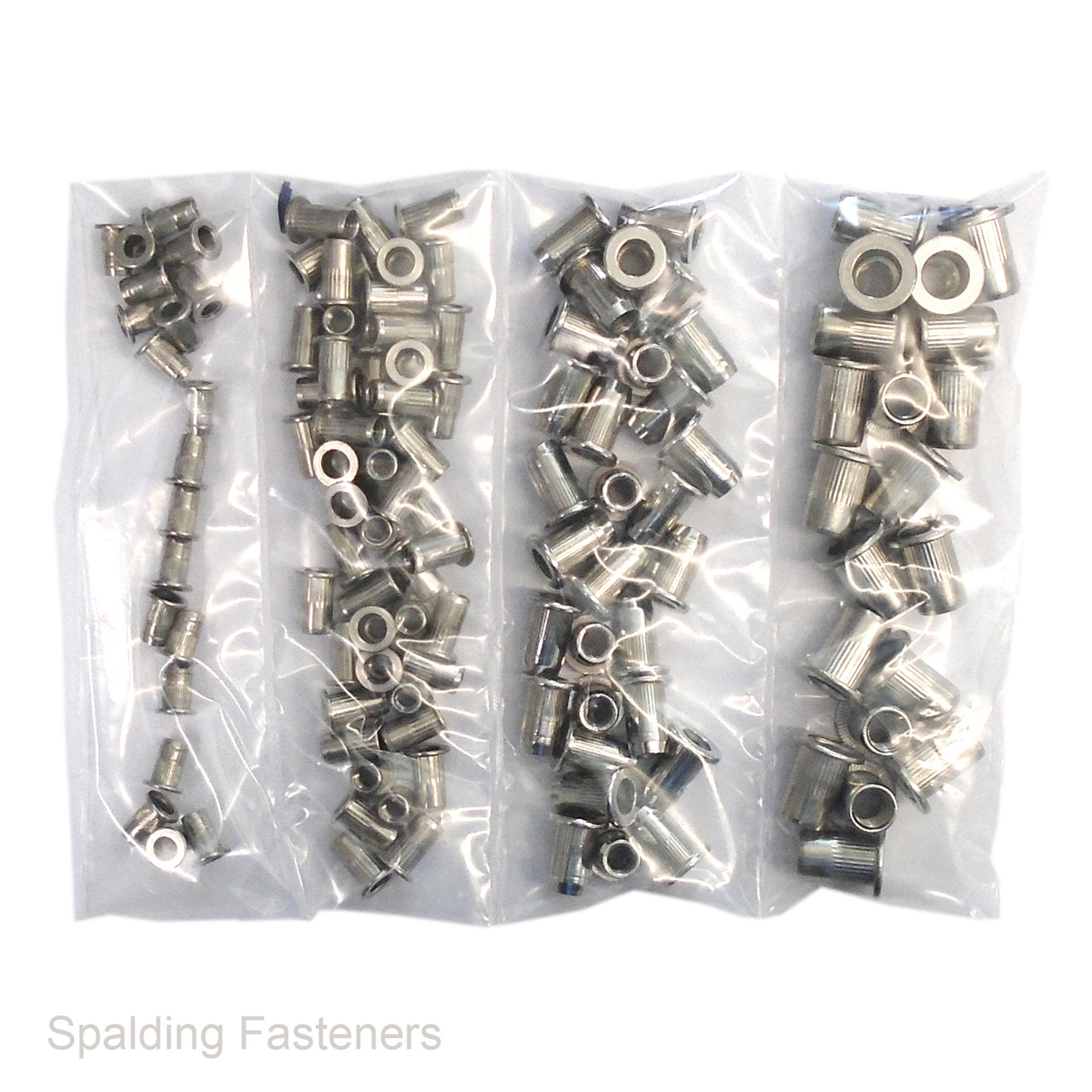

- Refill pack: Supplied without a storage box.
Select the boxed kit or refill pack when ordering.
