Product Description

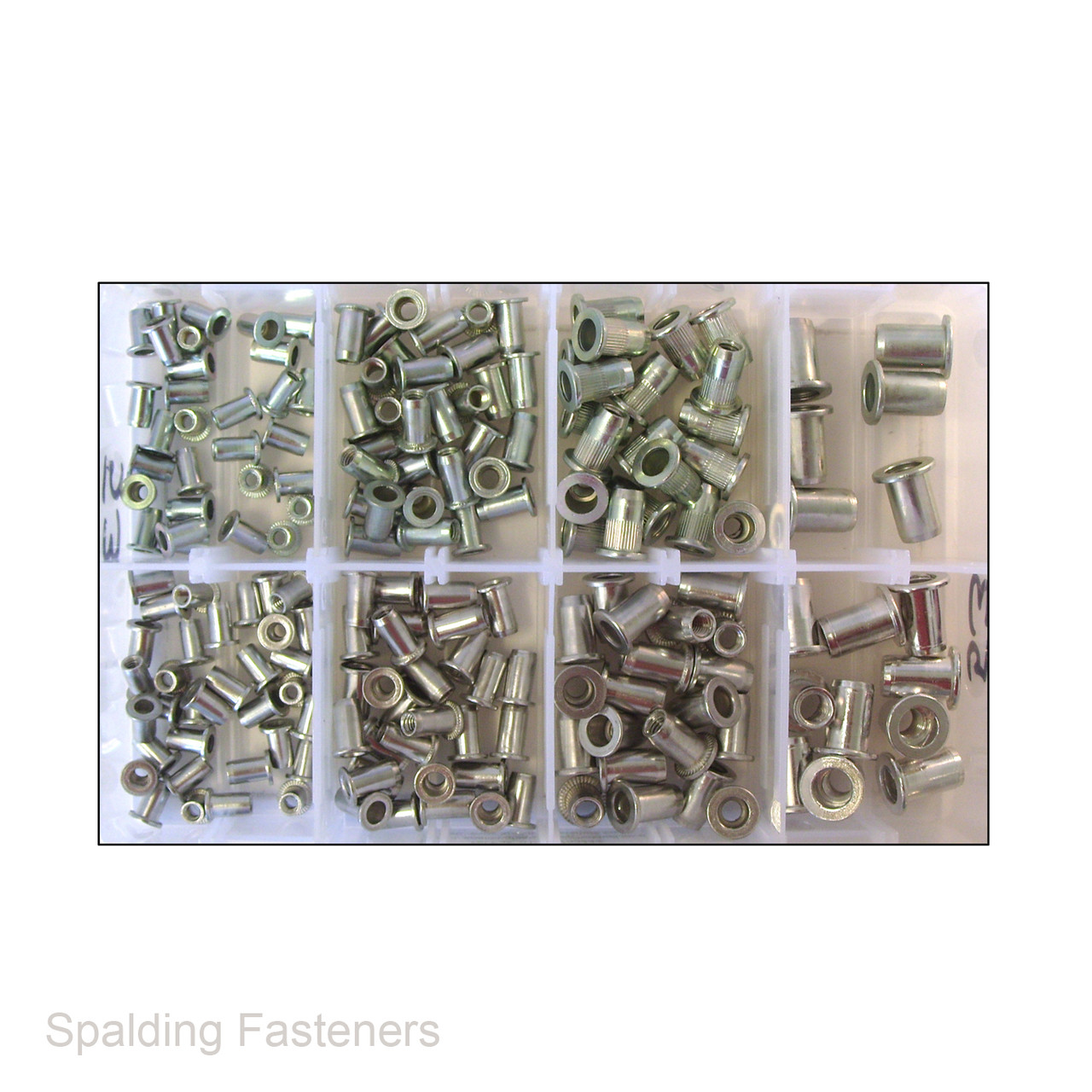

180 Assorted Aluminium & Zinc Plated Steel Rivet Nuts M4–M8

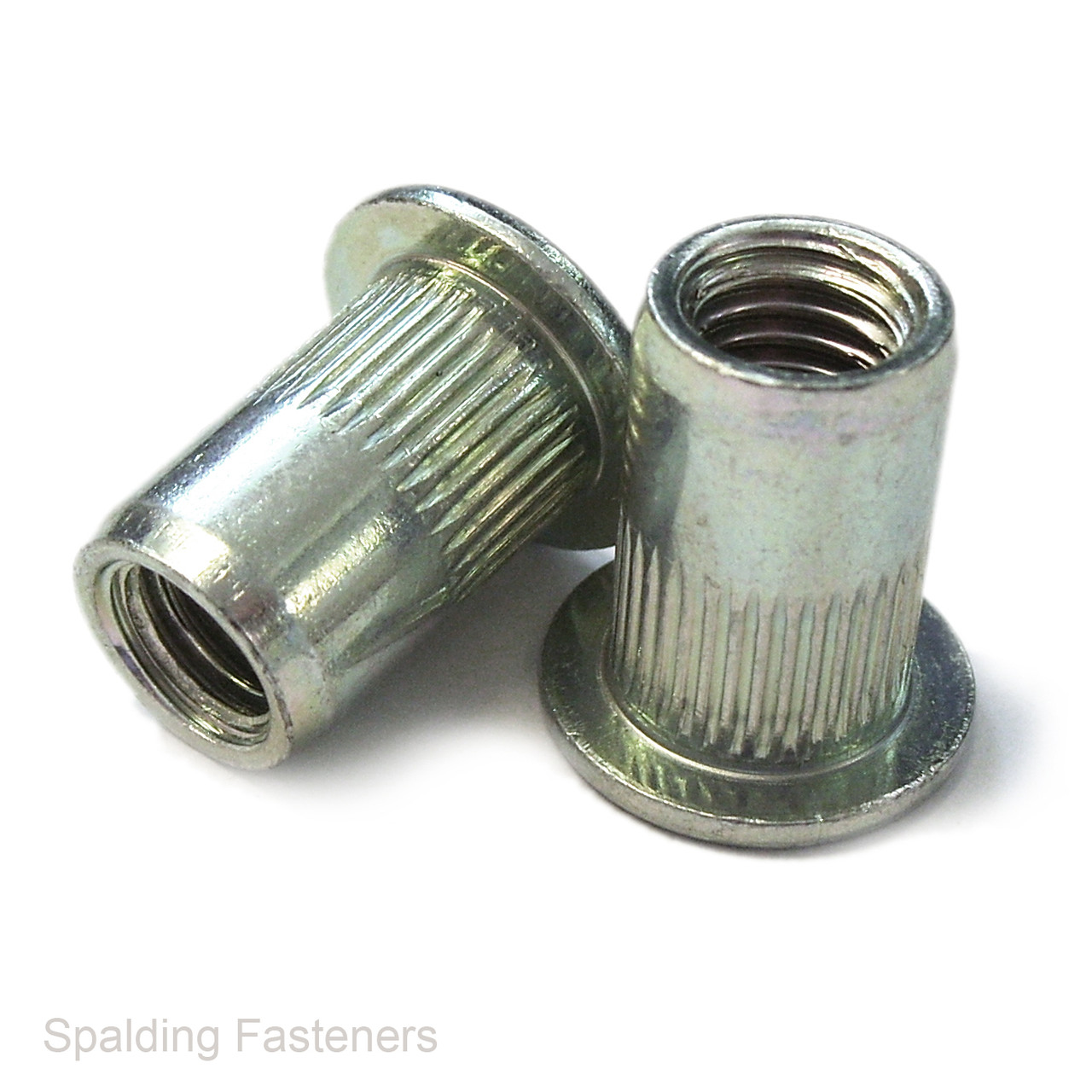

A 180-piece assortment of large head rivet nuts, also known as rivnuts or nutserts. Includes aluminium and zinc plated steel inserts in four metric coarse thread sizes for creating threaded fixing points in sheet material and hollow sections.
Product Specifications
- Materials: Aluminium and zinc plated steel.
- Head style: Large head.
- Fastener type: Threaded rivet nut.
- Thread: Metric coarse.
- Sizes included: M4, M5, M6 and M8.
- Steel rivet nuts: 86 pieces.
- Aluminium rivet nuts: 94 pieces.
- Total quantity: 180 rivet nuts.
- Installation: Requires a compatible rivet nut setting tool.
Assortment Contents
| Thread Size | Thread Pitch | Zinc Plated Steel | Aluminium | Total |
|---|---|---|---|---|
| M4 | 0.7mm | 30 | 34 | 64 |
| M5 | 0.8mm | 30 | 30 | 60 |
| M6 | 1.0mm | 20 | 20 | 40 |
| M8 | 1.25mm | 6 | 10 | 16 |
| Total | 86 | 94 | 180 | |
Sizes refer to the internal thread for the mating screw or bolt. They do not indicate the required installation hole diameter.
Packaging Options
- Boxed assortment: Supplied in a plastic storage box with dividers and a clip-down lid.
- Refill pack: Supplied without a storage box.
Fitting Information
Select the material, thread size and grip range appropriate for the joint. Prepare the correct installation hole, remove burrs and seat the head against the surface. Set the insert using a compatible rivet nut tool with the matching threaded mandrel and nosepiece.
