Product Description
UNF Grade 5 Zinc Plated Full & Nyloc Nut Kit – 163 Pieces
A 163-piece assortment of Grade 5 zinc plated steel nuts, combining plain hexagon full nuts and nylon insert locking nuts in four UNF thread sizes. A practical selection for imperial threaded assemblies, maintenance and repairs.

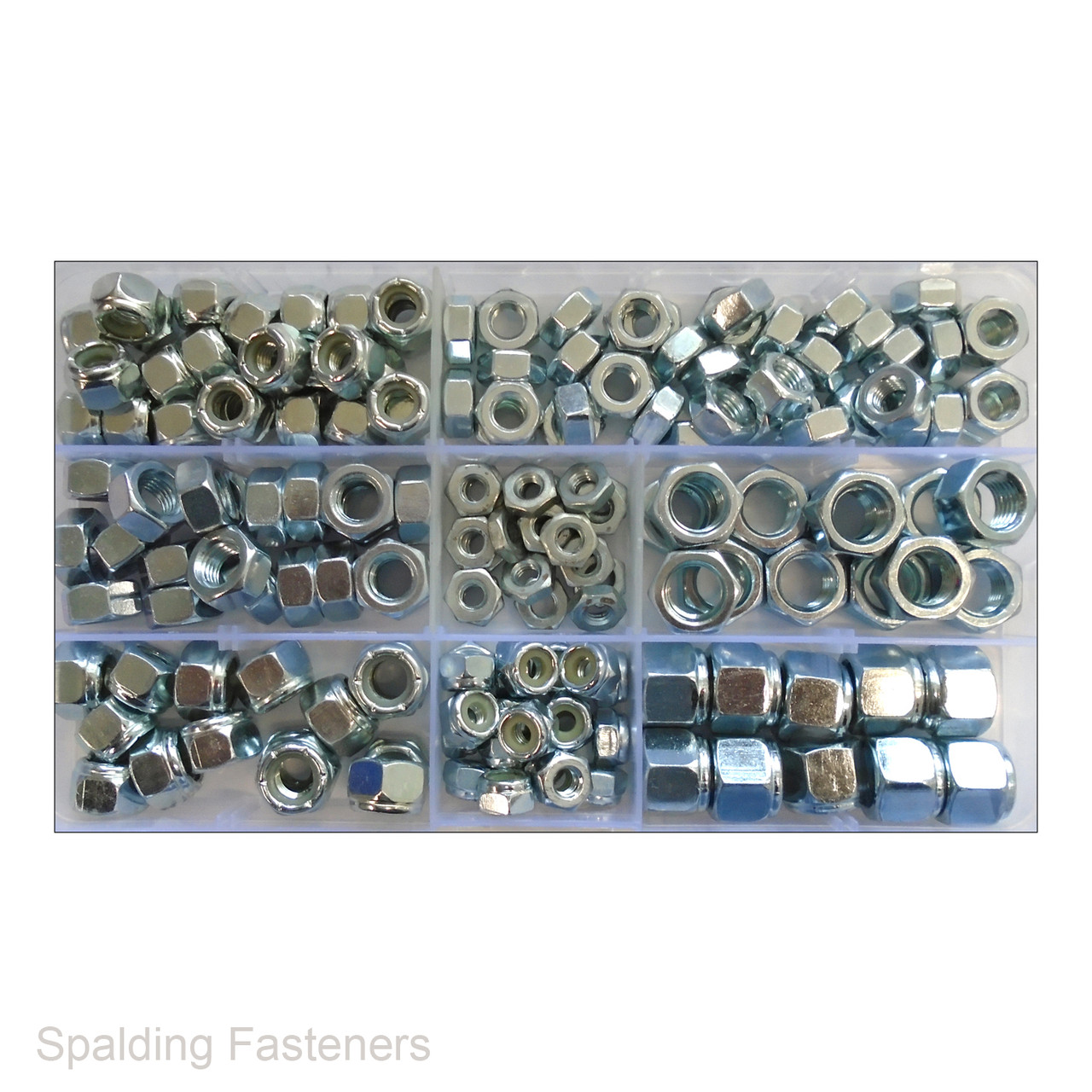

Includes 93 full nuts and 70 nyloc nuts, covering No.10-32, 1/4-28, 5/16-24 and 3/8-24 UNF threads.
Specifications
- Material: Steel.
- Grade: 5.
- Finish: Zinc plated.
- Nut types: Plain hexagon full nuts and nylon insert locking nuts.
- Nyloc pattern: Type P for the 1/4, 5/16 and 3/8 inch sizes.
- Thread: UNF – Unified National Fine.
- Total quantity: 163 nuts.
Kit Contents and Thread Details
TPI means threads per inch.
| Thread Size | TPI | Full Nuts | Nyloc Nuts |
|---|---|---|---|
| No.10-32 UNF | 32 | 20 | 20 |
| 1/4"-28 UNF | 28 | 40 | 25 |
| 5/16"-24 UNF | 24 | 20 | 15 |
| 3/8"-24 UNF | 24 | 13 | 10 |
Packaging Options

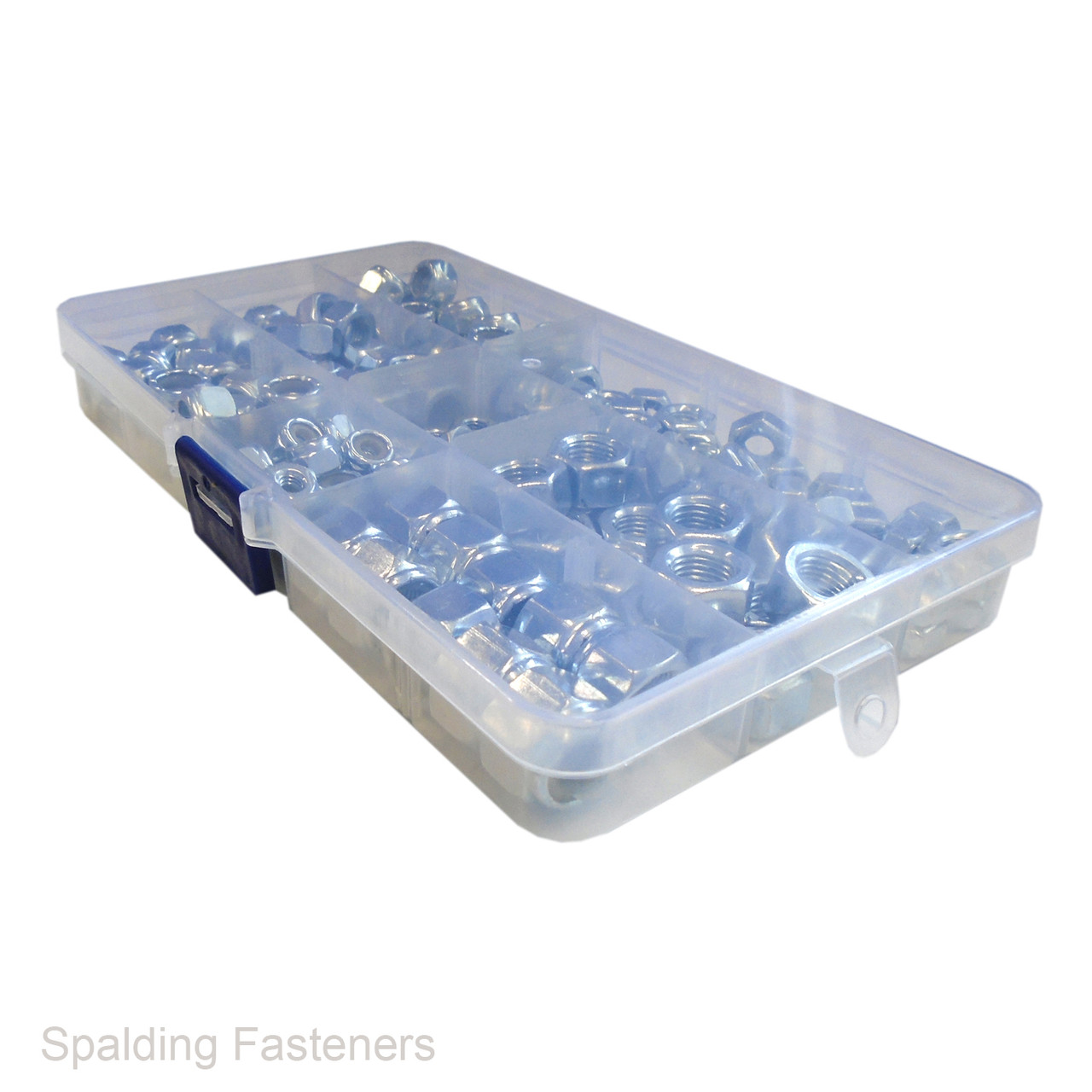

- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.
- Refill pack: Supplied without a storage box.
Use with fasteners of the matching UNF diameter and TPI. When fitting nyloc nuts, ensure the mating thread engages fully through the nylon insert. Select the boxed kit or refill pack when ordering.
