Product Description

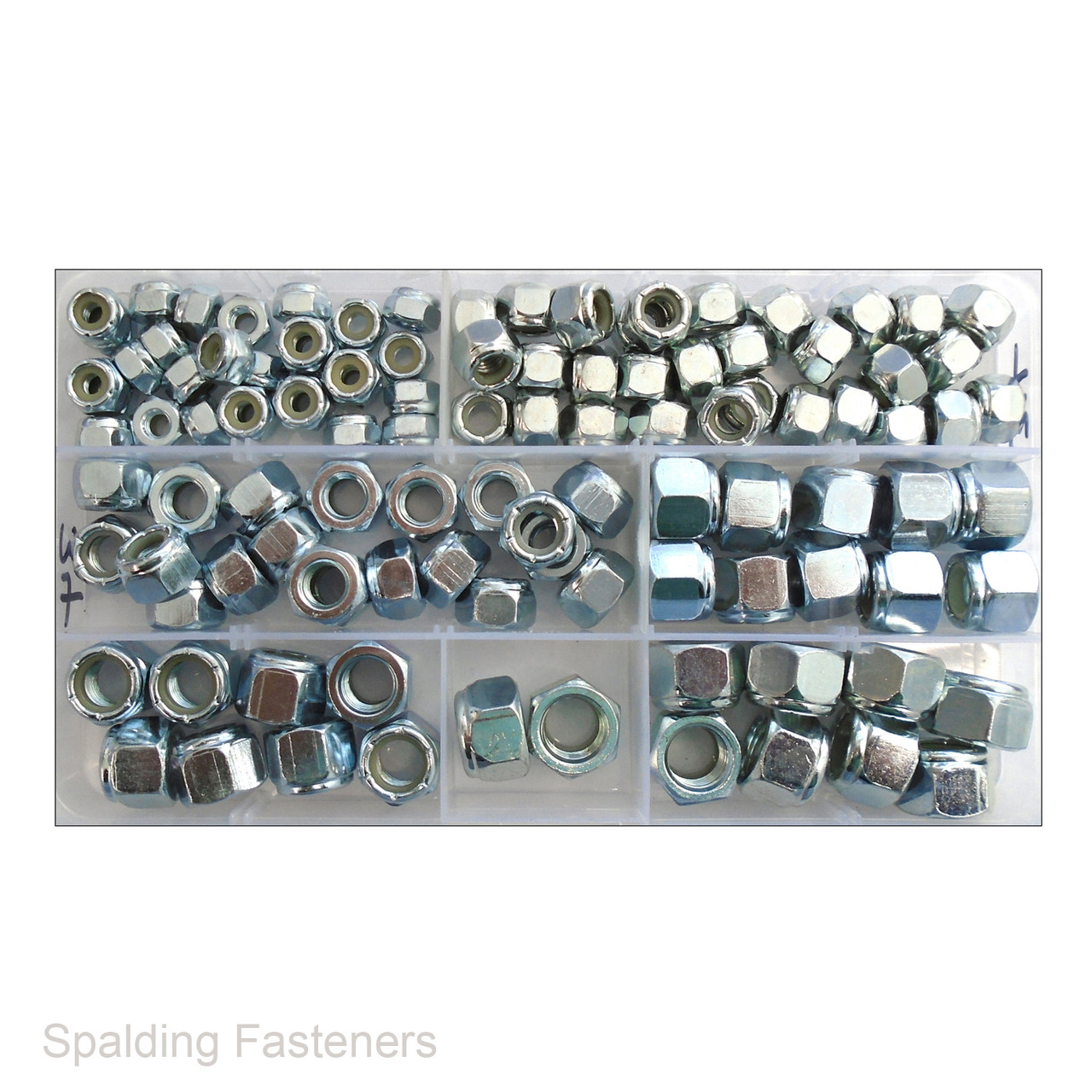

UNF Grade 5 Zinc Plated Nyloc Nut Assortment
An assortment of Grade 5 zinc plated steel nyloc nuts in five UNF thread sizes, from No.10-32 to 7/16-20. A practical selection for imperial threaded assemblies, maintenance and repairs requiring nylon insert locking nuts.
The nylon insert grips the mating thread to help resist loosening. The external hexagon allows tightening with a matching spanner or socket.
Specifications
- Material: Steel.
- Grade: 5.
- Finish: Zinc plated.
- Type: Hexagon nuts with nylon locking inserts.
- Nyloc pattern: Type P for the 1/4, 5/16, 3/8 and 7/16 inch sizes.
- Thread: UNF – Unified National Fine.
Kit Contents and Thread Details
TPI means threads per inch.
| Thread Size | TPI | Quantity |
|---|---|---|
| No.10-32 UNF | 32 | 30 |
| 1/4"-28 UNF | 28 | 30 |
| 5/16"-24 UNF | 24 | 20 |
| 3/8"-24 UNF | 24 | 18 |
| 7/16"-20 UNF | 20 | 10 |
Packaging Options
- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.
- Refill pack: Supplied without a storage box.
Use with fasteners of the matching UNF diameter and TPI. Ensure the mating thread engages fully through the nylon insert. Select the boxed kit or refill pack when ordering.
