Product Description

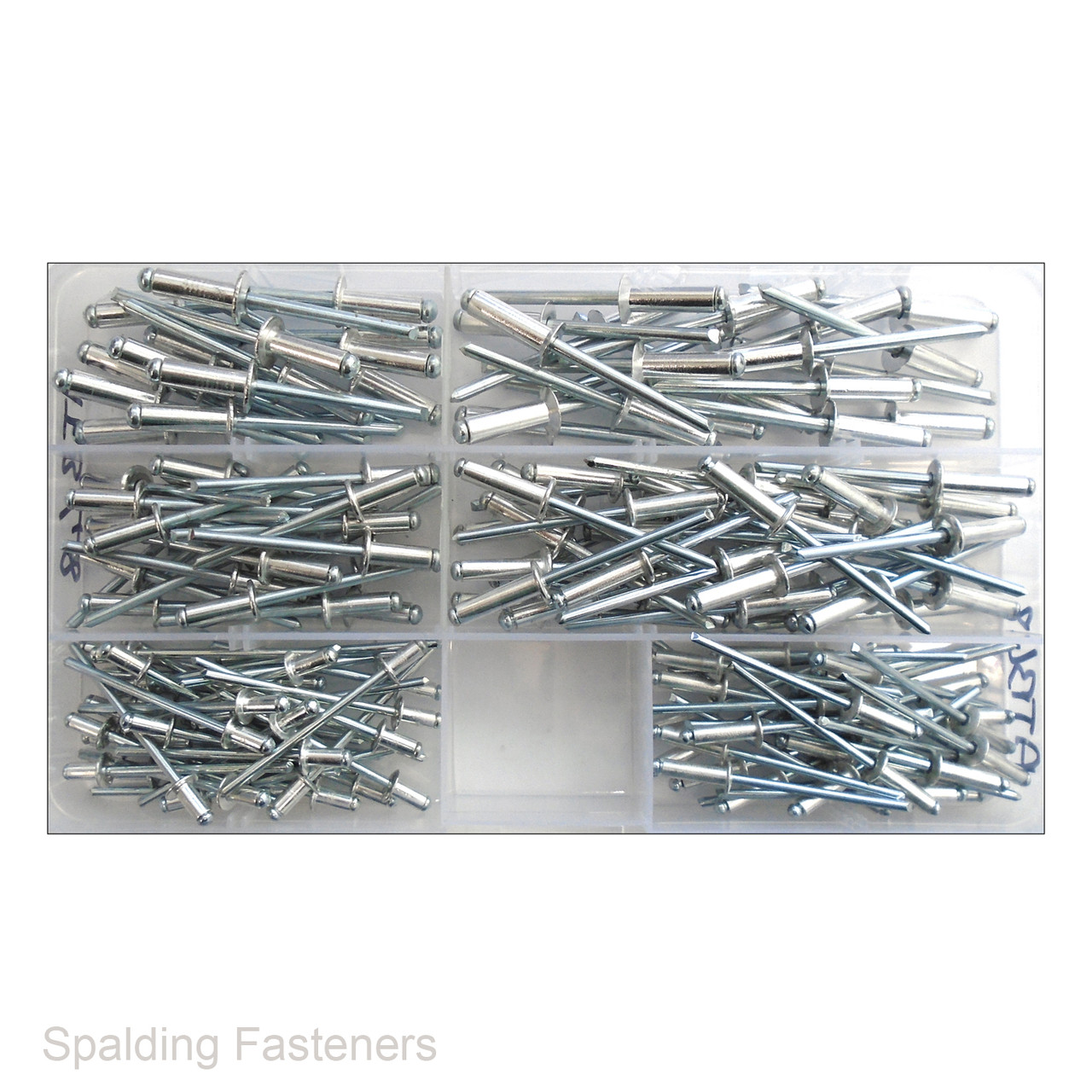

160 Piece Aluminium Dome Head Pop Rivet Assortment
A practical assortment of standard dome head blind rivets for sheet metal repairs, panel assembly and general fabrication. Each rivet combines an aluminium body with a steel mandrel.
Blind rivets install from one side of the joint using a suitable riveting tool, making them useful where rear access is restricted.
Specifications
- Type: Standard dome head blind / pop rivets
- Body material: Aluminium
- Mandrel material: Steel
- Diameters: 3.2mm, 4mm and 4.8mm
- Number of sizes: 6
- Total contents: 160 rivets
Kit Contents and Dimensions
| Diameter | Body Length | Grip Range | Head Diameter | Drill Size | Quantity |
|---|---|---|---|---|---|
| 3.2mm | 6mm | 1–3mm | 6.5mm | 3.3mm | 35 |
| 3.2mm | 10mm | 5–7mm | 6.5mm | 3.3mm | 30 |
| 4mm | 10mm | 4–6mm | 8mm | 4.1mm | 25 |
| 4mm | 14mm | 8–10mm | 8mm | 4.1mm | 35 |
| 4.8mm | 14mm | 7–9mm | 9mm | 4.9mm | 15 |
| 4.8mm | 16mm | 11–13mm | 9mm | 4.9mm | 20 |
Selecting the Correct Rivet
The grip range is the combined thickness of the materials being joined. Measure the complete material stack and select a rivet whose grip range covers that thickness. Body length is measured from beneath the dome head to the end of the rivet body, excluding the mandrel.
Packaging Options

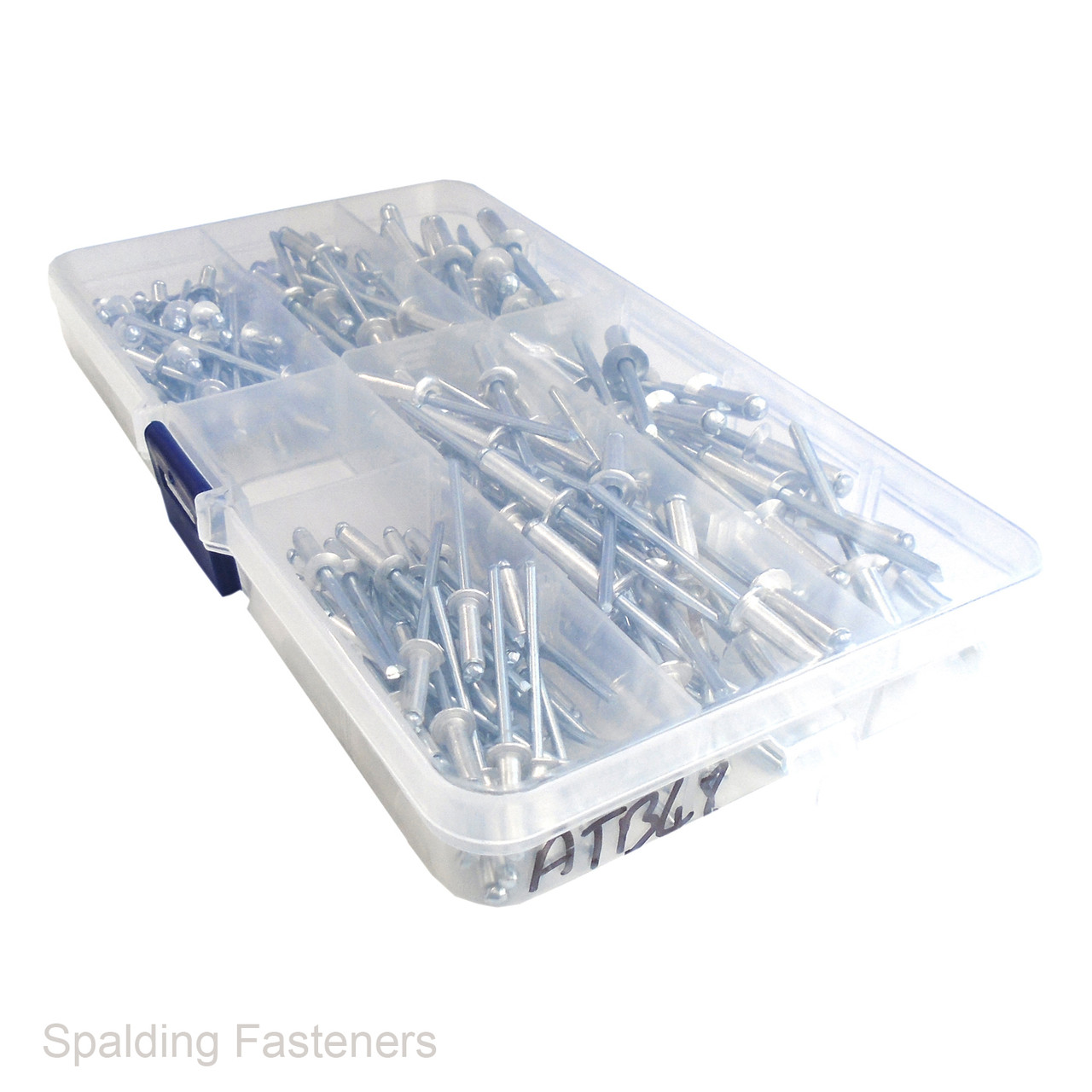

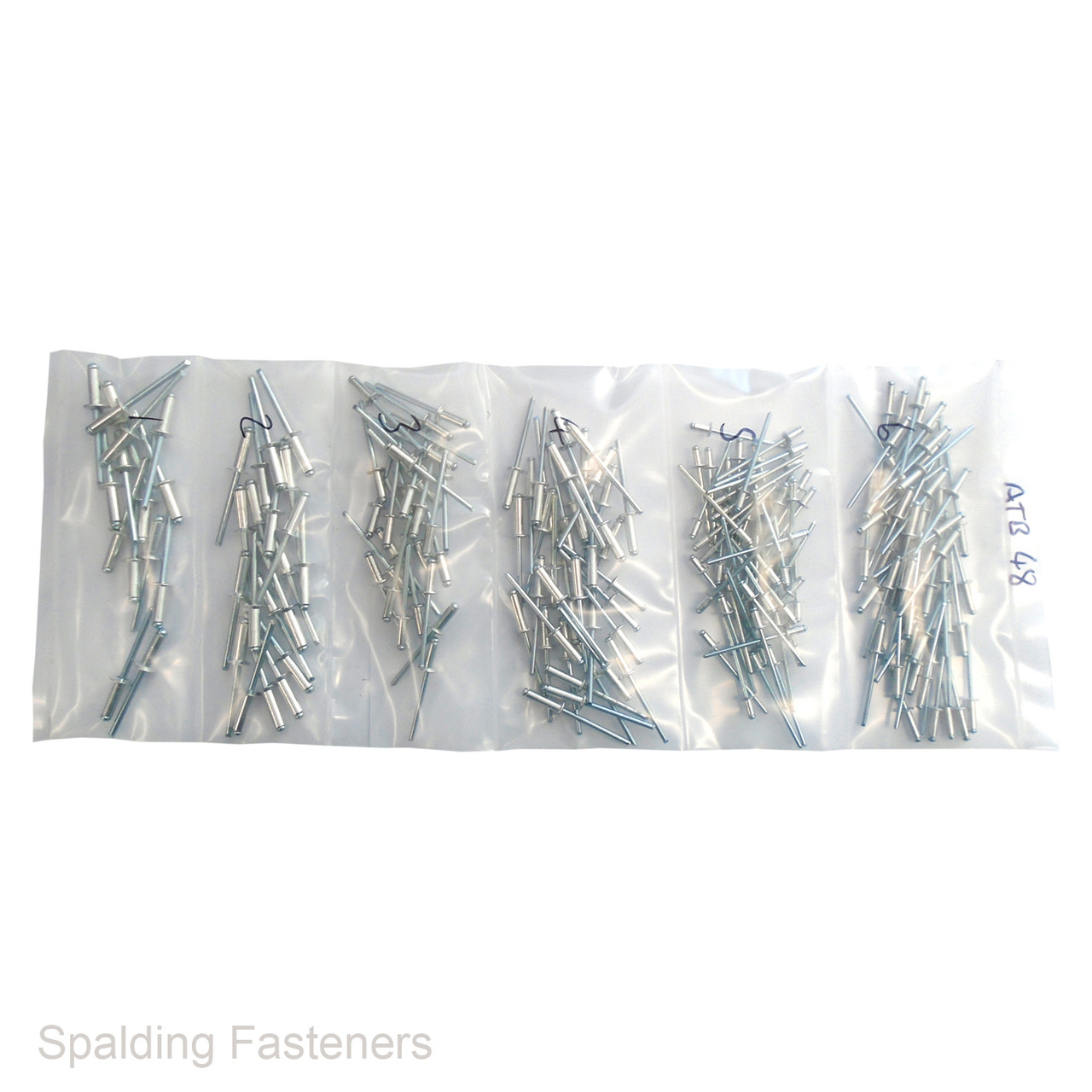

Choose a plastic storage box with dividers and a clip-down lid, or a refill pack supplied without a box.
Comes in handy plastic box with dividers and clip down lid OR refill pack (no box)
| A | B | C | D | E | F |
| 3.2mm | 6mm | 6.5mm | 1mm | 3mm | 3.3mm |
| 3.2mm | 10mm | 6.5mm | 5mm | 7mm | 3.3mm |
| 4.0mm | 14mm | 8mm | 8mm | 10mm | 4.1mm |
| 4.0mm | 10mm | 8mm | 4mm | 6mm | 4.1mm |
| 4.8mm | 16mm | 9mm | 11mm | 13mm | 4.9mm |
| 4.8mm | 14mm | 9mm | 7mm | 9mm | 4.9mm |
