Product Description
M5 A2 Stainless Countersunk Pozi Screw, Nut & Washer Kit
A practical M5 fastener assortment for repairs, maintenance and assembly. Includes A2 stainless steel countersunk Pozi machine screws in six lengths, matching plain and nyloc nuts, and flat washers.

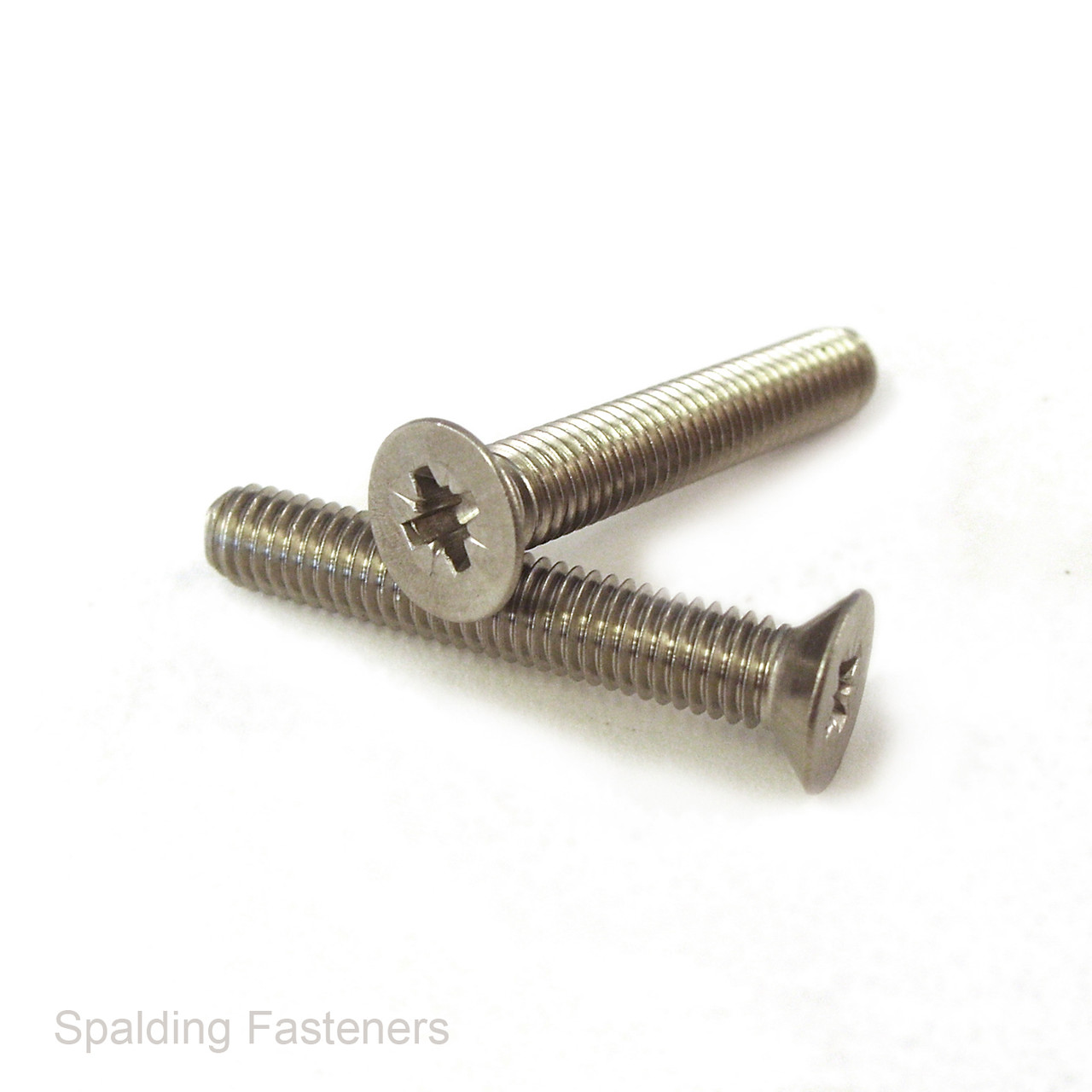

The countersunk heads sit flush in suitably countersunk holes, providing a neat finish. Each screw uses a PZ2 Pozi drive and an M5 x 0.8mm metric coarse thread.
Specifications
- Material: A2 stainless steel
- Screw standard: DIN 965
- Thread size: M5
- Thread pitch: 0.8mm metric coarse
- Head style: Flat countersunk
- Drive: PZ2 Pozi
- Head diameter: 8.84–9.20mm
- Maximum head height: 2.50mm
- Screw lengths: 16mm to 50mm

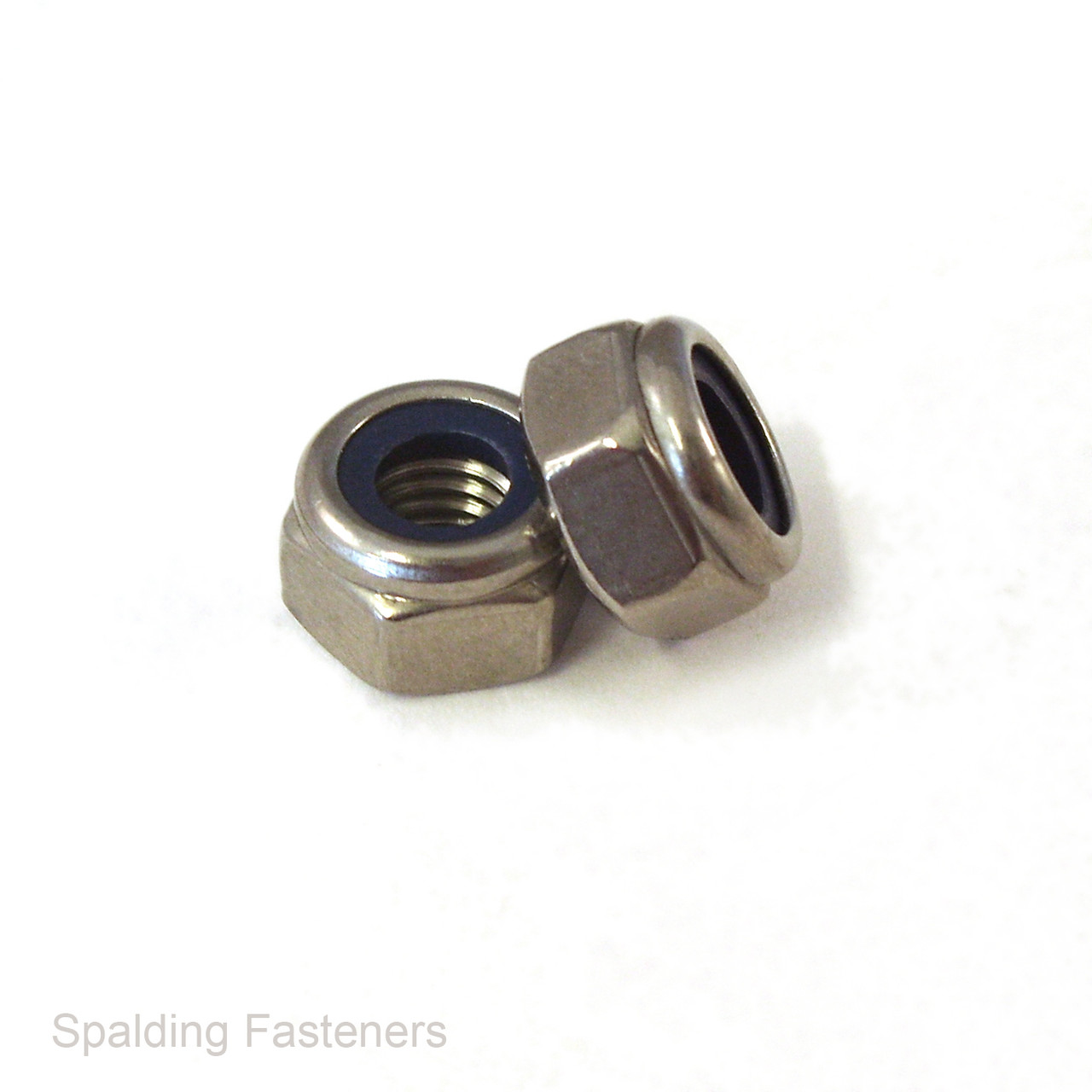

- Nut types: Plain nuts and nylon insert locking nuts
- Washers: M5 flat washers
Kit Contents
| Component | Size | Quantity |
|---|---|---|
| Countersunk Pozi screws | M5 x 16mm | 15 |
| Countersunk Pozi screws | M5 x 20mm | 15 |
| Countersunk Pozi screws | M5 x 25mm | 15 |
| Countersunk Pozi screws | M5 x 30mm | 10 |
| Countersunk Pozi screws | M5 x 40mm | 10 |
| Countersunk Pozi screws | M5 x 50mm | 8 |
| Plain nuts | M5 | 37 |
| Nyloc nuts | M5 | 36 |
| Flat washers | M5 | 73 |
Measuring Screw Length
Countersunk screw lengths are measured over the complete screw, including the head.
Packaging Options

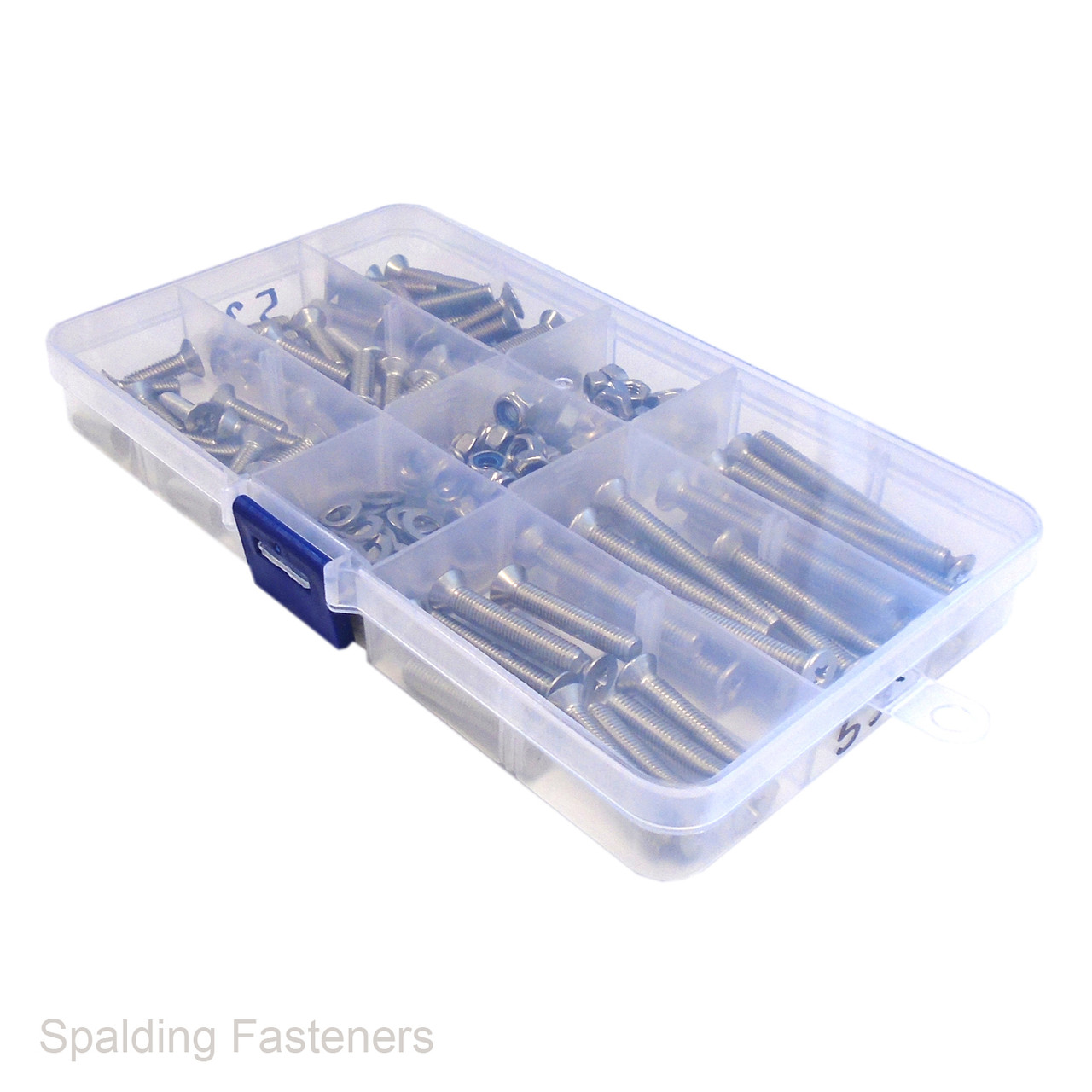

Choose a plastic storage box with dividers and a clip-down lid, or a refill pack supplied without a box.
