Product Description

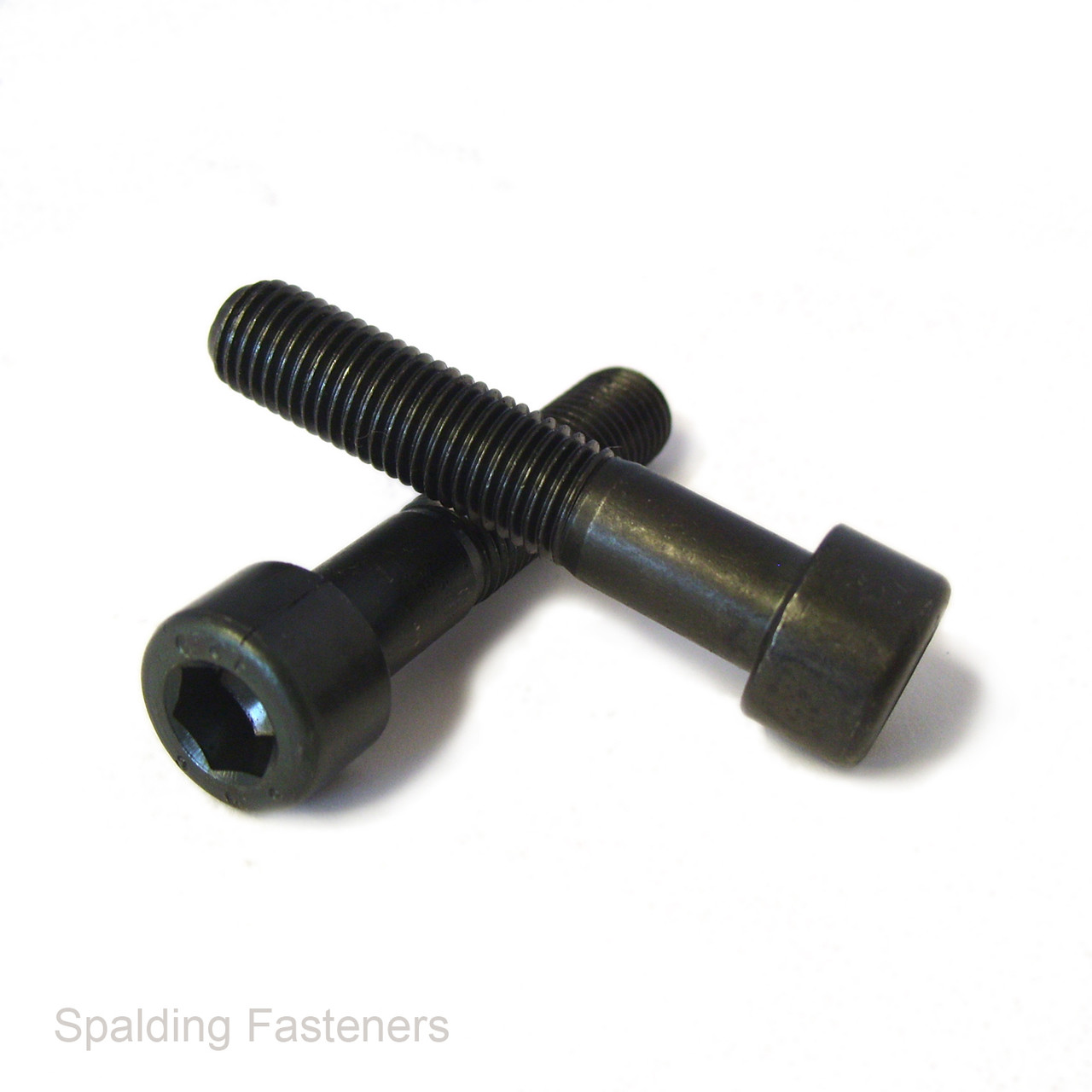

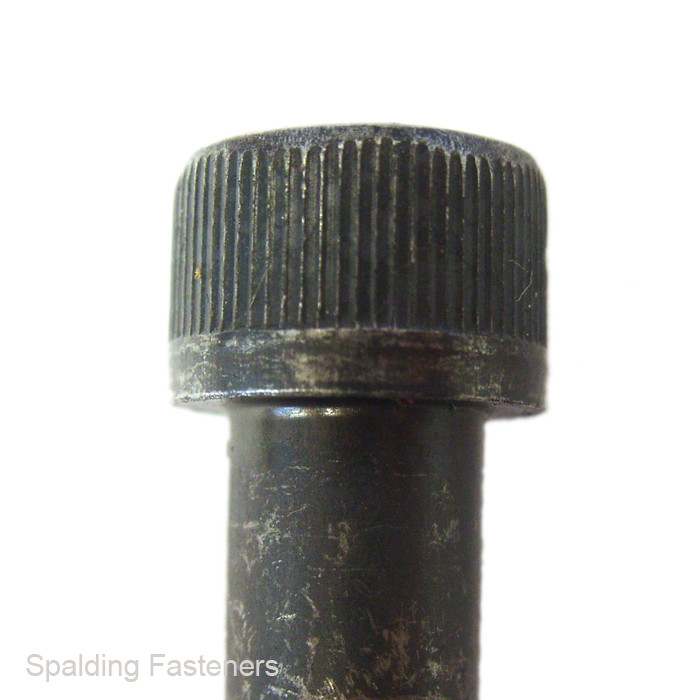

M10 x 1.25 metric fine 12.9 high tensile self colour steel socket cap bolts to DIN 912, with a part threaded shank.

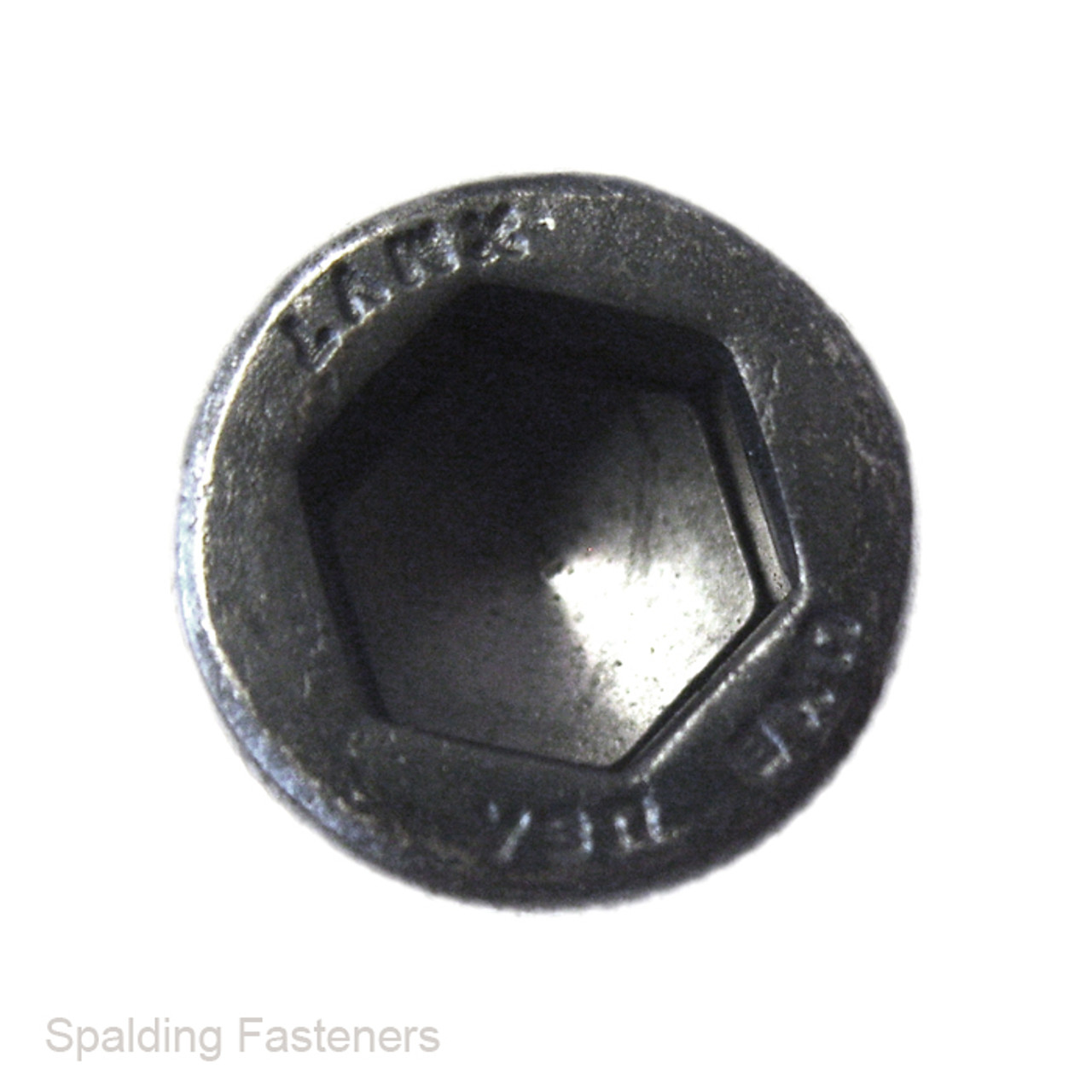

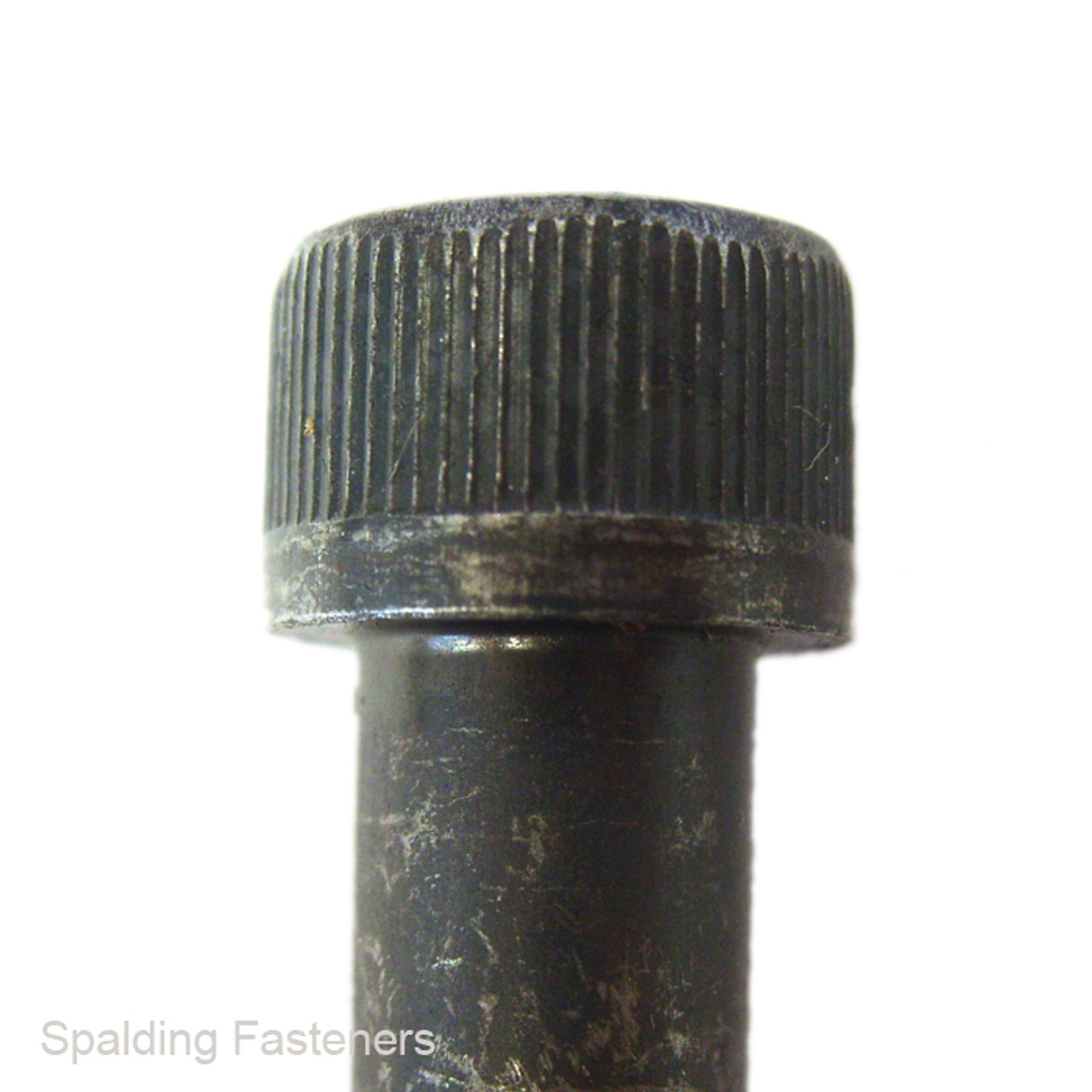

These socket cap bolts feature a cylindrical cap head with an internal hex socket drive, also known as an Allen key drive. The 12.9 grade high tensile steel provides excellent strength for engineering, machinery, automotive, fabrication and maintenance applications where a strong metric fine socket bolt is required.
The self colour finish is supplied without a plated coating and is best suited to indoor, oiled, protected applications, or jobs where additional corrosion protection will be applied separately.
- M10 x 1.25 metric fine thread socket cap bolts
- 12.9 grade high tensile steel
- Self colour / unplated finish
- DIN 912 socket cap screw pattern
- Part threaded with plain shank
- Internal hex socket / Allen key drive
- Metric fine thread for matching M10 x 1.25 nuts and tapped holes
- Suitable for engineering, machinery, automotive and maintenance applications
| A | B | C | D | E | F | G | H |
| 10mm | 100mm | * | * | * | * | 1.25 | * |
| 10mm | 45mm | * | * | * | * | 1.25 | * |
| 10mm | 50mm | * | * | * | * | 1.25 | * |
| 10mm | 55mm | * | * | * | * | 1.25 | * |
| 10mm | 60mm | * | * | * | * | 1.25 | * |
| 10mm | 70mm | * | * | * | * | 1.25 | * |
| 10mm | 80mm | * | * | * | * | 1.25 | * |
| 10mm | 90mm | * | * | * | * | 1.25 | * |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
