Product Description
Imperial Zinc Plated Steel Heavy Flat Washer Assortment – 250 Pieces
This 250-piece assortment contains zinc plated steel heavy flat washers in six imperial sizes from 3/16" to 1/2". It provides a useful selection for repairs, maintenance and general assembly.
Flat washers spread the clamping force beneath a nut or bolt head and provide a bearing surface against the component being fastened. The zinc plated finish adds corrosion protection to the steel.
Product Specifications
- Material: Steel
- Finish: Zinc plated
- Type: Heavy flat washer
- Size range: 3/16" to 1/2"
- Total quantity: 250 washers across six sizes
- Packaging: Divided plastic box with clip-down lid, or refill pack without a box

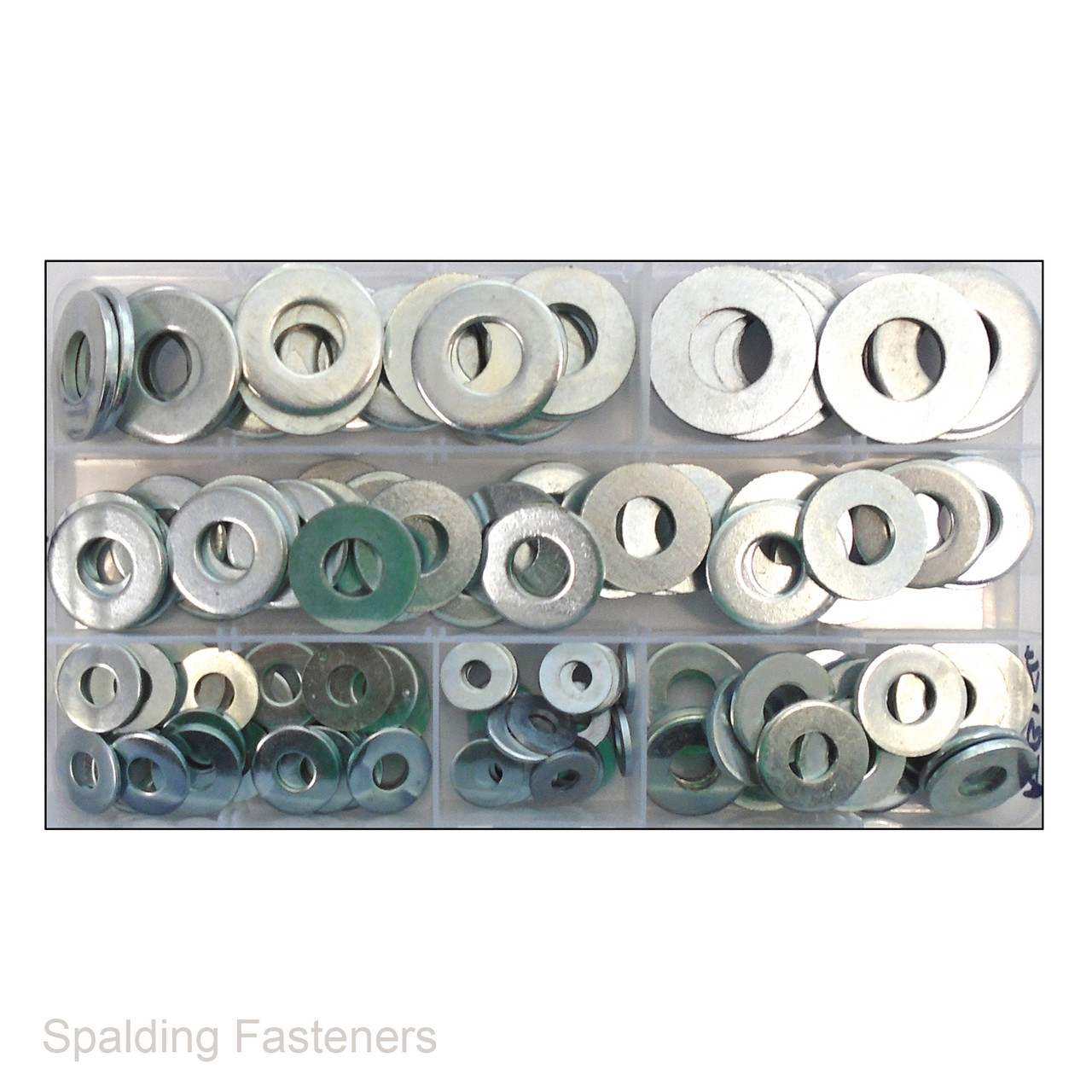

Kit Contents and Dimensions
Outside diameters and thicknesses below reproduce the approximate dimensions listed for this assortment. All dimensions are in inches.
| Listed Washer Size | Outside Diameter | Thickness | Quantity |
|---|---|---|---|
| 3/16" | 0.42" | 0.05" | 100 |
| 1/4" | 0.55" | 0.06" | 59 |
| 5/16" | 0.62" | 0.08" | 40 |
| 3/8" | 0.75" | 0.07" | 25 |
| 7/16" | 0.86" | 0.09" | 16 |
| 1/2" | 0.99" | 0.09" | 10 |
| Total | 250 | ||
Dimensions are provided as a guide. Check the required bore clearance, outside diameter and thickness where fit is critical.

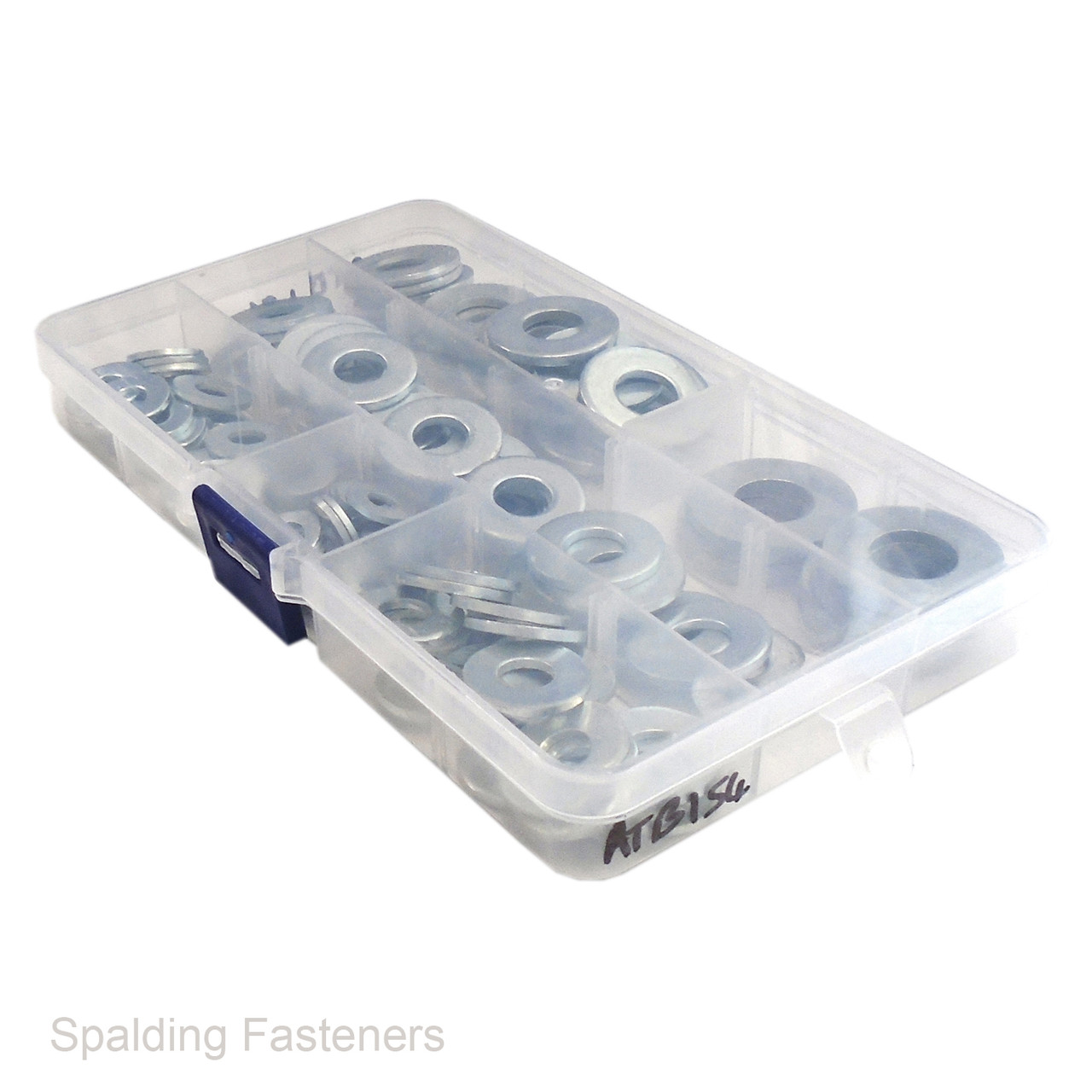

Boxed Assortment or Refill Pack
Choose the boxed kit to keep the six sizes separated and easy to identify. Select the refill pack to replenish an existing organiser; refill packs are supplied without a box.
