Product Description

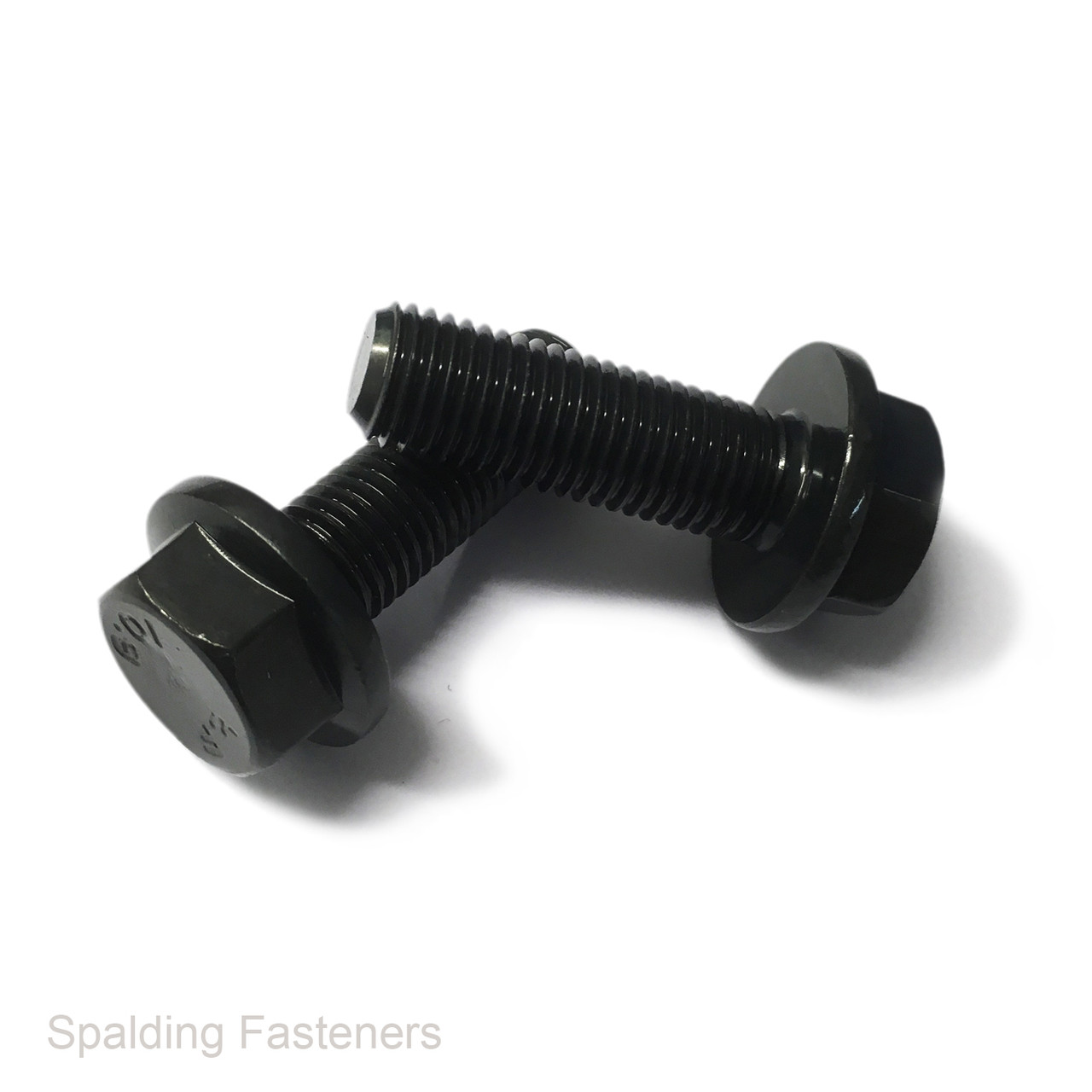

M10 x 1.25 Grade 10.9 Hex Flange Set Screws – DIN 6921
M10 metric fine hexagon flange head set screws manufactured from Grade 10.9 high tensile steel to DIN 6921. These fully threaded fasteners have a 1.25mm pitch and a plain self-colour finish.
Product Specifications
| Material | High tensile steel |
|---|---|
| Property Class | 10.9 |
| Standard | DIN 6921 |
| Finish | Plain, self colour, unplated |
| Thread Size | M10 x 1.25mm |
| Thread Type | Metric fine |
| Thread Direction | Right hand |
| Thread Coverage | Fully threaded |
| Head Style | Hexagon with integral flange |
Head Dimensions
| Spanner Size | 15mm |
|---|---|
| Maximum Flange Diameter | 22.3mm |
| Maximum Head Height Including Flange | 9.2mm |
Available Sizes
- M10 x 1.25 x 20mm
- M10 x 1.25 x 30mm
Length is measured from the underside bearing face of the flange to the end of the screw.
Key Features
- Grade 10.9 high tensile steel construction.
- Integral flange spreads the clamping load over a wider bearing surface.
- Fully threaded for use with matching fine-thread nuts or tapped holes.
- 15mm external hexagon for tightening with a suitable socket or spanner.
Match both the M10 diameter and 1.25mm thread pitch before ordering. Select your required length and pack quantity.
