Product Description

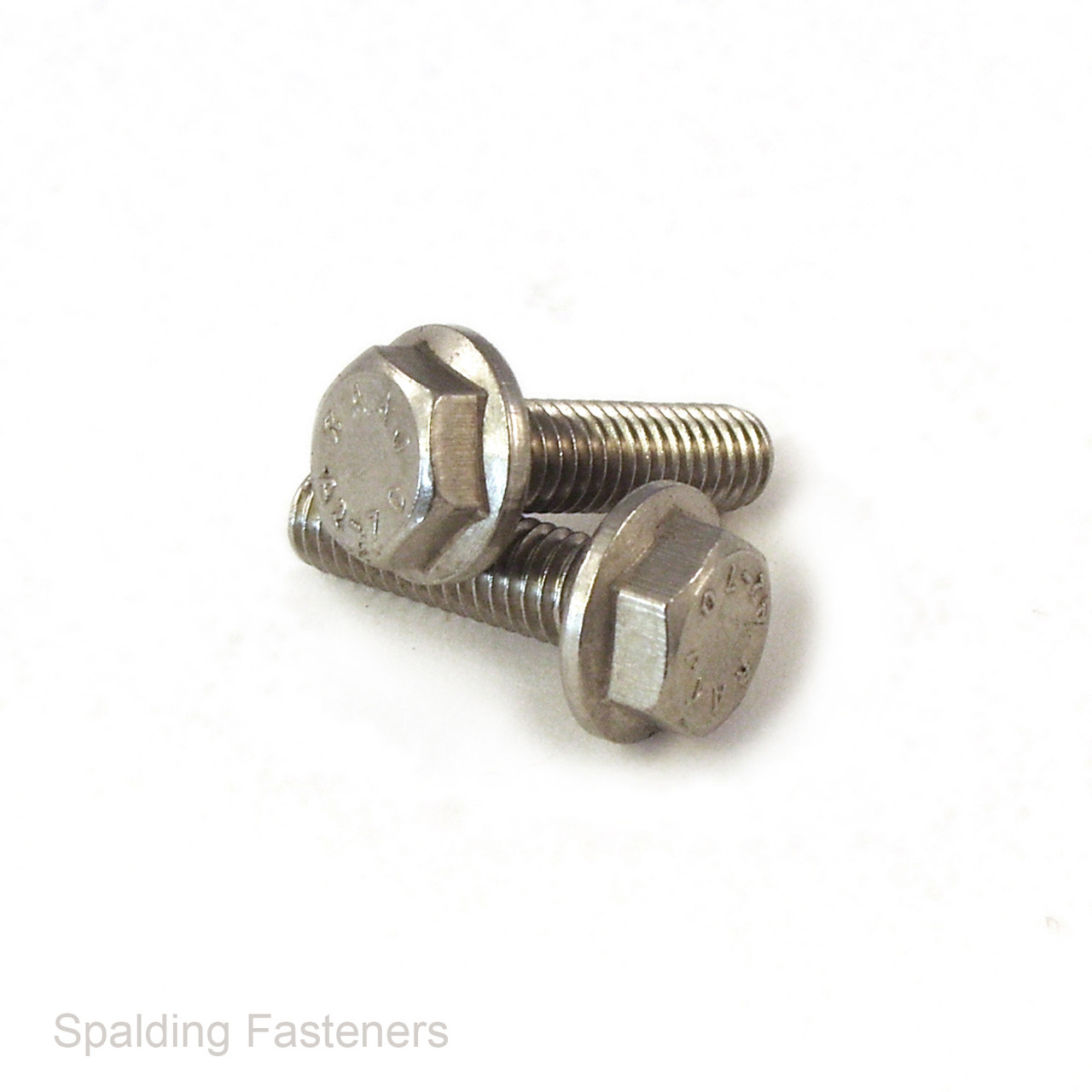

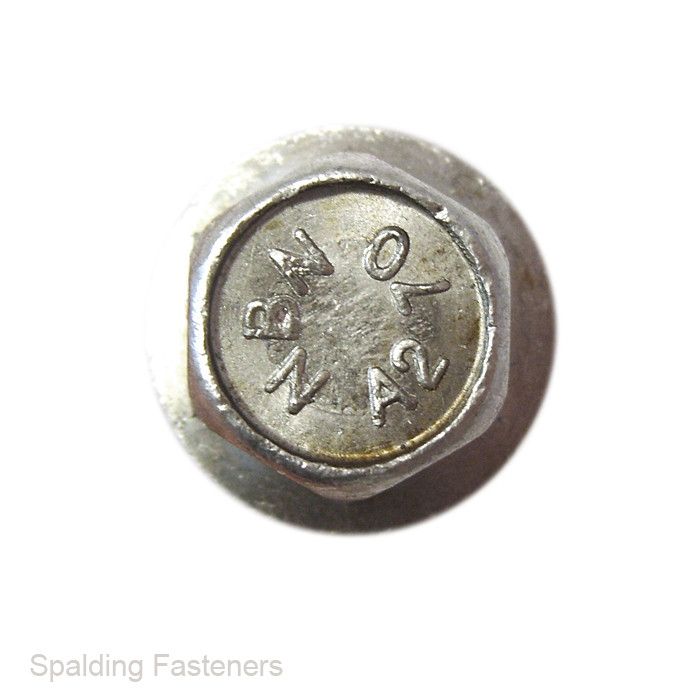

M10 A2 Stainless Steel Hexagon Flange Set Screws – DIN 6921

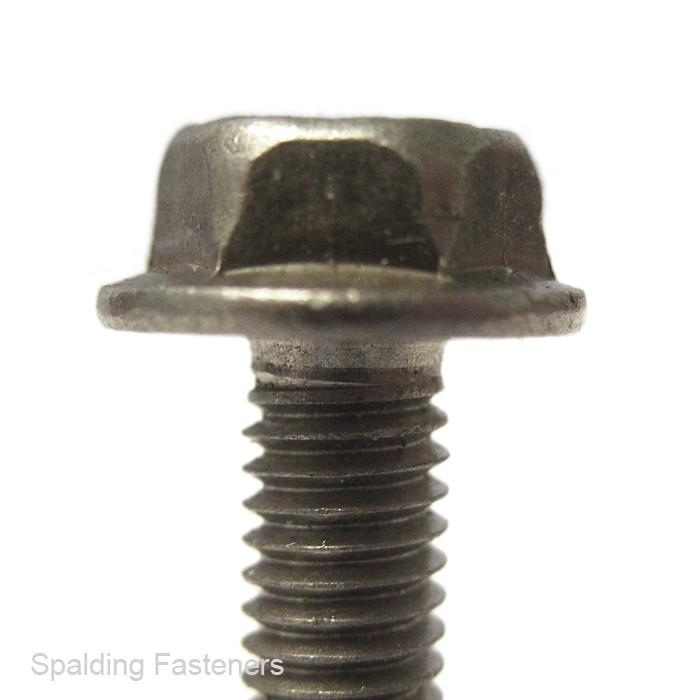

M10 hexagon flange set screws manufactured from A2 stainless steel to DIN 6921. The integral flange provides a wider bearing surface beneath the head, helping distribute the clamping load across the joint.
Featuring an M10 x 1.5mm metric coarse thread, these screws are suitable for machinery, equipment assembly and general engineering applications. A2 stainless steel provides corrosion resistance. Select your required length and pack size from the available options.
Technical Specifications
| Thread Size | M10 |
|---|---|
| Thread Pitch | 1.5mm – metric coarse |
| Material | A2 stainless steel |
| Standard | DIN 6921 |
| Head Style | Hexagon with integral flange |
| Spanner Size | 15mm |
| Width Across Flats | 14.73–15.00mm |
| Flange Diameter | 22.30mm maximum |
| Overall Head Height | 9.20mm maximum |
| Flange Thickness | 1.50mm minimum |
Length Options
Listed lengths: 20mm, 25mm, 30mm, 35mm, 40mm, 50mm and 60mm. Please check the product options for current availability.
Measuring & Selecting Your Screw
Screw length is measured from the bearing surface underneath the flange to the end of the screw, excluding the head and flange.
Use with matching M10 x 1.5mm nuts or tapped holes. Check that the surrounding surface provides sufficient clearance and support for the flange.
Please note: Dimensions are provided as a guide. Please contact us if measurements or thread coverage are critical to your application.
