Product Description

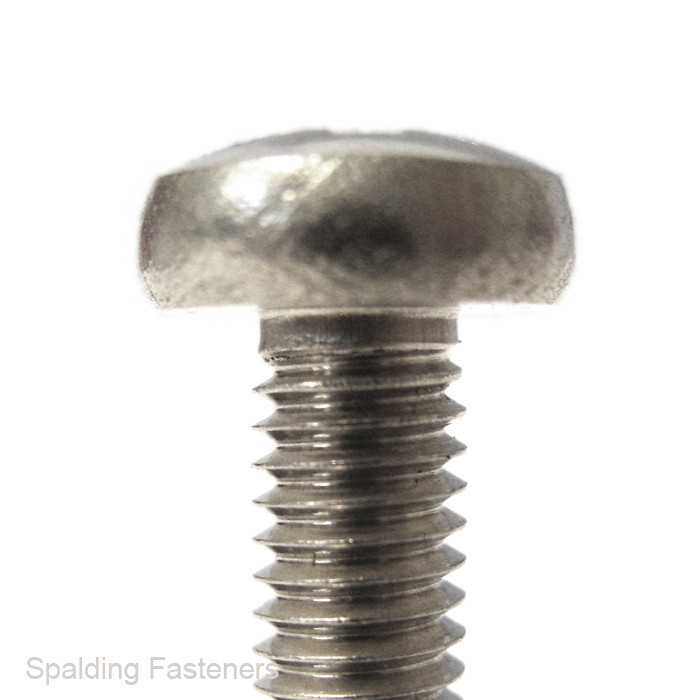

M2 metric coarse A2 stainless steel pan pozi machine screws to DIN 7985, suitable for use with metric nuts, tapped holes and threaded inserts.
These machine screws feature a pan head for a neat rounded finish, with a pozi drive for easy installation using standard pozi screwdrivers or bits. Manufactured from A2 stainless steel, also known as 304 stainless steel, they offer good corrosion resistance for engineering, electronics, model making, maintenance, repair and general fastening applications.
- M2 metric coarse thread machine screws
- A2 stainless steel, also known as 304 stainless steel
- DIN 7985 pan pozi machine screw pattern
- Pan head for a neat rounded finish
- Pozi drive
- M2 x 0.4mm standard metric coarse thread
- Available in lengths from 4mm to 30mm
- Suitable for metric nuts, tapped holes and threaded inserts
| A | B | C | D | E |
| 2mm | 10mm | 4mm | 1.75mm | 0.4 |
| 2mm | 12mm | 4mm | 1.75mm | 0.4 |
| 2mm | 16mm | 4mm | 1.75mm | 0.4 |
| 2mm | 20mm | 4mm | 1.75mm | 0.4 |
| 2mm | 25mm | 4mm | 1.75mm | 0.4 |
| 2mm | 30mm | 4mm | 1.75mm | 0.4 |
| 2mm | 4mm | 4mm | 1.75mm | 0.4 |
| 2mm | 6mm | 4mm | 1.75mm | 0.4 |
| 2mm | 8mm | 4mm | 1.75mm | 0.4 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
