Product Description

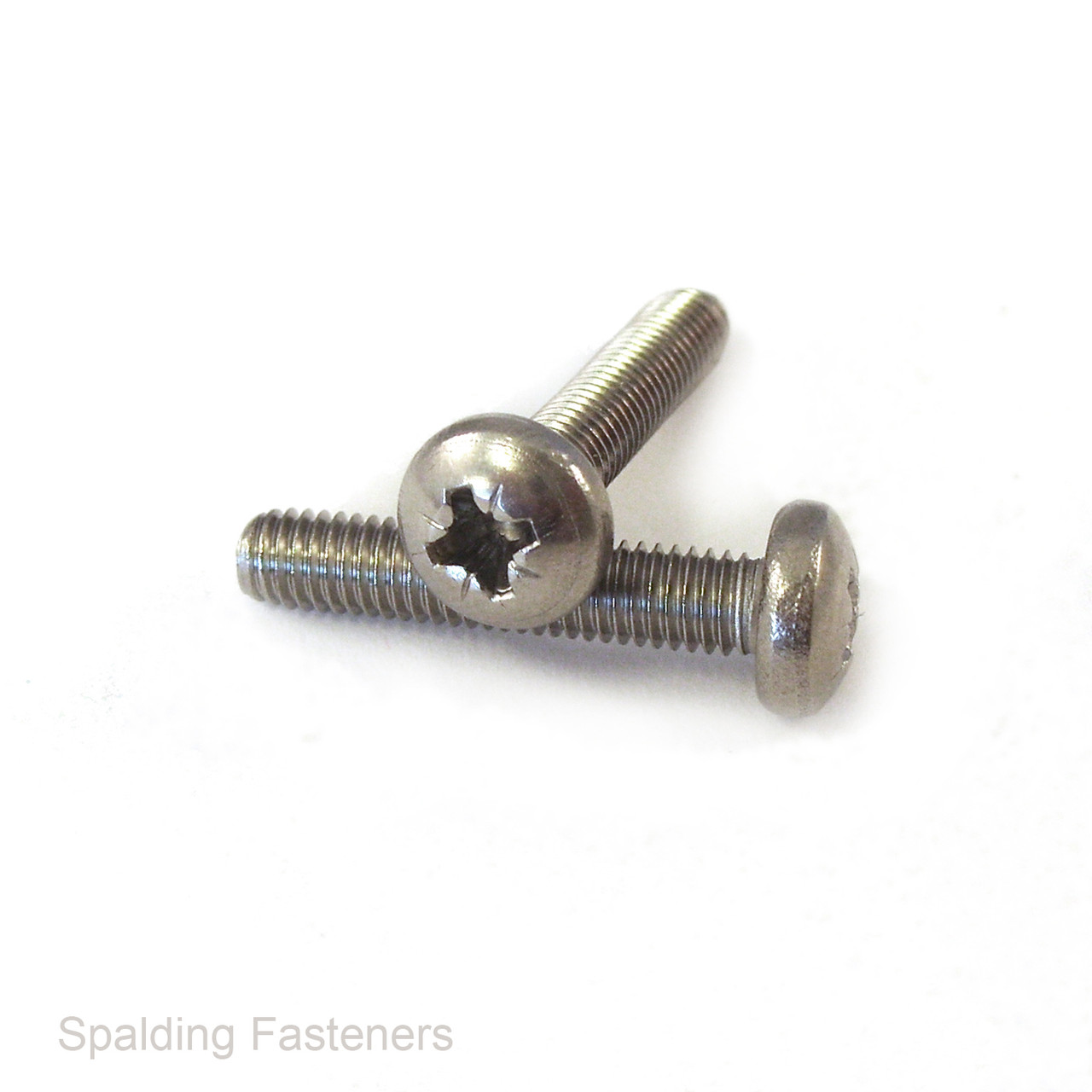

M6 A2 Stainless Steel Pan Pozi Machine Screws
These M6 machine screws are manufactured from A2 stainless steel and feature a rounded pan head with a Pozi cross recess. The broad bearing surface of the pan head helps distribute the clamping load across the fitted component.
They have a standard M6 metric coarse thread and are suitable for use with compatible M6 threaded holes or M6 nuts. Their corrosion-resistant construction and practical Pozi drive make them suitable for machinery, electrical equipment, fabrication and general assembly work.
Key Features
- Thread size: M6 metric coarse
- Thread pitch: 1mm
- Material: A2 stainless steel
- Head style: Rounded pan head
- Drive type: Pozi cross recess
- Recommended driver size: PZ3
- Head diameter: Approximately 12mm
- Head height: Approximately 4.75mm
- Former standard designation: DIN 7985Z
- Current corresponding standard: ISO 7045 / BS EN ISO 7045:2011
Length measurement: Pan-head machine screws are measured from beneath the head to the end of the screw. The head is not included in the stated length.
Typical Applications
- Machinery and equipment assembly
- Electrical and electronic equipment
- Automotive and general engineering projects
- Metal fabrication and panel installation
- Control panels, brackets and enclosures
- Indoor and general outdoor assemblies
A2 Stainless Steel
A2 stainless steel provides good corrosion resistance for indoor use and general outdoor applications. For marine, coastal, swimming-pool or chemically aggressive environments, an A4 stainless steel machine screw may be more suitable.
When assembling stainless steel screws with stainless steel nuts or threaded components, a suitable anti-seize compound can help reduce the risk of thread galling.
Related Products and Technical Information
- M4 A2 stainless pan Pozi machine screws
- M6 A2 stainless countersunk Pozi machine screws
- View metric A2 stainless pan Pozi machine screws
- View all machine screws
- Metric thread data guide
- How to measure bolts and screws
- A2 versus A4 stainless steel guide
- Stainless steel thread galling guide
Please note: Dimensions are provided as a guide. If compliance with a particular standard, material property class or dimensional tolerance is essential, please confirm suitability before ordering.
| A | B | C | D | E |
| 6mm | 12mm | 12mm | 4.75mm | 1 |
| 6mm | 16mm | 12mm | 4.75mm | 1 |
| 6mm | 20mm | 12mm | 4.75mm | 1 |
| 6mm | 25mm | 12mm | 4.75mm | 1 |
| 6mm | 30mm | 12mm | 4.75mm | 1 |
| 6mm | 50mm | 12mm | 4.75mm | 1 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
