Product Description

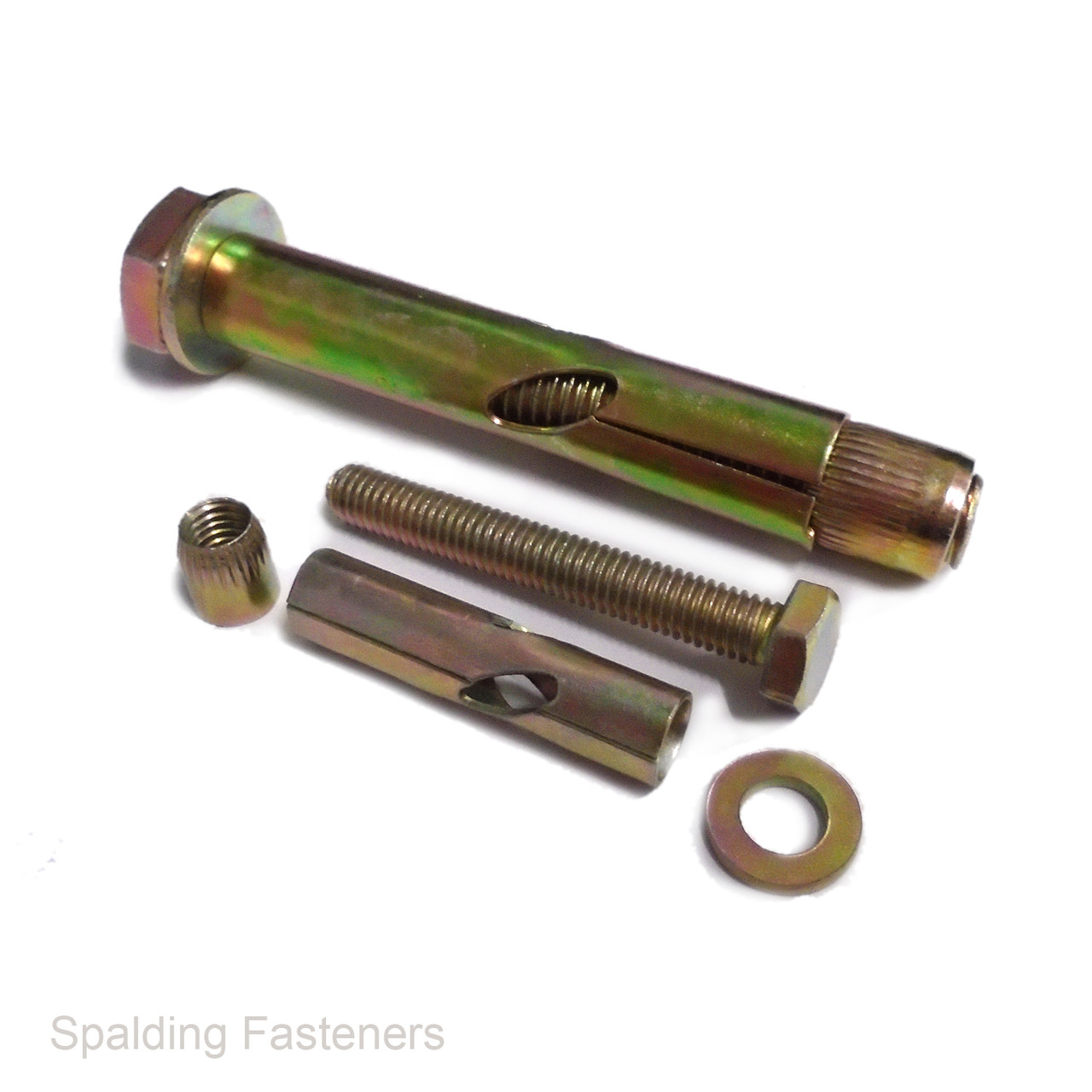

M8 Yellow Zinc Plated Steel Sleeve Anchor Bolts
M8 steel sleeve anchor bolts with a yellow zinc passivated finish. These mechanical expansion fixings secure fixtures by expanding the sleeve against the surrounding base material as the anchor is tightened.
Product Specifications
Size - M8 x 45
Drill diameter - 10mm
Thread Diameter M8/8mm
Max Fixture Thickness - 5mm
Anchor Length - 45mm
Embedment Depth - 35mm
Minimum Hole Depth - 40mm
Tightening Torque - 20NM
Size - M8 x 55
Drill diameter - 10mm
Thread Diameter M8/8mm
Max Fixture Thickness - 15mm
Anchor Length - 55mm
Embedment Depth - 40mm
Minimum Hole Depth - 45mm
Tightening Torque - 20NM
Size - M8 x 75
Drill diameter - 10mm
Thread Diameter M8/8mm
Max Fixture Thickness - 30mm
Anchor Length - 75mm
Embedment Depth - 45mm
Minimum Hole Depth - 50mm
Tightening Torque - 20NM
Size - M8 x 95
Drill diameter - 10mm
Thread Diameter M8/8mm
Max Fixture Thickness - 50mm
Anchor Length - 95mm
Embedment Depth - 45mm
Minimum Hole Depth - 50mm
Tightening Torque - 20NM
Key Features
- Mechanical sleeve expansion fixing.
- Yellow zinc passivated steel construction.
- Four lengths to accommodate different fixture thicknesses.
- 10mm drill diameter across all four options.
Selection and Installation
Choose the anchor length to suit the fixture thickness and required embedment. Drill and clean the hole, then install in accordance with the instructions for the supplied anchor.
Base-material suitability and permissible loads must match the anchor specification and application.
Select your required length and pack quantity before ordering.
