Product Description

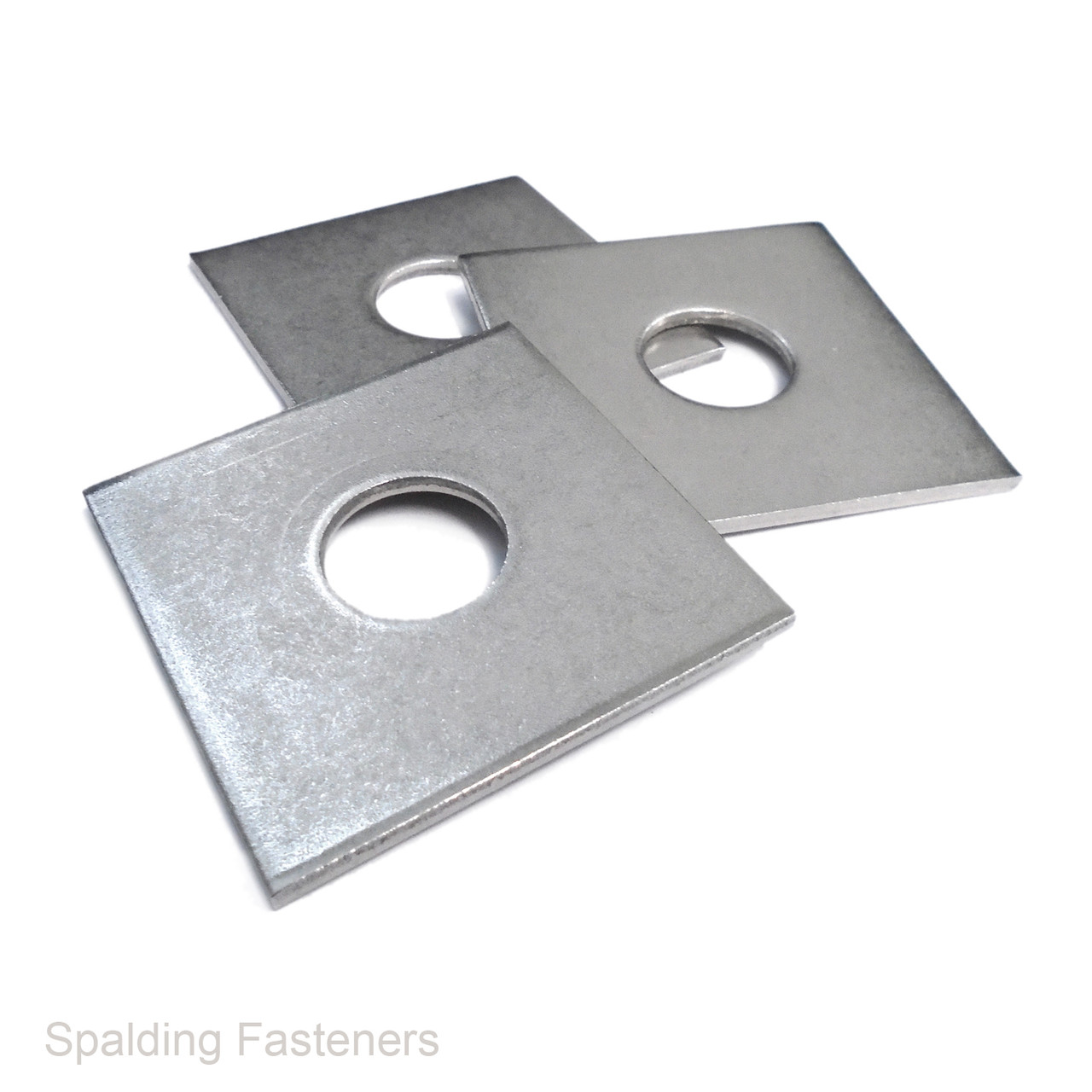

A2 Stainless Steel Square Plate Washers – 50 x 50 x 3mm
Square plate washers manufactured from A2 stainless steel, providing a broad bearing surface beneath a bolt head or nut. The 50mm square plate helps spread clamping loads across the surrounding material.
All listed sizes measure 50mm x 50mm and are 3mm thick. Choose the centre-hole option to suit M8, M10, M12, M16 or M20 bolts.
Technical Specifications
| Product type | Square plate washer |
|---|---|
| Material | A2 stainless steel |
| Plate width | 50mm |
| Plate length | 50mm |
| Thickness | 3mm |
| Nominal bolt sizes | M8, M10, M12, M16 and M20 |
Available Sizes
| Nominal Bolt Size | Plate Dimensions |
|---|---|
| M8 | 50 x 50 x 3mm |
| M10 | 50 x 50 x 3mm |
| M12 | 50 x 50 x 3mm |
| M16 | 50 x 50 x 3mm |
| M20 | 50 x 50 x 3mm |
The M-size identifies the nominal bolt diameter the washer fits. It does not state the exact hole diameter.
Key Features
- A2 stainless steel for general-purpose corrosion resistance.
- Broad square footprint for spreading clamping loads.
- 3mm thick plate construction.
- Five centre-hole options to suit common metric bolt sizes.
Applications
Suitable for timber connections, brackets, frames and general fabricated assemblies where a larger bearing area is required. Select the washer to suit the bolt and the requirements of the joint.
Pack Quantities
Listed quantities: 1, 5, 10, 20, 50 and 100 washers. Choose the required size and quantity from the available options.
Please confirm the actual hole diameter or any required manufacturing standard before ordering where these are critical.
