Product Description

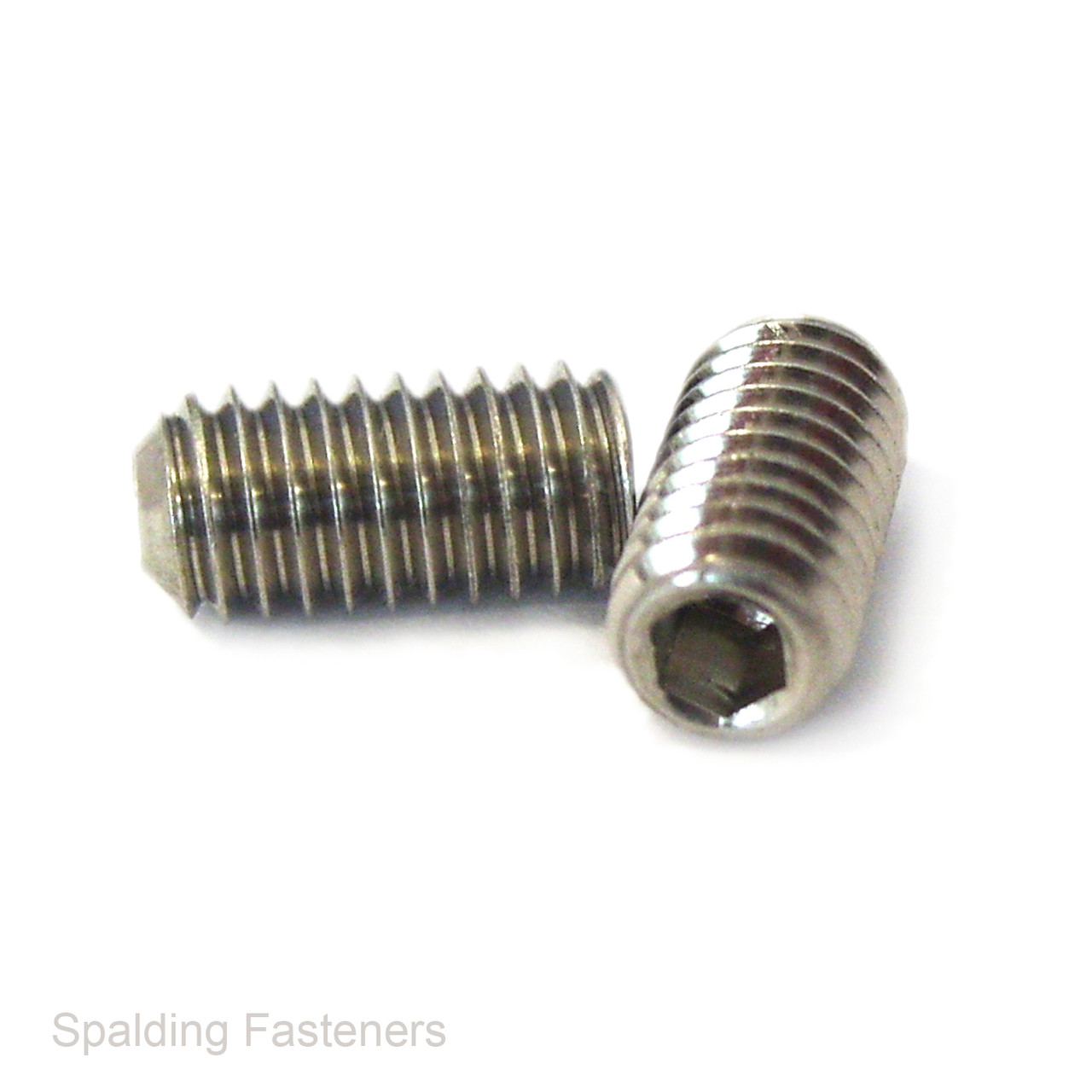

7/16" UNC A2 Stainless Steel Socket Cup Point Grub Screws
7/16"-14 UNC socket grub screws manufactured from A2 stainless steel for good general corrosion resistance. These headless fasteners feature an internal hexagon socket and a cup point for securing components against a shaft or mating surface.
Also known as socket set screws, their headless design allows installation flush with or below the surface of a suitably threaded component. The listed 1/2" length is operated using a 7/32" Allen key or hex driver.
Technical Specifications
| Fastener type | Socket grub screw / socket set screw |
|---|---|
| Thread designation | 7/16"-14 UNC |
| Nominal thread diameter | 7/16" (11.1125mm) |
| Thread form | Unified National Coarse |
| Threads per inch | 14 TPI |
| Length | 1/2" (12.7mm) |
| Material | A2 stainless steel |
| Point type | Cup point |
| Head type | Headless |
| Drive type | Internal hexagon socket |
| Allen key size | 7/32" (approximately 5.56mm) |
| Dimensional standard | ASME B18.3 |
Key Features
- A2 stainless steel construction for corrosion resistance.
- Cup point provides concentrated contact against the mating component.
- Headless design for recessed installation.
- Imperial coarse thread for matching 7/16"-14 UNC tapped holes.
- Internal hexagon drive for installation and adjustment.
Typical Applications
Suitable for locating and securing shaft collars, pulleys, knobs, sleeves and other mechanical components designed to use cup point set screws. The cup point can mark the contact surface when tightened.
Ordering Information
The listed size is 7/16"-14 UNC x 1/2". Select your required pack size from the available options.
