Product Description

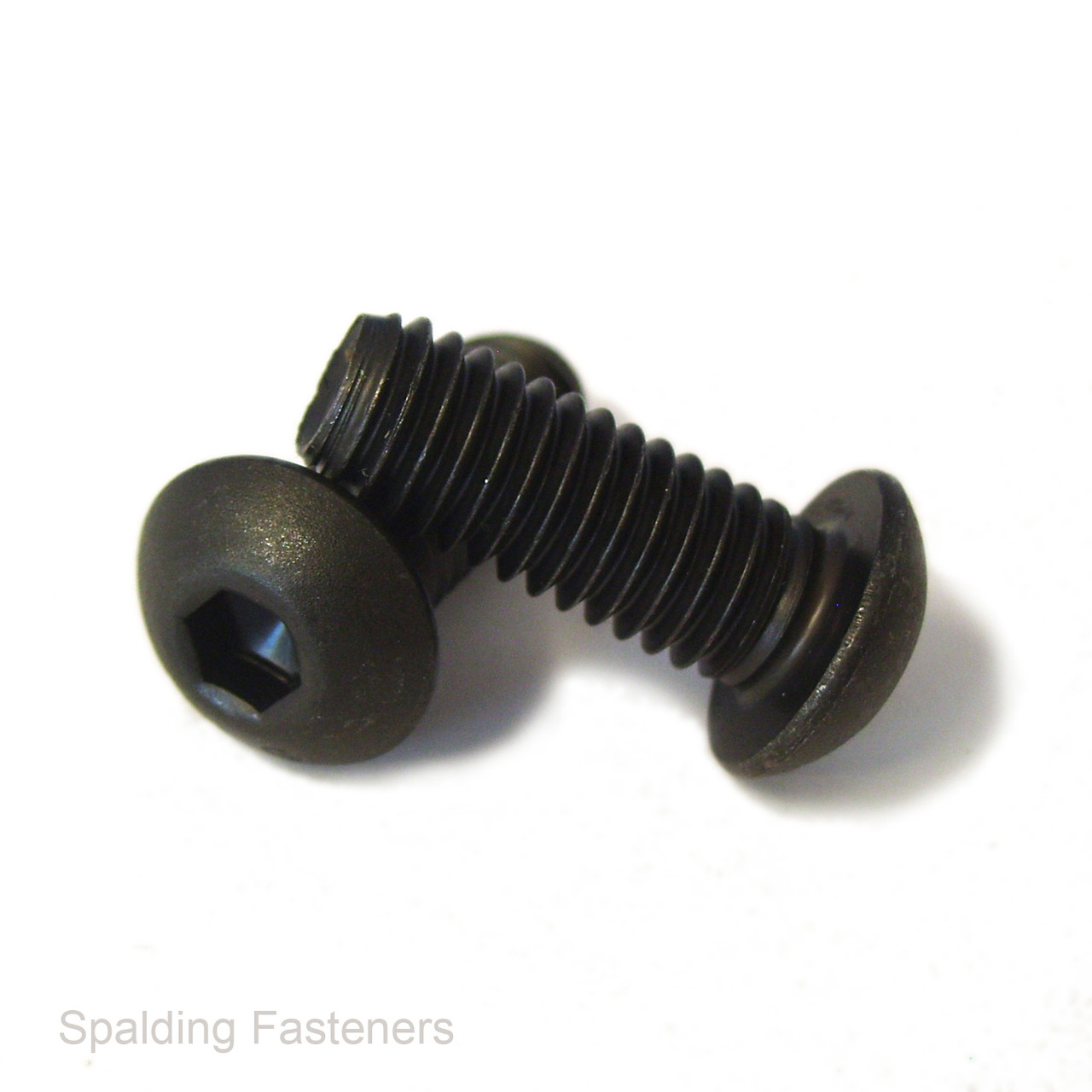

⅜"-24 UNF High Tensile Socket Button Head Machine Screws
High tensile steel socket button head machine screws with a ⅜"-24 UNF fine thread. The rounded button head provides a neat, low-profile appearance, while the internal hexagon socket allows installation using a 7/32" Allen key.
Suitable for machinery, maintenance and engineering assemblies requiring a matching imperial fine thread.
Specifications
| Feature | Specification |
|---|---|
| Fastener type | Socket button head machine screw |
| Material | High tensile steel |
| Thread system | UNF – Unified National Fine |
| Thread size | ⅜"-24 UNF |
| Nominal thread diameter | ⅜" (9.525mm) |
| Thread pitch | 24 threads per inch |
| Head style | Rounded button head |
| Drive type | Internal hexagon socket |
| Allen key size | 7/32" |
| Length measurement | Measured from beneath the head to the end of the screw |
Key Features
- ⅜"-24 UNF thread for matching nuts and tapped holes.
- Rounded button head for a compact, neat appearance.
- Internal hexagon socket for installation with a 7/32" Allen key.
- High tensile steel construction.
- Choice of lengths and pack quantities through the product options.
Typical Applications
Suitable for securing brackets, panels and components in machinery and equipment using ⅜"-24 UNF threads. Also useful for maintenance and repairs where an imperial fine thread and button head are required.
Selecting the Correct Screw
Check the required length, thread engagement and head clearance before ordering. Use a matching ⅜"-24 UNF nut or tapped hole and a correctly fitting 7/32" Allen key.
Ordering
Select the required screw length and pack quantity from the available options before adding to your basket.
