Product Description

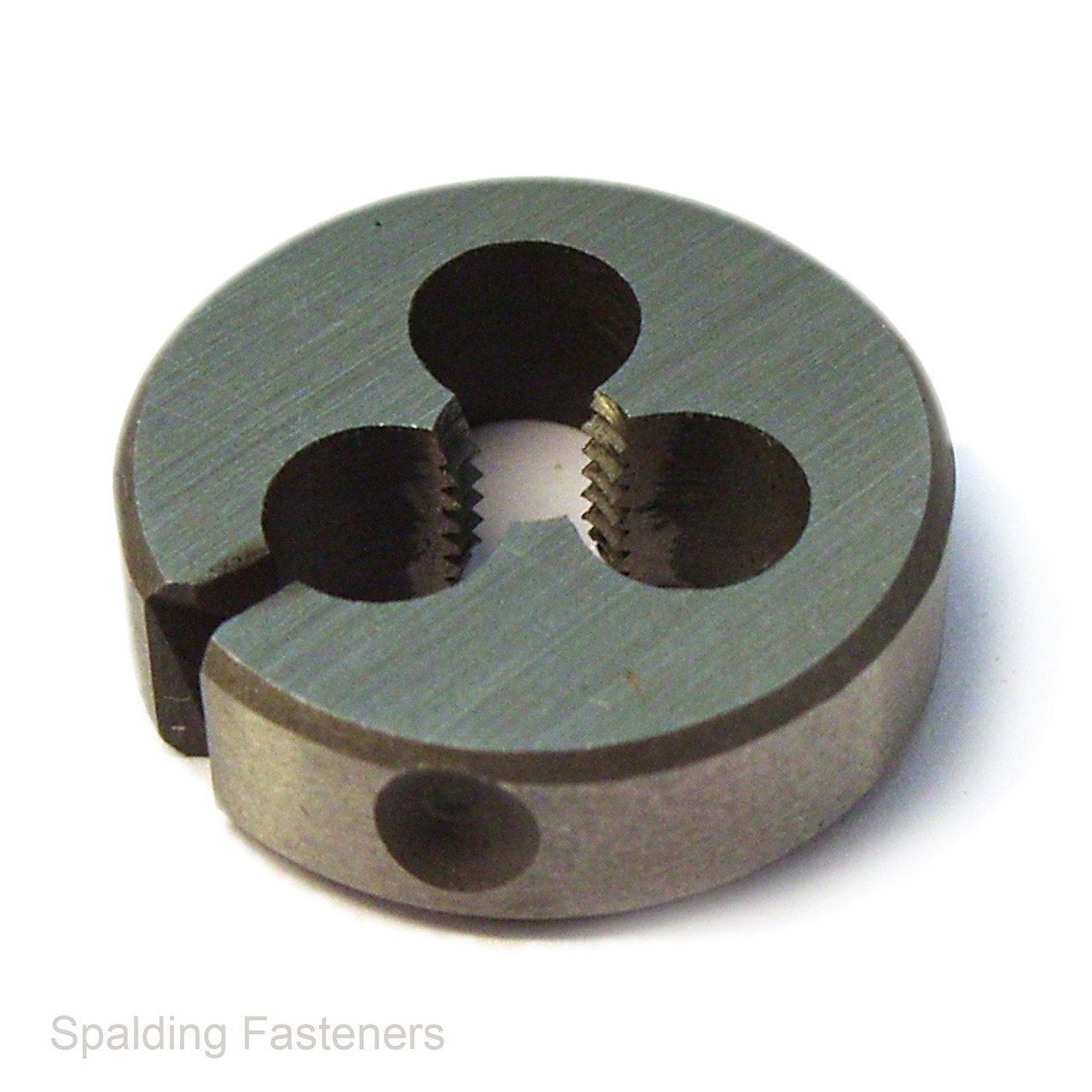

13/16" Diameter Metric Left Hand Carbon Steel Split Dies – UK Made
UK-made carbon steel circular split dies for cleaning up and repairing existing external left-hand metric threads. Available in M5 x 0.8mm and M6 x 1.0mm metric coarse sizes.
Each die has a 13/16" outside diameter for use with a suitable matching die holder. The left-hand thread advances onto the workpiece in an anticlockwise direction.
Specifications
| Feature | Specification |
|---|---|
| Tool type | Circular split rethreading die |
| Material | Carbon steel |
| Thread system | Metric coarse |
| Thread direction | Left hand / reverse thread |
| Die outside diameter | 13/16" (20.6375mm) |
| Holder requirement | Suitable holder for 13/16" outside diameter circular dies |
| Primary application | Cleaning and repairing existing external threads |
| Country of manufacture | United Kingdom |
Available Thread Sizes
| Thread Size | Pitch | Direction |
|---|---|---|
| M5 | 0.8mm | Left hand |
| M6 | 1.0mm | Left hand |
Understanding the Size
The 13/16" measurement refers to the outside diameter of the die and determines the holder size required. The selected metric diameter and pitch identify the thread being repaired.
Key Features
- For cleaning up existing left-hand metric threads.
- Carbon steel construction for maintenance and rethreading tasks.
- Circular split design.
- 13/16" outside diameter for a matching die holder.
- Manufactured in the UK.
Typical Applications
Suitable for workshop maintenance and restoration tasks involving damaged external left-hand threads on bolts, studs and other threaded components.
Using the Die
Confirm the thread diameter, pitch and left-hand direction before starting. Secure the die in a suitable holder and align it carefully with the existing thread. Use an appropriate lubricant for the workpiece material and avoid forcing the die over severely damaged sections.
Ordering
Select M5 x 0.8mm or M6 x 1.0mm left hand from the available options before adding to your basket.
