Product Description

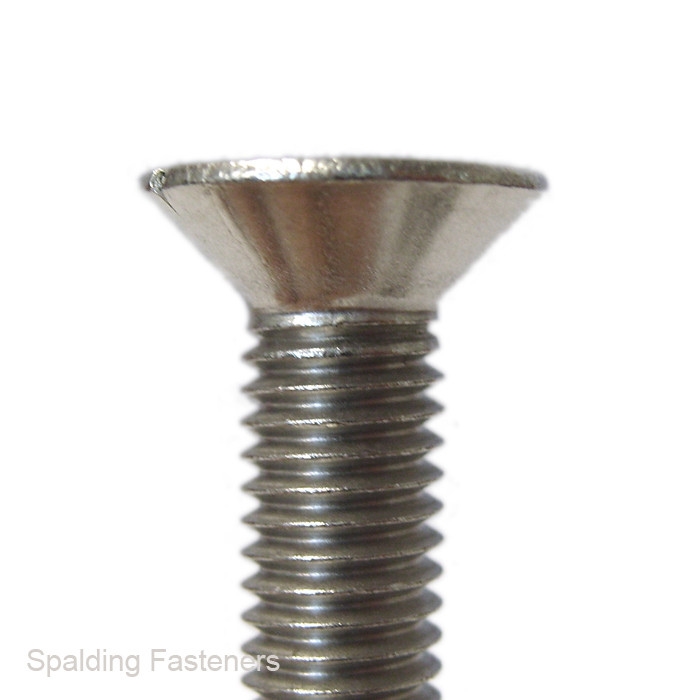

No.10 A2 stainless steel countersunk pozi self tapping screws to DIN 7982, also known as Type AB countersunk pozi self tappers.
These screws feature a countersunk head for a flush finish when fitted into a countersunk hole, with a pozi drive for easy installation using standard pozi screwdrivers or bits. The self tapping thread is designed for fastening into suitable pilot holes in sheet metal, plastics and other light materials.
Manufactured from A2 stainless steel, also known as 304 stainless steel, they offer good corrosion resistance for general engineering, automotive, maintenance, outdoor and repair applications.
- No.10 imperial size self tapping screws
- A2 stainless steel, also known as 304 stainless steel
- DIN 7982 countersunk pozi self tapping screw pattern
- Type AB self tapping thread
- Countersunk head for flush fitting
- Pozi drive
- Available in 1/2", 5/8", 3/4", 1", 1 1/4", 1 1/2", 1 3/4" and 2" lengths
| A | B | C | D | E | F |
| No.10 | 4.8mm | 1 1/2" | 38mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 1 1/4" | 32mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 1 3/4" | 43mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 1" | 25mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 1/2" | 13mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 2" | 50mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 3/4" | 19mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 5/8" | 16mm | 3/8" | 9.5mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
