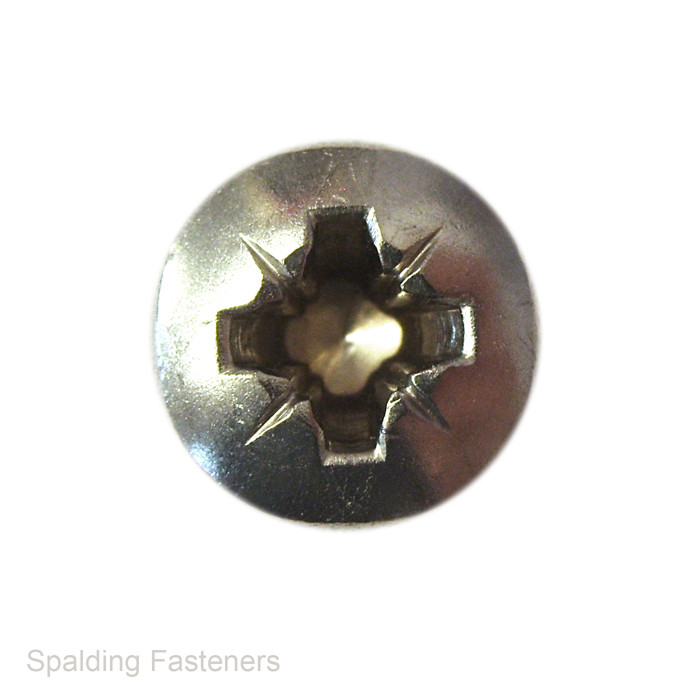

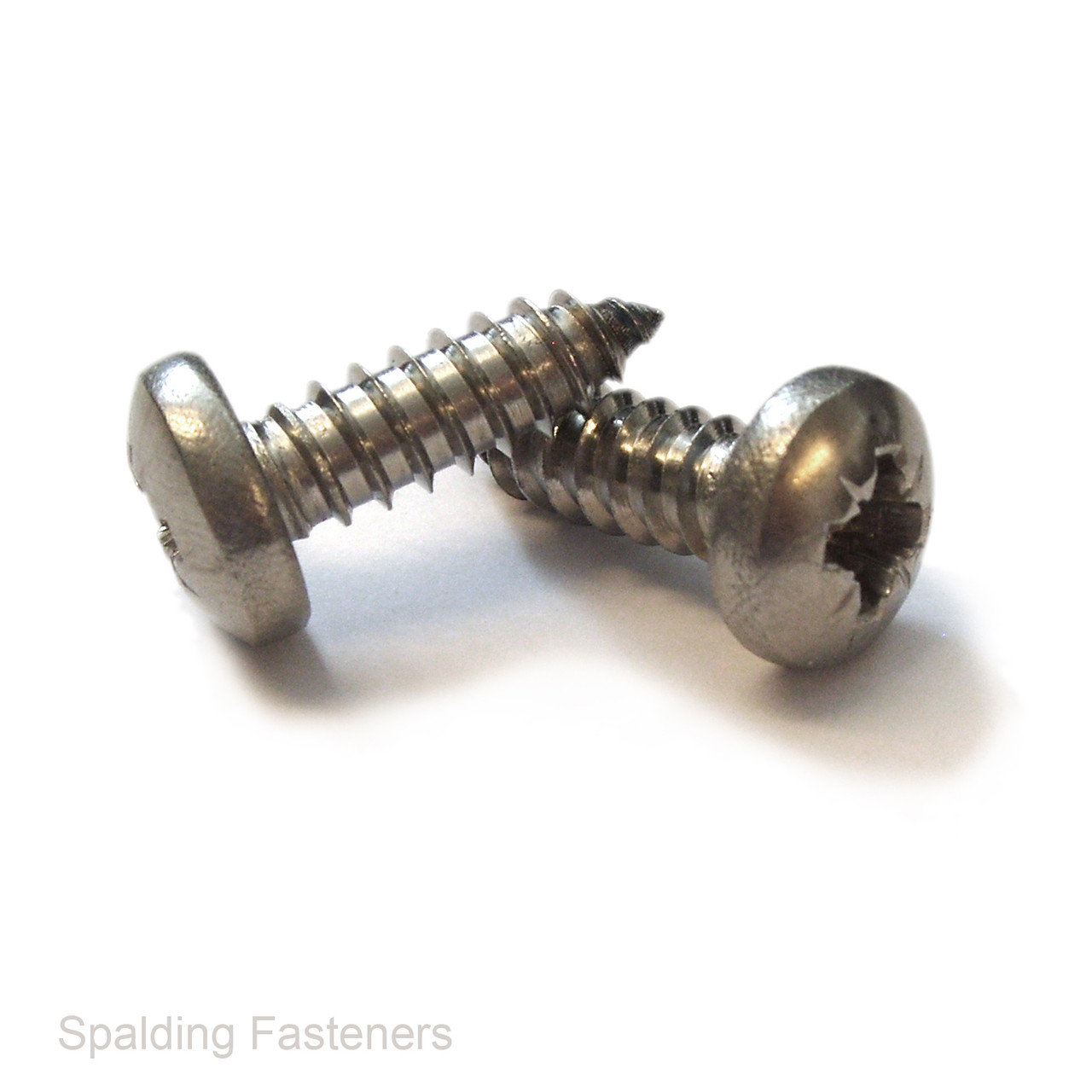

No.10 A2 stainless steel pan pozi self tapping screws to DIN 7981, also known as Type AB pan pozi self tappers.
These screws feature a pan head for a neat rounded finish, with a pozi drive for easy installation using standard pozi screwdrivers or bits. The self tapping thread is designed for fastening into suitable pilot holes in sheet metal, plastics and other light materials.
Manufactured from A2 stainless steel, also known as 304 stainless steel, they offer good corrosion resistance for general engineering, automotive, maintenance, outdoor and repair applications.
- No.10 imperial size self tapping screws
- 4.8mm screw diameter
- A2 stainless steel, also known as 304 stainless steel
- DIN 7981 pan pozi self tapping screw pattern
- Type AB self tapping thread
- Pan head for a neat rounded finish
- Pozi drive
- Available in 1/2", 5/8", 3/4", 1", 1 1/2", 1 3/4", 2" and 2 1/2" lengths
| A | B | C | D | E | F | G | H |
| No.10 | 4.8mm | 1 1/2" | 38mm | 3/8" | 9.5mm | 9/64" | 3.55mm |
| No.10 | 4.8mm | 1" | 25mm | 3/8" | 9.5mm | 9/64" | 3.55mm |
| No.10 | 4.8mm | 1/2" | 13mm | 3/8" | 9.5mm | 9/64" | 3.55mm |
| No.10 | 4.8mm | 2 1/2" | 63mm | 3/8" | 9.5mm | 9/64" | 3.55mm |
| No.10 | 4.8mm | 3/4" | 19mm | 3/8" | 9.5mm | 9/64" | 3.55mm |
| No.10 | 4.8mm | 5/8" | 16mm | 3/8" | 9.5mm | 9/64" | 3.55mm |
| No.10 | 4.8mm | 2" | 50mm | 3/8" | 9.5mm | 9/64" | 3.55mm |
| No.10 | 4.8mm | 1 3/4" | 43mm | 3/8" | 9.5mm | 9/64" | 3.55mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
