Product Description

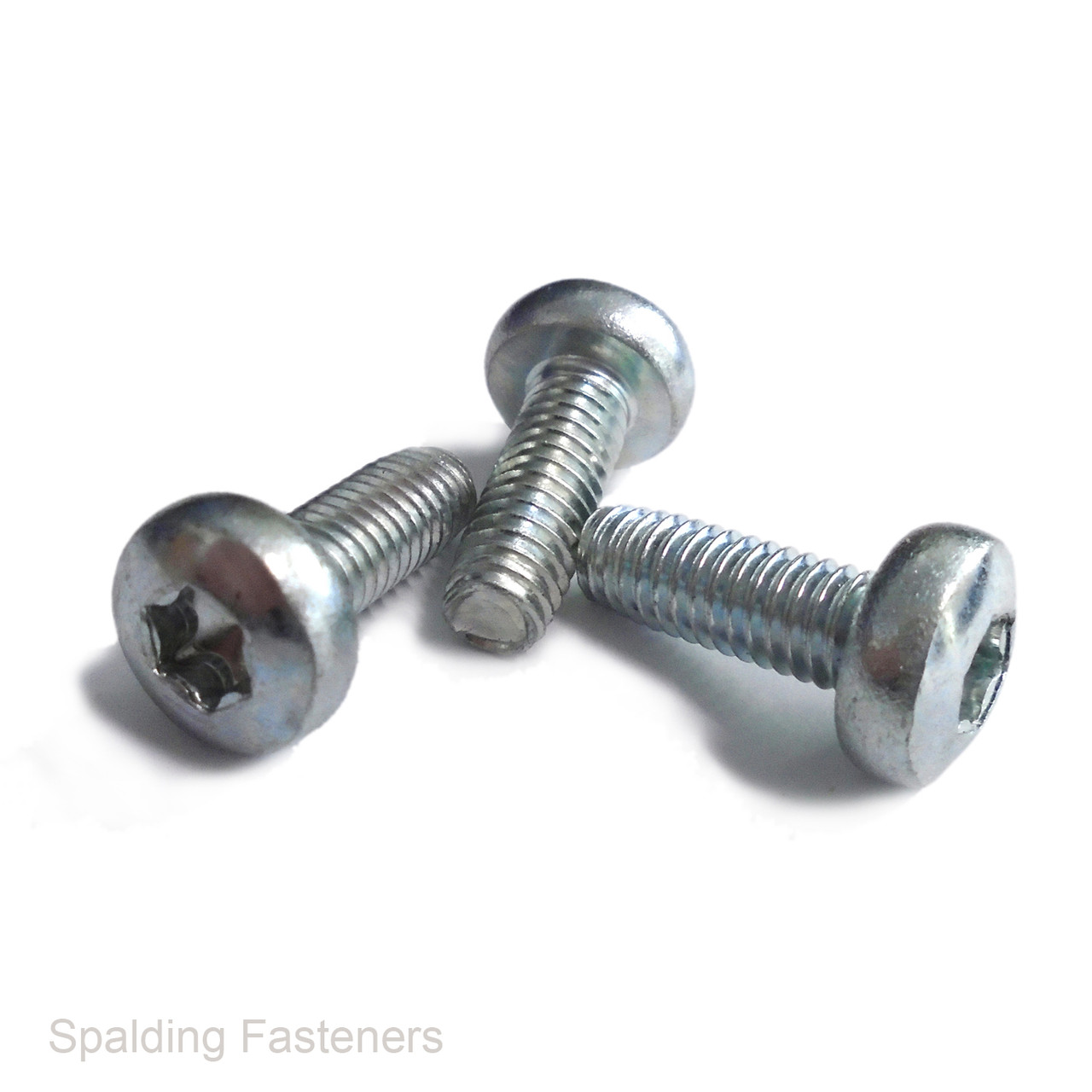

M4 Zinc Plated Pan Torx Thread Forming Screws – DIN 7500
M4 thread forming screws with a pan head and Torx drive, manufactured from case-hardened steel with a zinc plated and waxed finish. Specified to DIN 7500 for forming an internal thread in a correctly sized prepared hole in suitable material.
The thread-forming action displaces material to create the mating thread, allowing assembly without a separate tapping operation. The waxed finish helps reduce friction during installation.
Specifications
| Feature | Specification |
|---|---|
| Fastener type | Thread forming screw |
| Nominal thread size | M4 / 4mm |
| Standard | DIN 7500 |
| Material | Case-hardened steel |
| Finish | Zinc plated and waxed |
| Head style | Pan head |
| Drive type | Torx / hexalobular |
| Installation | Forms a mating thread in a suitable prepared hole |
| Length measurement | Measured from beneath the head to the tip |
Key Features
- Thread-forming design removes the need for a separate tapping operation in suitable applications.
- Case-hardened steel construction.
- Pan head provides a raised bearing surface.
- Torx drive provides positive engagement with a correctly fitting driver bit.
- Zinc plated coating with wax lubrication to assist installation.
Typical Applications
Suitable for brackets, enclosures, equipment and component assemblies requiring an M4 thread to be formed directly into a compatible workpiece.
Hole Preparation and Installation
Use a correctly sized pilot hole suitable for the workpiece material, thickness and required thread engagement. Select the hole diameter and installation torque for the application; a conventional M4 tapping drill size should not be assumed suitable.
Use a correctly fitting Torx bit and controlled installation torque. For blind holes, allow sufficient depth for the screw tip and thread-forming lead.
Ordering
Select the required screw length and pack quantity from the available options before adding to your basket.
