Product Description

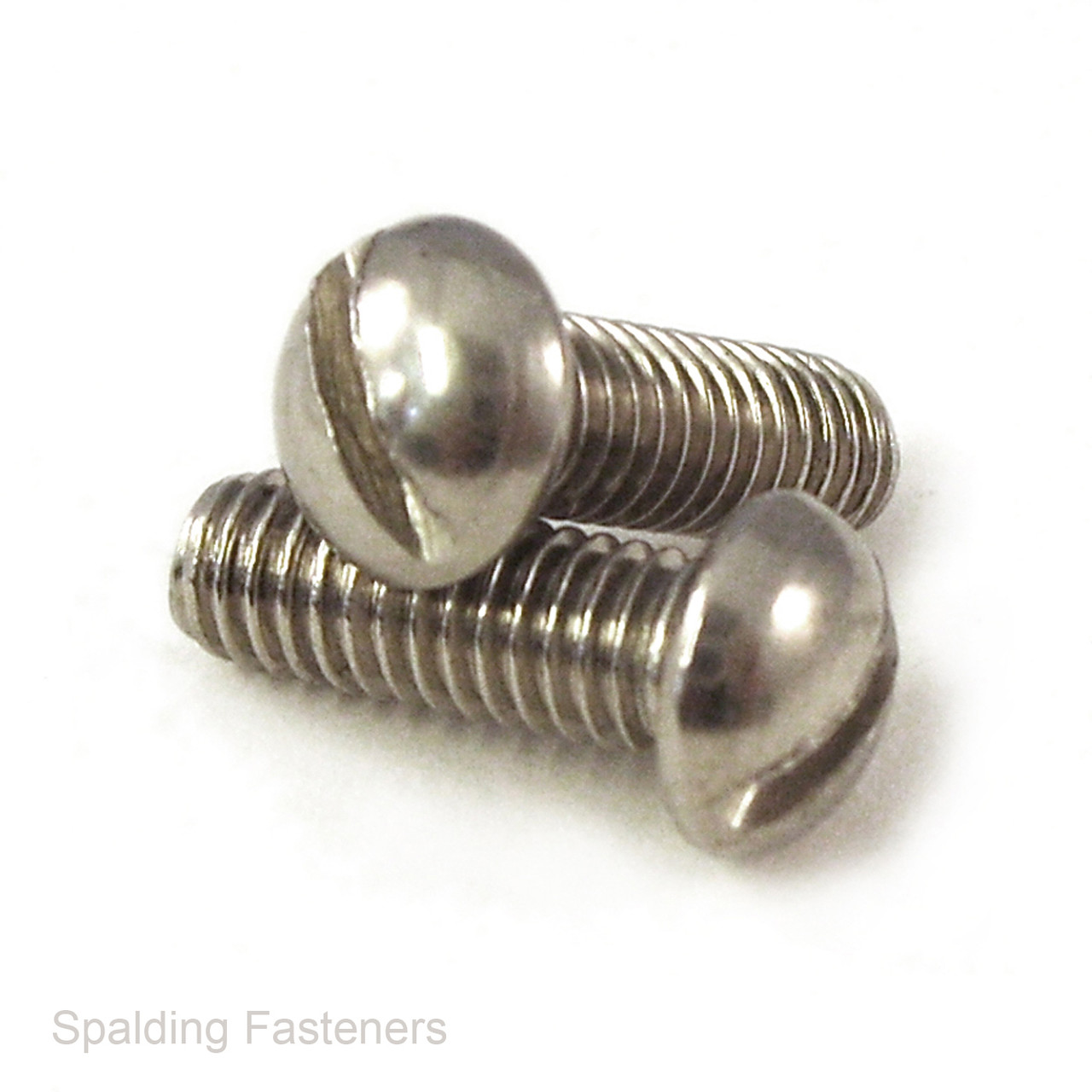

10-32 UNF A2 Stainless Steel Round Slotted Head Machine Screws
A2 stainless steel machine screws with a 10-32 UNF fine thread, rounded head and slotted drive. The domed head provides a traditional visible finish, while the slot allows installation using a suitable flat-blade screwdriver.
Available in five lengths from ⅜" to 1" for equipment assembly, maintenance and restoration projects requiring an imperial fine thread.
Specifications
| Feature | Specification |
|---|---|
| Fastener type | Round slotted head machine screw |
| Material | A2 stainless steel |
| Dimensional standard | ASME B18.6.3 |
| Thread size | 10-32 UNF |
| Nominal thread diameter | No.10 – 0.190" (4.826mm) |
| Thread pitch | 32 threads per inch |
| Head style | Round / domed head |
| Drive type | Slotted |
| Head diameter | 0.334"–0.359" (approximately 8.48–9.12mm) |
| Head height | 0.123"–0.137" (approximately 3.12–3.48mm) |
| Length measurement | Measured from beneath the head to the end of the screw |
Available Lengths
| Imperial Length | Metric Conversion |
|---|---|
| ⅜" | 9.525mm |
| ½" | 12.7mm |
| ⅝" | 15.875mm |
| ¾" | 19.05mm |
| 1" | 25.4mm |
Metric length values are conversions of the nominal imperial measurements. These screws are also commonly described as approximately 3/16" UNF; the precise thread designation is 10-32 UNF.
Key Features
- A2 stainless steel construction for corrosion resistance.
- 10-32 UNF fine thread for matching nuts and tapped holes.
- Rounded head for a traditional visible finish.
- Slotted drive for a correctly fitting flat-blade screwdriver.
- Five lengths and a choice of pack quantities.
Typical Applications
Suitable for brackets, panels, equipment repairs and restoration work requiring 10-32 UNF machine screws with a round slotted head.
Ordering
Select the required length and a pack quantity of 1, 5, 10, 20, 50 or 100 before adding to your basket.
