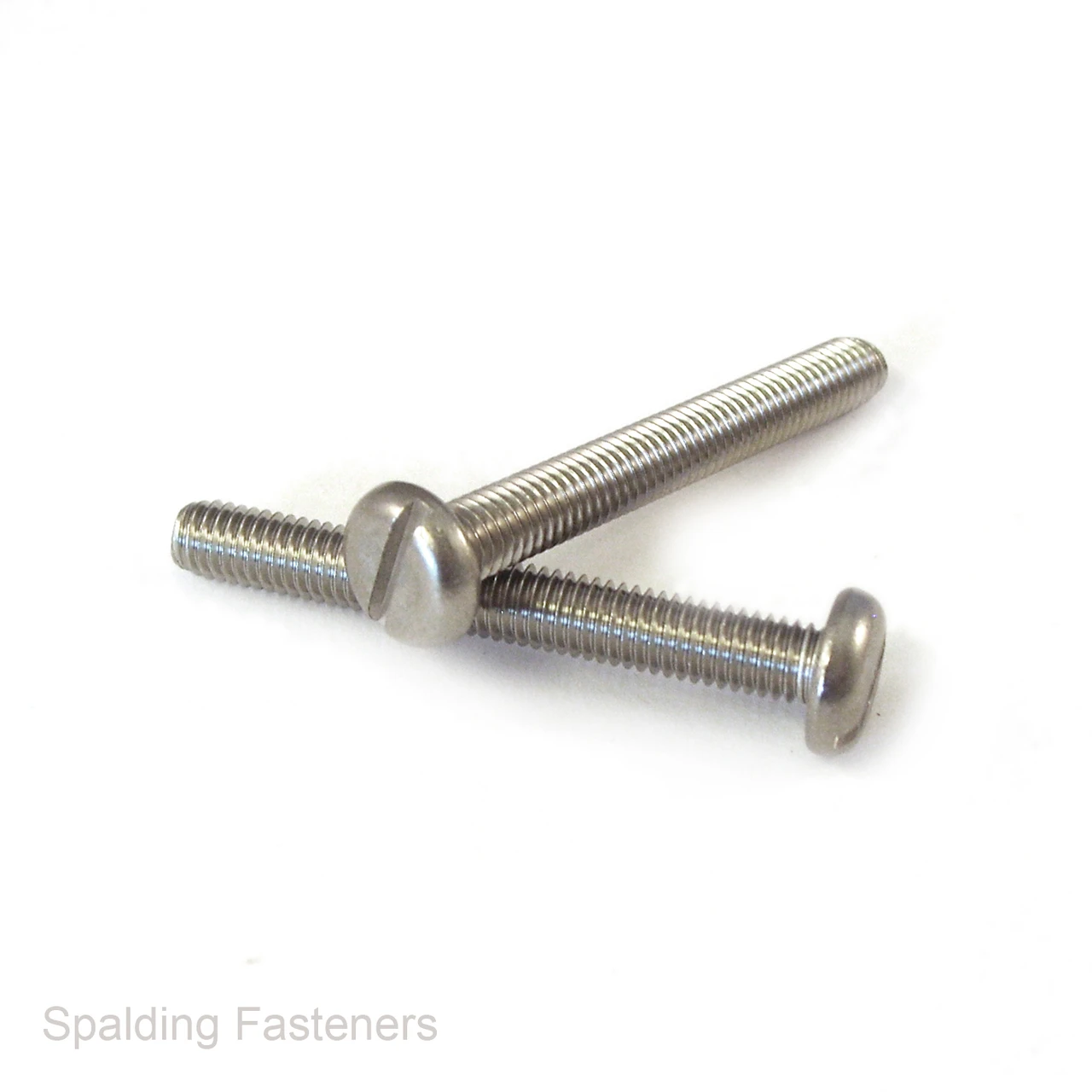

10-32 UNF A2 Stainless Steel Pan Slotted Machine Screws
Fully threaded 10-32 UNF pan-head slotted machine screws manufactured from corrosion-resistant A2 stainless steel. The fine 32 TPI thread is designed for use with a compatible 10-32 UNF nut or tapped hole.
The rounded pan head provides a broad bearing surface and a traditional finished appearance. Its single-slot drive allows installation with a correctly sized flat-blade screwdriver or driver bit. Suitable applications include engineering, machinery, electrical equipment, automotive restoration, maintenance and general assembly work.
Product specifications
- Thread size: No. 10-32 UNF
- Nominal thread diameter: 0.190"
- Thread pitch: 32 threads per inch
- Material: A2 stainless steel
- Head style: Pan head
- Drive type: Slotted
- Thread coverage: Fully threaded
- Length measurement: From beneath the head
- Dimensional reference: ASME B18.6.3
ASME reference dimensions
- Head diameter: Approximately 0.292" to 0.313"
- Head height: Approximately 0.123" to 0.130"
These are reference dimensions for a No. 10 slotted pan-head screw to ASME B18.6.3. Please confirm them against the supplied stock if they are critical to your application.
Alternative products include our 10-32 UNF pan Phillips machine screws, 10-32 UNF countersunk slotted screws, 10-32 UNF raised countersunk slotted screws and 1/4" UNF pan-slotted machine screws.
You can also view our UNC and UNF thread data guide and A2 versus A4 stainless steel guide.
Specifications are provided as a guide. If a particular measurement or standards compliance is critical, please contact us before ordering.
| A | B | C | D | E |
| 10-32 | 1/2" | * | * | 32 |
| 10-32 | 3/4" | * | * | 32 |
| 10-32 | 1" | * | * | 32 |
| 10-32 | 5/8" | * | * | 32 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
