Product Description

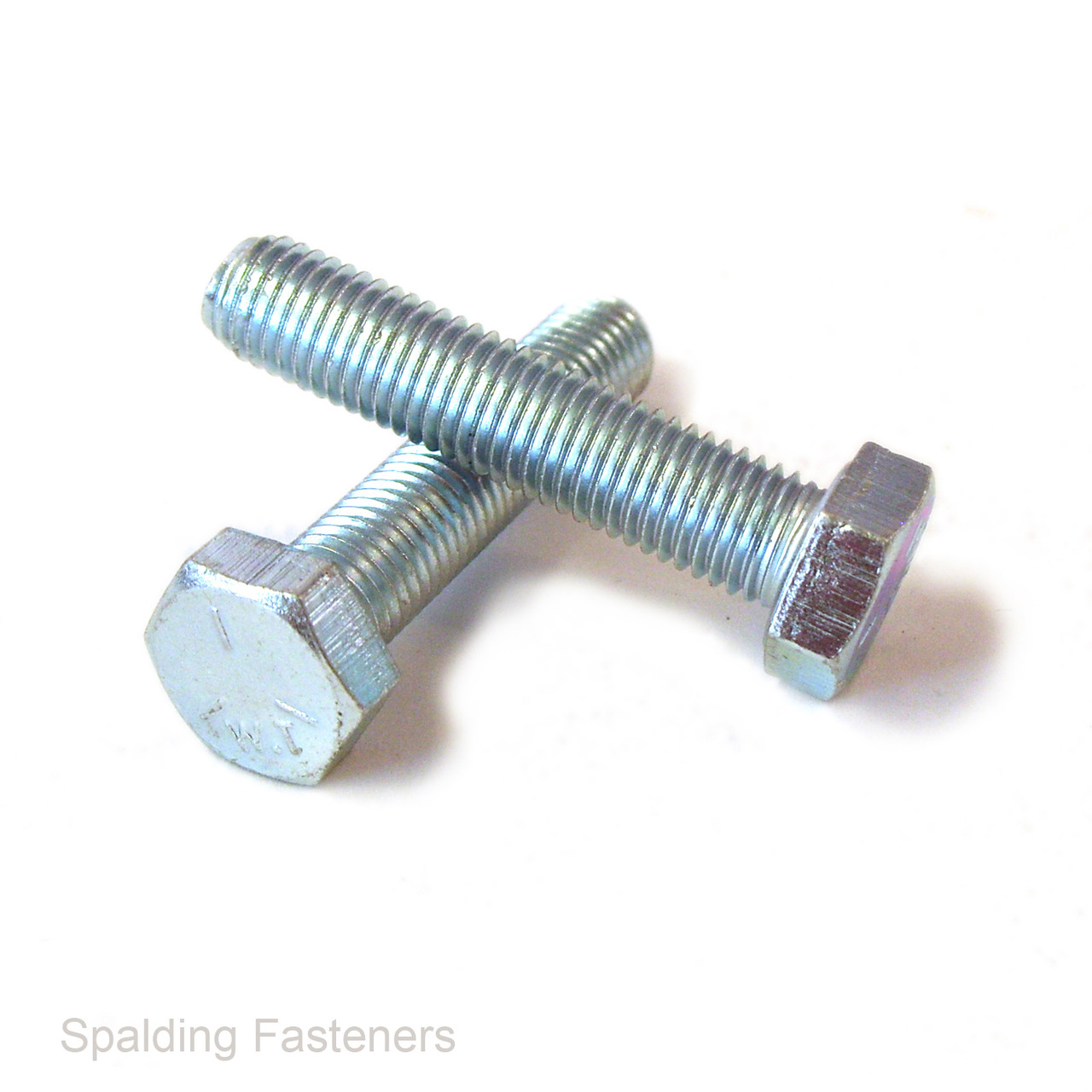

1/2" UNF Grade 5 zinc plated steel hex head set screws, fully threaded for general engineering, automotive, machinery, fabrication and maintenance applications. These high tensile imperial fine thread fasteners are manufactured from steel with a zinc plated finish for general corrosion resistance.
The hexagon head allows installation with a standard spanner or socket, while the fully threaded shank is suitable where the thread needs to run close to the underside of the head. These 1/2" UNF set screws have a 20 TPI Unified National Fine thread and are available in imperial lengths from 1" to 3".
For imperial UNF products, the suitable standard references are ASME B18.2.1 for hex head dimensions, ASME B1.1 for the UNF thread form, and SAE Grade 5 for the high tensile strength grade.
- 1/2" UNF hex head set screws
- Fully threaded
- Grade 5 / 8.8 high tensile steel
- Zinc plated finish
- 20 TPI UNF fine thread
- Lengths from 1" to 3"
- Available in small and bulk pack sizes
Also known as UNF set screws, imperial fine thread hex set screws, fully threaded hex bolts, Grade 5 UNF bolts and zinc plated UNF hex screws.
| A | B | C | D | E |
| 1/2" | 1 1/2" | 3/4" | 5/16" | 20 |
| 1/2" | 1 1/4" | 3/4" | 5/16" | 20 |
| 1/2" | 1" | 3/4" | 5/16" | 20 |
| 1/2" | 3" | 3/4" | 5/16" | 20 |
| 1/2" | 2" | 3/4" | 5/16" | 20 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
