Product Description

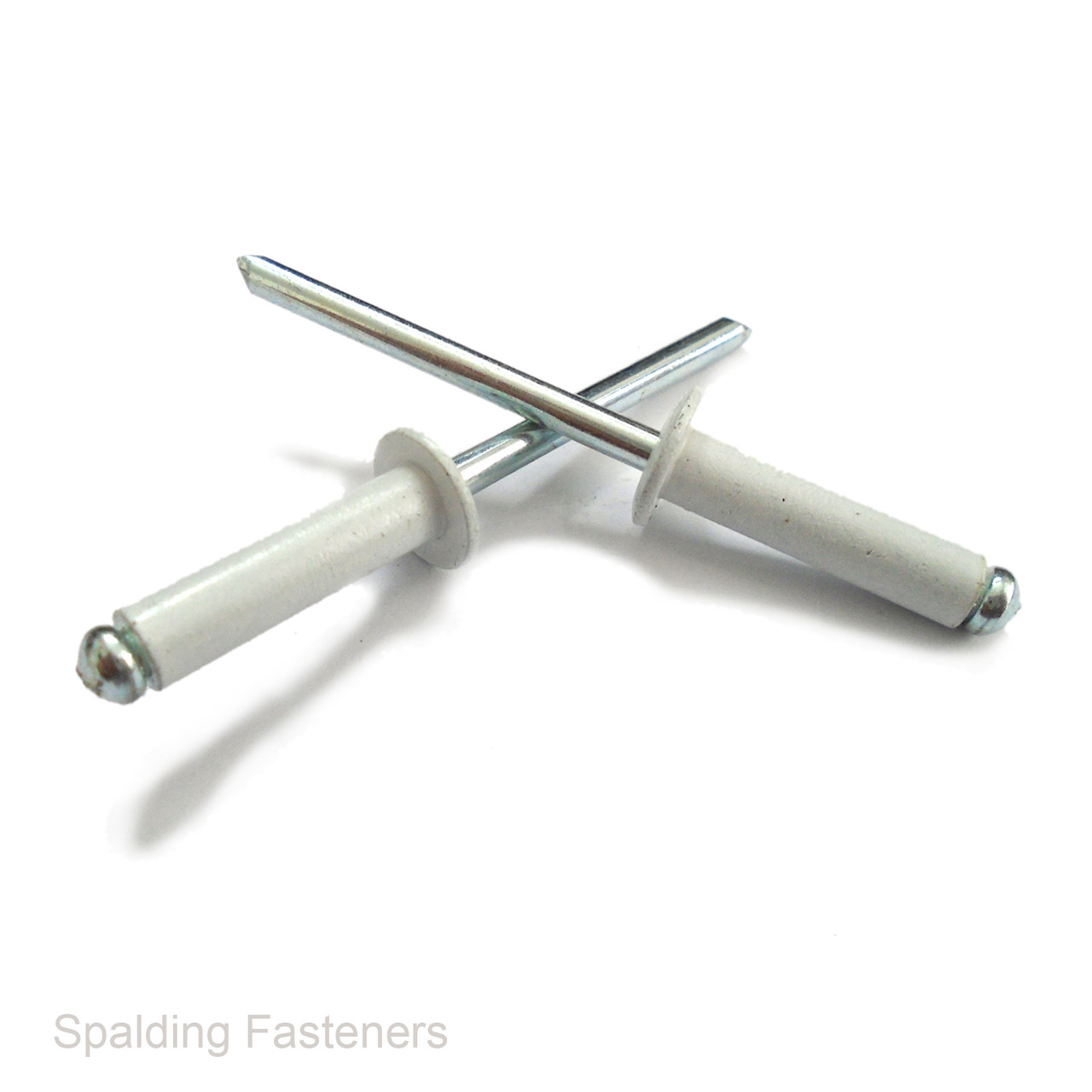

4.0mm White Open-End Dome Head Aluminium Pop Rivets
White dome head blind rivets with a 4.0mm aluminium body and steel mandrel. The white finish provides a coordinated appearance when fixing white panels, trims and other compatible components.
These standard open-end rivets are installed from one side using a suitable blind rivet tool. Available in ten lengths from 6mm to 30mm, with grip ranges listed below to help select the correct rivet for the combined material thickness.
Specifications
| Feature | Specification |
|---|---|
| Fastener type | Standard open-end blind rivet / pop rivet |
| Body diameter | 4.0mm |
| Body material | Aluminium |
| Mandrel material | Steel |
| Colour | White |
| Head style | Standard dome head |
| Listed head diameter | 8mm |
| Listed hole diameter | 4.1mm |
| Length measurement | Rivet body length beneath the head, excluding the mandrel |
Available Sizes and Grip Ranges
| Rivet Size | Grip Range |
|---|---|
| 4.0 x 6mm | 1.5–3mm |
| 4.0 x 8mm | 3–5mm |
| 4.0 x 10mm | 5–6.5mm |
| 4.0 x 12mm | 6.5–8.5mm |
| 4.0 x 14mm | 8.5–10.5mm |
| 4.0 x 16mm | 10.5–12.5mm |
| 4.0 x 18mm | 12.5–14.5mm |
| 4.0 x 20mm | 14.5–16.5mm |
| 4.0 x 25mm | 16.5–19mm |
| 4.0 x 30mm | 21–26mm |
Grip ranges and dimensions are the published listing values and are provided as a guide. Confirm suitability where dimensions are critical.
Choosing the Correct Length
The grip range is the combined thickness of the materials being joined. Measure the complete panel stack and select a rivet whose grip range includes that measurement.
Key Features
- White finish to complement white panels and trims.
- Aluminium body with a steel mandrel.
- Standard dome head and open-end construction.
- Installation from one side of the workpiece.
- Ten lengths for different material thicknesses.
Typical Applications
Suitable for compatible sheet metal panels, white trims, signage, enclosures and general fabrication or repair work requiring a white visible rivet head.
Installation
Prepare aligned, deburred holes and use a blind rivet tool with the correct nosepiece for the mandrel. Seat the head against the workpiece before setting, and ensure sufficient clearance behind the panels for the rivet body to form.
Ordering
Select the required rivet length and pack quantity from the available options before adding to your basket.
