Product Description

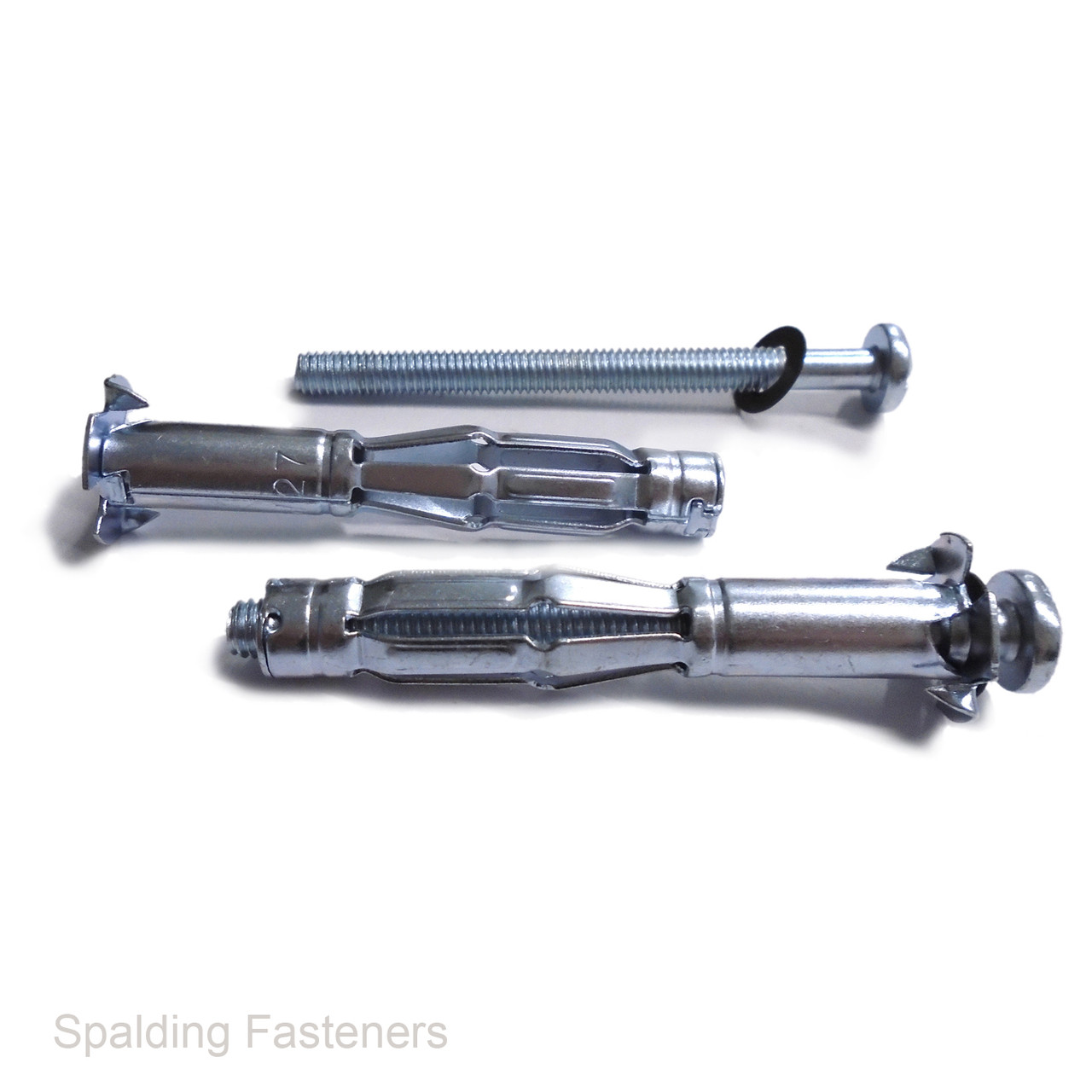

Metal Hollow Wall Anchors for Plasterboard and Cavity Panels
Metal hollow wall anchors for fixing into suitable plasterboard and hollow panel constructions. Often called brolly fixings, these anchors expand behind the board to provide a retaining surface within the cavity.
Available in M4, M5 and M6 thread sizes. Choose the anchor to suit the board thickness, fixing hole and available space behind the panel.
Specifications
| Feature | Specification |
|---|---|
| Fixing type | Expanding metal hollow wall anchor |
| Material | Metal |
| Thread system | Metric coarse |
| Thread sizes | M4, M5 and M6 |
| Typical substrate | Suitable plasterboard and hollow panels |
| Setting equipment | Compatible hollow wall anchor setting tool |
Listed Sizes and Board Thicknesses
| Anchor Size | Drill Hole Diameter | Listed Board Thickness |
|---|---|---|
| M4 x 20mm | 8mm | 6mm |
| M4 x 32mm | 8mm | 6mm |
| M4 x 38mm | 8mm | 14mm |
| M4 x 46mm | 8mm | 14mm |
| M5 x 65mm | 10mm | 25mm |
| M6 x 52mm | 13mm | 14mm |
| M6 x 65mm | 13mm | 25mm |
Board thicknesses are the values stated in the listing, not confirmed minimum-to-maximum grip ranges. Confirm suitability for your actual board thickness before installation.
Key Features
- Expanding metal design for hollow wall applications.
- Forms a retaining surface behind the board.
- Choice of M4, M5 and M6 thread sizes.
- Several lengths to suit different panel arrangements.
- Compatible with suitable hollow wall anchor setting tools.
Typical Applications
Suitable for compatible brackets, fittings and accessories attached to plasterboard or hollow panels. Fixing performance depends on the board material, condition, thickness, installation and direction of loading.
Installation
Check for concealed services and ensure sufficient cavity clearance before drilling. Prepare the specified hole, insert the anchor and set it using a compatible hollow wall anchor tool in accordance with the fixing instructions.
Ensure the anchor seats securely without crushing the board. Select the fixing arrangement to suit the item being attached and the substrate.
Ordering
Select the required anchor size and pack quantity from the available options before adding to your basket.
