M8 Metric Masonry Shield Anchor Studs with Nuts

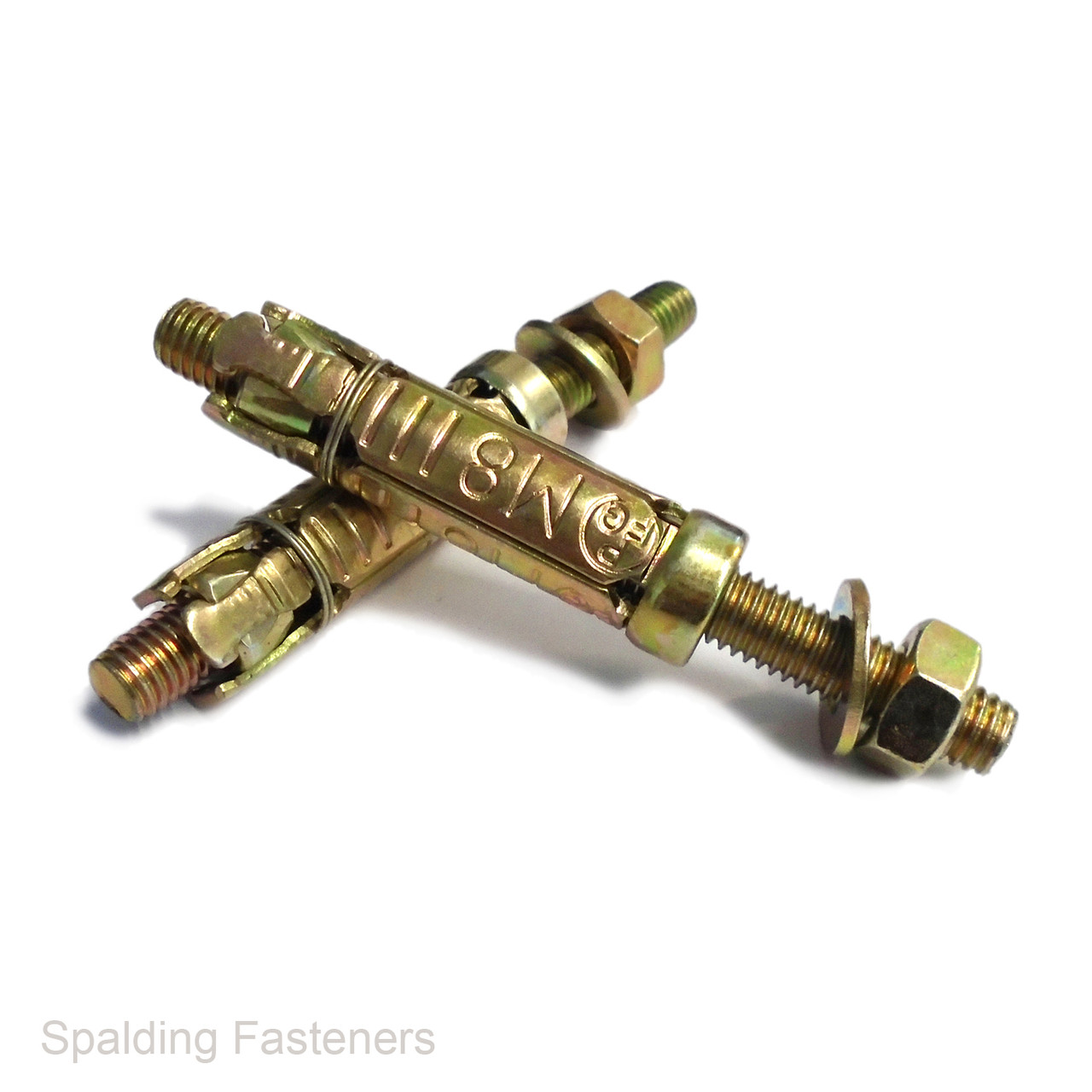

These M8 masonry shield anchor studs provide a projecting threaded fixing for attaching brackets, fittings and equipment to suitable masonry and concrete. Each assembly includes an expansion shield, threaded stud and nut.
The four-way expansion shield expands as the nut is tightened, securing the anchor within the prepared hole. The projecting stud allows the fixture to be positioned over the anchor and secured with the supplied nut.
Technical Specifications
| Anchor Type | Shield anchor with projecting stud |
|---|---|
| Thread Size | M8 |
| Finish | Yellow passivated |
| Expansion Mechanism | Four-way expansion shield |
| Setting Method | Torque-controlled expansion by tightening the nut |
| Base Material | Suitable masonry and concrete |
| Drill Hole Diameter | 14 mm |
| Components Included | Shield, stud and nut |
Available Sizes
| Size | Listed Anchor Length | Drill Hole Diameter |
|---|---|---|
| M8 x 70 | 70 mm | 14 mm |
| M8 x 85 | 85 mm | 14 mm |
| M8 x 120 | 120 mm | 14 mm |
Selecting Your Shield Anchors
Select the required length and pack quantity from the available options. M8 describes the stud thread size; the required drill hole diameter is 14 mm.
Choose the anchor to suit the base material, fixture thickness and required loading. The listed anchor length is not the maximum fixture thickness or the required drilling depth.
Installation Guidance
Use the installation instructions for the supplied anchor to establish the required hole depth, embedment and tightening torque. Drill the specified hole, clean it thoroughly and install the anchor before securing the fixture.
Confirm the permitted load, edge distances and anchor spacing for the application before installation. Contact us if you need these details or confirmation of the maximum fixture thickness.
