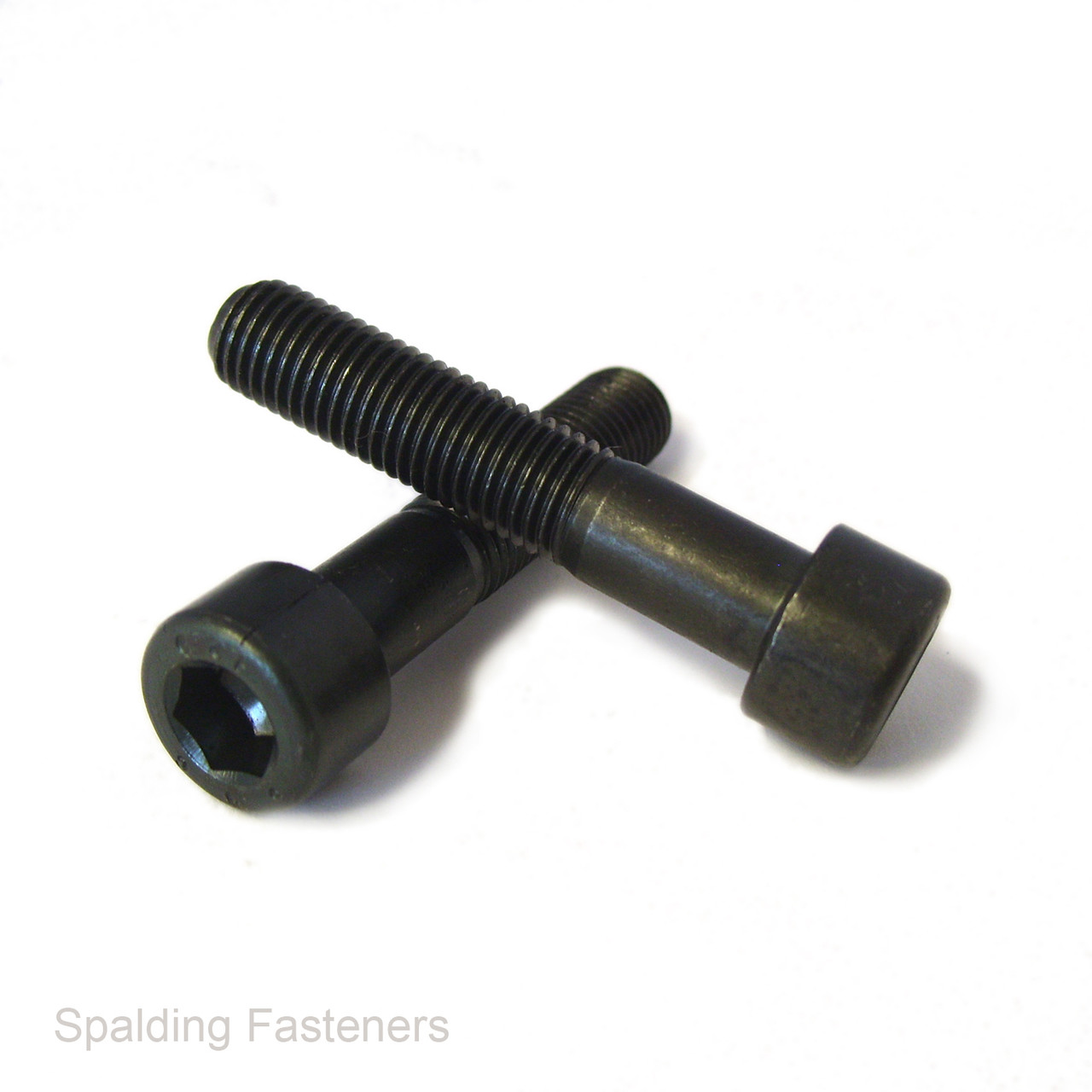

1/4" UNC High Tensile Self Colour Socket Cap Bolts – Part Threaded
1/4"-20 UNC socket cap bolts manufactured from heat treated high tensile alloy steel to ASTM A574, with a self colour finish. These part threaded bolts feature a plain shank beneath the head for assemblies requiring an unthreaded section through the joint.
The cylindrical socket cap head takes a 3/16" Allen key or hexagon driver bit. Suitable for machinery, tooling, equipment maintenance and mechanical assemblies specifying an imperial alloy steel socket cap fastener.
Specifications
| Thread size | 1/4"-20 UNC |
|---|---|
| Nominal diameter | 1/4" / 6.35mm |
| Thread type | Unified National Coarse, right hand |
| Threads per inch | 20 TPI |
| Material | Heat treated high tensile alloy steel |
| Material specification | ASTM A574 |
| Finish | Self colour |
| Thread coverage | Part threaded with a plain shank |
| Head style | Cylindrical socket cap head |
| Drive size | 3/16" hexagon socket / Allen key |
| Length measurement | Measured from beneath the head to the tip |
| Lengths and pack quantities | Select from the available product options |
Key Features
- Heat treated alloy steel to ASTM A574.
- 1/4"-20 UNC coarse imperial thread.
- Part threaded design with a plain shank.
- Socket cap head with a 3/16" internal hexagon drive.
- Self colour finish.
Typical Applications
Suitable for machine building, tooling, fixtures, brackets and equipment repairs where a 1/4" UNC high tensile socket cap bolt with a plain shank is specified.
Installation
Use a correctly fitting 3/16" Allen key or hexagon driver bit. Check that the selected bolt length and plain shank suit the joint thickness and provide sufficient thread engagement. For tapped blind holes, ensure the bolt cannot bottom out before the joint is clamped.
Apply a tightening torque appropriate to the fastener, mating material, lubrication and joint design. Self colour steel requires suitable protection when exposed to moisture.
Ordering
Select your required bolt length and pack quantity from the available options. Bolt length excludes the head. Check threaded and shank lengths where these are critical to the assembly.
Standards
- ASME B18.3 – imperial hexagon socket head cap screws.
- ASTM A574 – alloy steel socket head cap screws.
- ASME B1.1 – Unified inch screw threads.
