Product Description

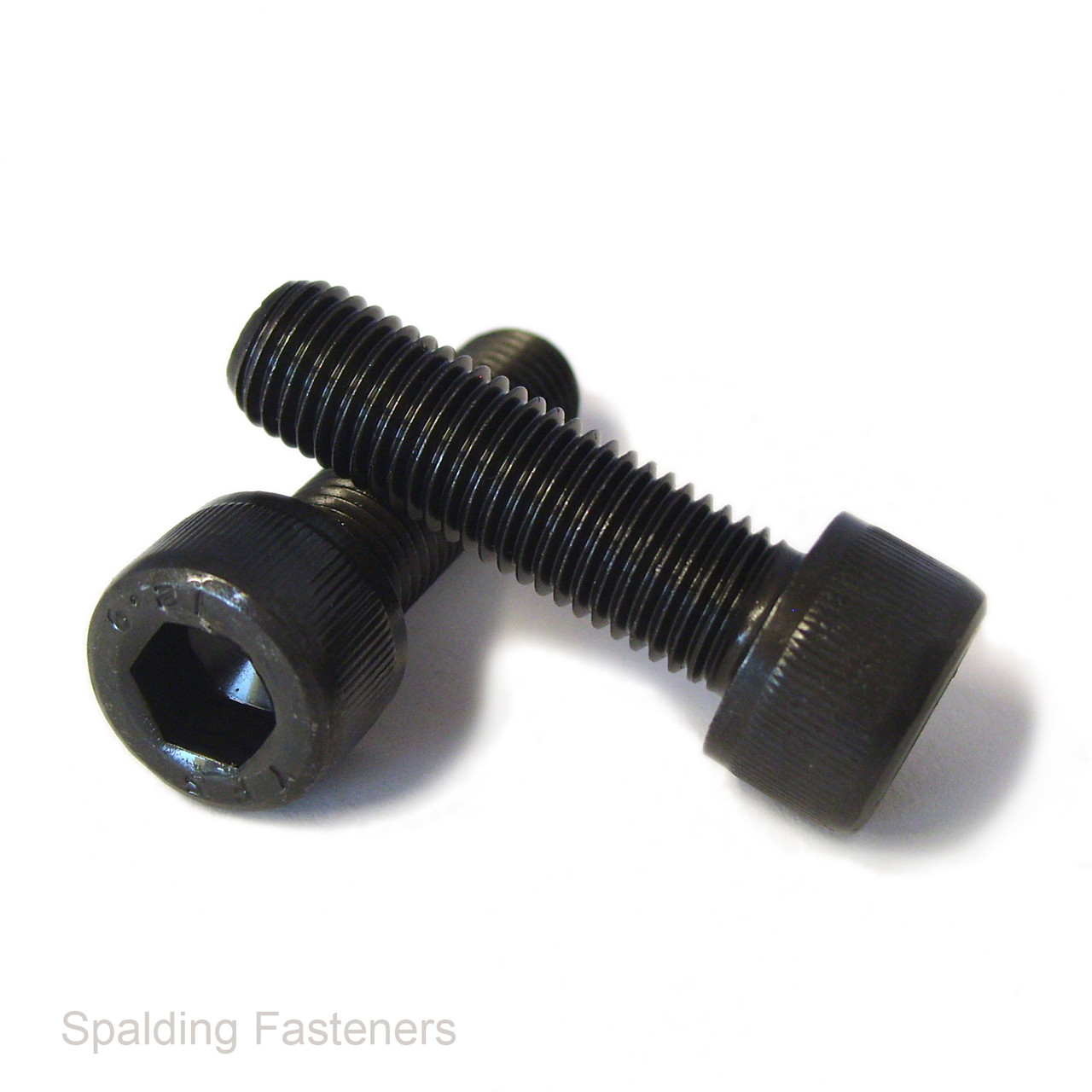

1/4" UNC High Tensile Self Colour Socket Cap Screws – Fully Threaded
1/4"-20 UNC fully threaded socket cap screws manufactured from heat treated high tensile alloy steel to ASTM A574, with a self colour finish. Suitable for machinery, tooling and mechanical assemblies requiring an imperial alloy steel socket cap fastener.
The cylindrical socket cap head takes a 3/16" Allen key or hexagon driver bit. The fully threaded design allows installation into a matching UNC tapped hole or use with a suitable nut.
Specifications
| Thread size | 1/4"-20 UNC |
|---|---|
| Nominal diameter | 1/4" / 6.35mm |
| Thread type | Unified National Coarse, right hand |
| Threads per inch | 20 TPI |
| Material | Heat treated high tensile alloy steel |
| Material specification | ASTM A574 |
| Finish | Self colour |
| Thread coverage | Fully threaded |
| Head style | Cylindrical socket cap head |
| Drive size | 3/16" hexagon socket / Allen key |
| Length measurement | Measured from beneath the head to the tip |
| Lengths and pack quantities | Select from the available product options |
Key Features
- Heat treated alloy steel to ASTM A574.
- Fully threaded 1/4"-20 UNC coarse imperial thread.
- Socket cap head with a 3/16" internal hexagon drive.
- Suitable for matching tapped holes or compatible nuts.
- Self colour finish.
Typical Applications
Suitable for machine building, tooling, fixtures, brackets and equipment maintenance where a fully threaded 1/4" UNC high tensile socket cap screw is specified.
Installation
Use a correctly fitting 3/16" Allen key or hexagon driver bit. Ensure sufficient thread engagement and check that the screw cannot bottom out in a blind hole before the joint is clamped.
Apply a tightening torque appropriate to the fastener, mating material, lubrication and joint design. Self colour steel requires suitable protection when exposed to moisture.
Ordering
Select your required screw length and pack quantity from the available options. Screw length excludes the head height.
Standards
- ASME B18.3 – imperial hexagon socket head cap screw pattern.
- ASTM A574 – alloy steel socket head cap screws.
- ASME B1.1 – Unified inch screw threads.
