M18 Class 12.9 Self Colour Socket Cap Bolts – Part Threaded DIN 912

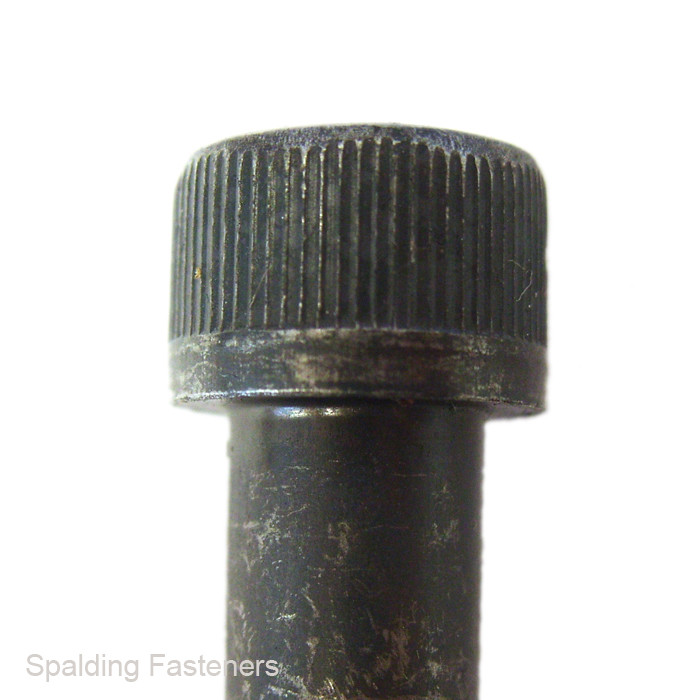

These M18 socket cap bolts are manufactured from class 12.9 high tensile steel with a self colour finish. Their part threaded construction provides a plain shank beneath the cylindrical head for assemblies requiring an unthreaded section through the components being joined.
The M18 x 2.5mm metric coarse thread fits matching nuts and tapped holes. An internal hexagon socket takes a 14mm Allen key or hex driver.
Specifications
| Product type | Socket head cap bolt |
|---|---|
| Material | High tensile steel |
| Property class | 12.9 |
| Finish | Self colour, without zinc plating |
| Nominal thread diameter | M18 |
| Thread pitch | 2.5mm – metric coarse |
| Thread coverage | Part threaded, with a plain shank |
| Head style | Cylindrical socket cap head |
| Drive size | 14mm internal hexagon |
| Nominal head diameter | 27mm |
| Head height | 18mm maximum |
| Length measurement | Measured from beneath the head to the end of the bolt |
Listed Length and Shank Dimensions
| Thread Size | Under-Head Length | Thread Length Guide | Plain Shank Length Guide |
|---|---|---|---|
| M18 x 2.5mm | 150mm | 50mm | 100mm |
Dimensions are provided as a guide. Thread runout and manufacturing tolerances apply. Check the actual thread length and plain shank length where these are critical to the assembly. Allow clearance for any head knurling.
Key Features
- Class 12.9 high tensile steel construction.
- Part threaded design with a plain shank.
- M18 x 2.5mm metric coarse thread.
- 14mm internal hexagon drive.
- DIN 912 / ISO 4762 socket cap head pattern.
Typical Applications
Suitable for machinery, tooling, fixtures and engineering assemblies specifying M18 class 12.9 socket cap bolts with a plain shank.
Installation
Use compatible nuts of an appropriate property class or a suitable tapped hole. Ensure sufficient thread engagement and position the plain shank as required by the joint design. Fully engage the 14mm hex driver and tighten to the equipment manufacturer's specification.
Ordering
Select the required length and pack quantity from the available options. The listed dimensional guide covers the 150mm bolt. Bolt length excludes the head.
Standards
- DIN 912 / ISO 4762 – hexagon socket head cap screw dimensional pattern.
- ISO 898-1 – mechanical properties of steel fasteners, property class 12.9.
