Product Description

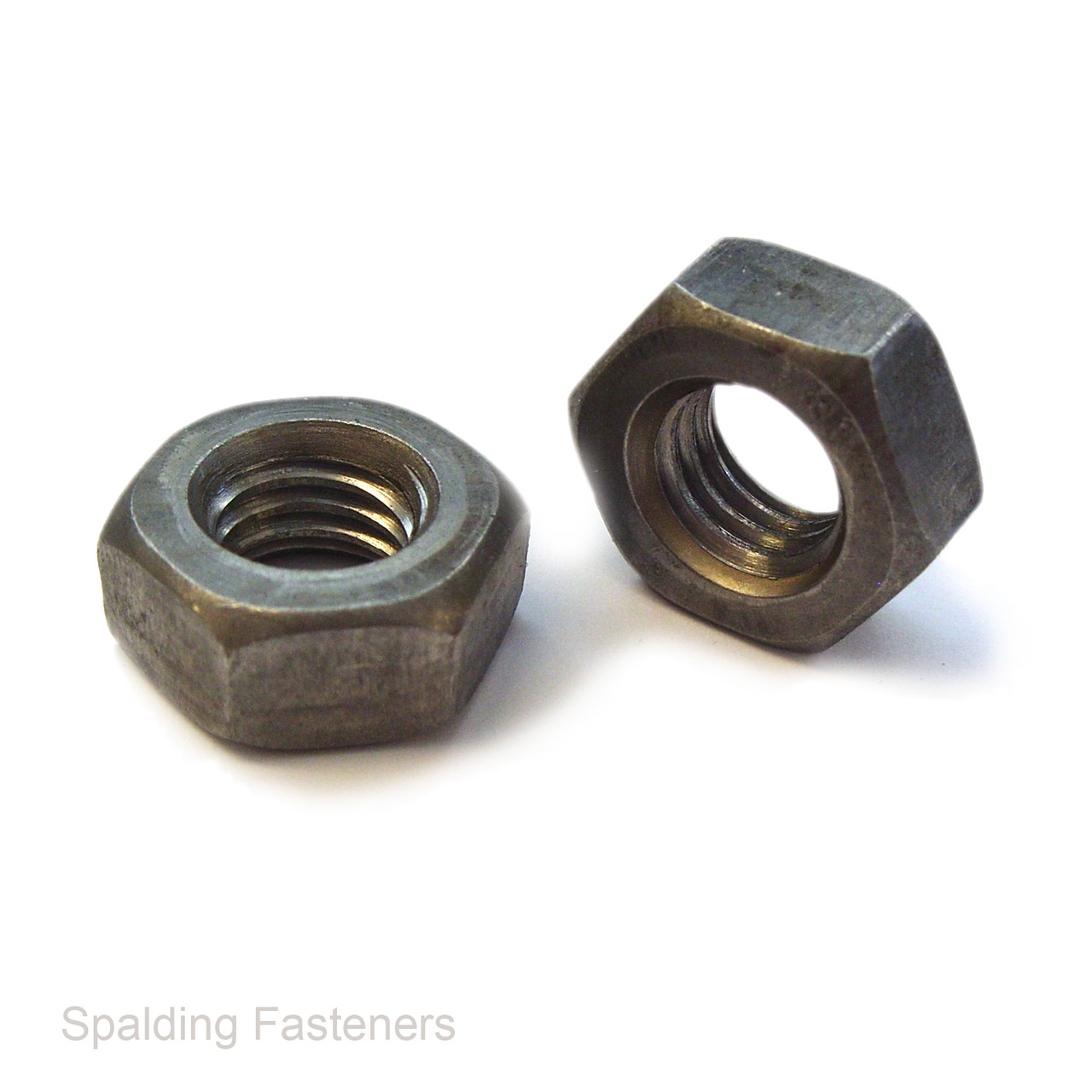

Metric Fine Pitch Class 10 Hexagon Full Nuts – Plain High Tensile Steel
Class 10 high tensile steel hexagon full nuts with metric fine pitch threads and a plain, unplated finish. Designed for use with matching fine-thread bolts, set screws, studs and threaded rod.
These full nuts have a conventional external hexagon for tightening with a suitable spanner or socket. Check both the thread diameter and pitch when ordering, as fine-thread nuts will not fit a standard coarse-thread bolt of the same diameter.
Specifications
| Product type | Hexagon full nut |
|---|---|
| Material | High tensile steel |
| Property class | 10 |
| Finish | Plain, unplated steel / self colour |
| Thread type | Metric fine pitch, right-hand |
| Drive | External hexagon |
| Locking feature | Plain nut without a prevailing-torque locking feature |
Available Thread Sizes
| Nominal Thread Diameter | Thread Pitch (mm) |
|---|---|
| M8 | 1.00 |
| M10 | 1.25 |
| M12 | 1.25 |
| M12 | 1.50 |
| M14 | 1.50 |
| M16 | 1.50 |
| M20 | 1.50 |
| M24 | 2.00 |
Sizes refer to the nominal thread diameter, not the spanner size. M12 nuts are available in two different fine pitches; select the pitch that matches your mating thread.
Key Features
- Class 10 high tensile steel construction.
- Metric fine pitch threads.
- Full hexagon nut profile.
- Plain, unplated steel finish.
- Suitable for matching fine-thread bolts, studs and threaded rod.
Typical Applications
- Machinery and equipment assembly.
- Engineering maintenance and repairs.
- Fine-thread studs and bolted joints.
- Replacement nuts where Class 10 and the specified fine pitch are required.
Installation
Confirm the diameter and pitch before fitting. Start the nut by hand to check thread compatibility, then tighten with a suitable spanner or socket to the torque specified for the assembly. Use the corrosion protection and locking method required by the application.
Ordering
Select the required thread diameter, pitch and pack quantity from the available options before adding to your basket.
